This product is discontinued and no longer available.
ProfiConnector Plug – Cage Clamp

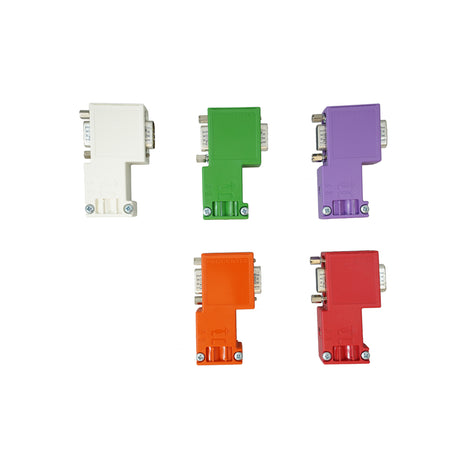

ProfiConnector Plug Cage Clamp Colors Image
ProfiConnector Plug Cage Clamp Image
ProfiConnector Plug Cage Clamp Inside Image
ProfiConnector Plug – Cage Clamp
Product Images
ProfiConnector Plug – Cage Clamp
SKU: GC-PB-CON-PC-C-O
MPN: PC-C/O
Manufacturer: Procentec
We Have You Covered
Product Information
Product Description
The ProfiConnector can be used for a quick and easy way of idenifying PROFIBUS networks, or segments within a network, by using a unique color for each network or segment. Using a color coded system can help speed up troubleshooting when drawings aren’t available or are out of date.
This connector has cage clamps for the connection of the A and B wires and is available in five colors: white, red, green, orange and purple.
The ProfiConnector is perfect for industrial environments with IP20 dust protection, and can withstand harsh conditions with a shock and UV resistant case, as well as built in shield connection clips for strain relief on both the incoming and outgoing cables. The connector is also designed with an indentation to fit easily onto its connected devices in addition to an easily accessible termination switch.
Features
- Cage Clamps
- DB9 Connector
- Maximum Baudrate : 12 Mbps
- Ingress Protection : IP 20
- Termination : Integrated and Switchable
- Available in multiple colors
- Supply voltage for termination : 4.75 - 5.25 VDC
- Dust protection cap (removable)
- Shield connection clips
- Fitted with Pozi-Drive screws
Documents and Drivers
Documentation
ProfiConnector_User-Manual
ProfiConnector Datasheet
Specifications
Baud Rate
12 Mbps
Connector(s)
DB9 Connector
Dimensions
Cable Dimensions
- Diameter cable : 8.0 mm
- Length shield : 7.5 mm
- Length Wires : 10.0 mm
- Length conductors : 5.0 mm
MPN
PC-C
Power Supply
4.75 - 5.25 VDC
Product Weight
1.4 oz (0.09 lbs)
Security/Protection
IP 20
Switch Option
Integrated Termination Switch
Temperature Range
-25°C to +70°C (-13°F to +158°F)
Termination
Integrated and Switchable
