This product is discontinued and no longer available.
ProfiConnector Plug – Cage Clamp + PG
ProfiConnector Colors Available Image
ProfiConnector Plug Cage Clamp & PG Front Image
ProfiConnector Plug Cage Clamp & PG Internal Image

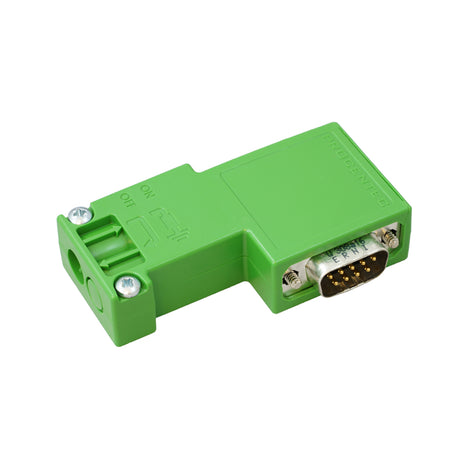

ProfiConnector Plug Cage Clamp & PG Back Image
ProfiConnector Plug – Cage Clamp + PG
Product Images
ProfiConnector Plug – Cage Clamp + PG
SKU: GC-PB-CON-PC-C-PG-G
MPN: PC-C-PG/G
Manufacturer: Procentec
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description

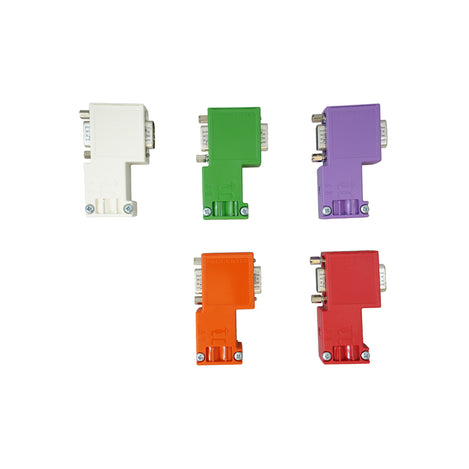

The ProfiConnector Plug is available in multiple colors to help identify PROFIBUS networks, or segments within a network, by using a unique color for each network or segment. PROFIBUS connectors come in five colors: white, red, green, orange and purple.
This connector has cage clamps for the connection of the A and B wires, as well as a PG (“piggy-back”) connector. PG connectors are convenient for connecting troubleshooting devices such as ProfiTrace 2.
The ProfiConnector Plug works well in industrial environments and is able to withstand harsh conditions. Its 90° angle connections allow for easier accessibility while its IP20 dust protection, and shock and UV resistant case help protect the device for any environment. The connector is also designed with a convenient notch to fit easily onto its connected device, as well as shield connection clips and built in strain relief for both the incoming and outgoing cables.
Features
- Cage Clamps
- PG Connector
- Screw terminals : 2.5mm
- Maximum Baudrate : 12 Mbps
- Ingress Protection : IP 20
- Termination : Integrated and Switchable
- Available in multiple colors
- Supply voltage for termination : 4.75 - 5.25 VDC
- Dust protection cap (removable)
- Shield connection clips
- Fitted with Pozi-Drive screws
Documents and Drivers
Documentation
ProfiConnector_User-Manual
ProfiConnector Datasheet
Specifications
Baud Rate
12 Mbps
Connector(s)
PG Connector
Dimensions
Cable Dimensions
- Diameter cable : 8.0 mm
- Length shield : 7.5 mm
- Length Wires : 10.0 mm
- Length conductors : 5.0 mm
MPN
PC-C-PG
Power Supply
4.75 - 5.25 VDC
Product Weight
1.4 oz (0.09 lbs)
Security/Protection
IP 20
Switch Option
Integrated Termination Switch
Temperature Range
-25°C to +70°C (-13°F to +158°F)
Termination
Integrated and Switchable
