This product is discontinued and no longer available.
ProfiConnector Plug – Screw Terminal
ProfiConnector Plug Screw Colors Image

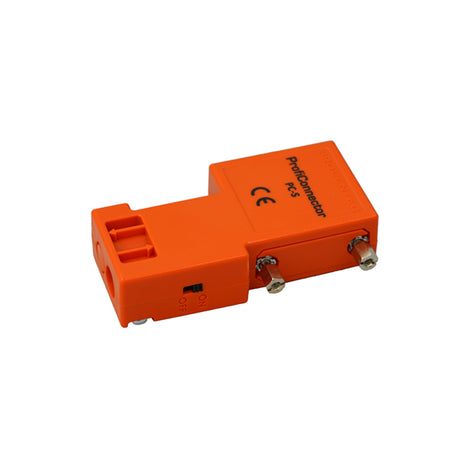

ProfiConnector Plug Screw Image

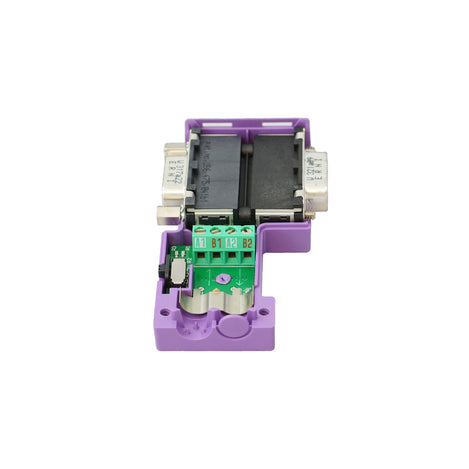

ProfiConnector Plug Screw Inside Image
ProfiConnector Plug – Screw Terminal
Product Images
ProfiConnector Plug – Screw Terminal
SKU: GC-PB-CON-PC-S-O
MPN: PC-S/O
Manufacturer: Procentec
We Have You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The multi-colored ProfiConnector Plug provides a way of identifying PROFIBUS networks, or segments within a network, by using a unique color for each network or segment. These PROFIBUS connectors come in five colors: white, red, green, orange and purple. When opening a cabinet or enclosure, the color of the connector on a device can be used to quickly identify to which network or segment the device belongs. This helps speed up troubleshooting when drawings aren’t available or are out of date.
This connector comes with a screw terminal for the connection of the A and B wires and no PG connectors.
The ProfiConnector is great for industrial environments. It is able to withstand harsh conditions with an IP20 rating, and is shock and UV resistant. Its 90° angle connection allows for use in tight spaces, and an indentation in the connector fits nicely against its connected device. The connector also has built in strain relief for both the incoming and outgoing cables in addition to shield connection clips.
Features
- Screw terminals : 2.5mm
- Maximum Baudrate : 12 Mbps
- Ingress Protection : IP 20
- Termination : Integrated and Switchable
- Available in multiple colors
- Supply voltage for termination : 4.75 - 5.25 VDC
- Dust protection cap (removable)
- Shield connection clips
- Fitted with Pozi-Drive screws
Documents and Drivers
Documentation
ProfiConnector User Manual
ProfiConnector Datasheet
Specifications
Baud Rate
12 Mbps
Dimensions
Cable Dimensions
- Diameter cable : 8.0 mm
- Length shield : 7.5 mm
- Length Wires : 10.0 mm
- Length conductors : 5.0 mm
MPN
PC-S
Power Supply
4.75 - 5.25 VDC
Product Weight
1.4 oz (0.09 lbs)
Security/Protection
IP 20
Switch Option
Integrated Termination Switch
Temperature Range
-25°C to +70°C (-13°F to +158°F)
Termination
Integrated and Switchable
