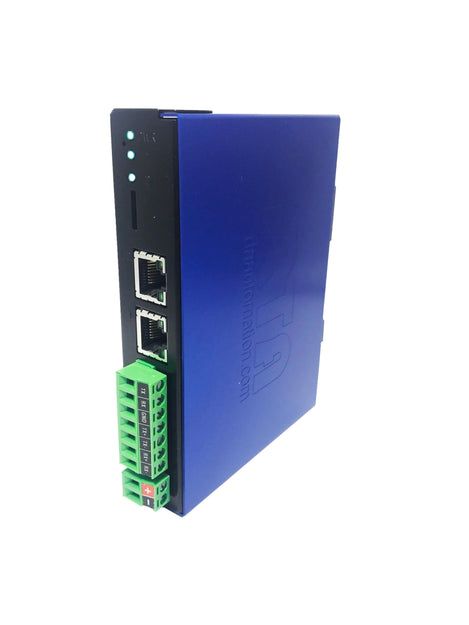

PROFINET IO to MQTT / Cloud Gateway

$1,019.56

Leave a review

SKU: GC-RTA-460PSQT-N2E-D

MPN: 460PSQT-N2E-D

Manufacturer: Real Time Automation

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Made in the USAEasily and securely bridge a PROFINET Controller to MQTT. The 460PSQT moves data between a PROFINET controller and an MQTT application, AWS or Azure. Use the data to easily log data, build a dashboard or create a sophisticated alarm system.

PROFINET IO data is mapped directly to and from topics in an MQTT broker. That gateway will act as a standard PROFINET IO device to your PLC. SSL transport layer security protects the data moving from your operations network to the cloud.

Gateway Security: You can configure a user with access to diagnostic and configuration screens.

Status and Counters: Protocol-specific status, counters and error messages are accessible within the gateway's diagnostics page.

Diagnostic Logging Page: Allows users to see and log start up sequences, protocol-specific messages and error messages.

Features

  • Fully configurable PROFINET device
  • Supports up to 1280bytes of data in each direction on PROFINET IO
  • Bring your factory data to the cloud
  • Support for MQTT, AWS and Azure
  • Effortless Browser Based Configuration, no programming software is required
  • Simple data translation allows you to manipulate data as it passes between protocols

Documents and Drivers

Documentation

PROFINET IO to MQTT / Cloud Gateway Datasheet

PROFINET IO to MQTT / Cloud Gateway User Guide

Specifications

Certifications

UL, C/UL, RoHS Compliance, Class1Div2

Communication

Serial Communication

  • Port 0: 7 Pin Terminal Block
  • Modes Available: RS-232, RS-485, RS-422

Limits

  • 1x RS-232
  • 1x RS-485
  • 1x RS-422

Ethernet Communication

  • 2 Ethernet Ports
  • Speed / Link Available
  • Ethernet Link: Auto-Negotiate, 10 Mbps; Half-Duplex, 10 Mbps; Full-Duplex, 100 Mbps; Half-Duplex, 100 Mbps; Full-Duplex

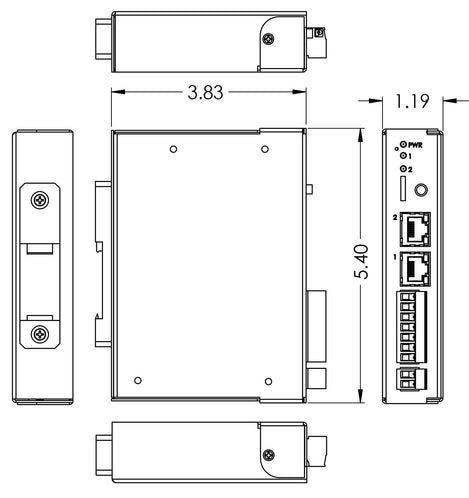

Dimensions

5.40” x 3.83” x 1.19”

Enclosure

Anodized Aluminum

Indicators LED

1 Power LED, 2 Application LEDs

Mounting

Din rail or panel mount

Power

Two Pin Terminal Block

Temperature Range

-40°C to +80°C (-40°F to +176°F)

Voltage

12-24 VDC

Weight

7.6 oz (.48 lbs)
