ProfiSwitch X5


Leave a review


MPN: 17030X

Manufacturer: Procentec

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

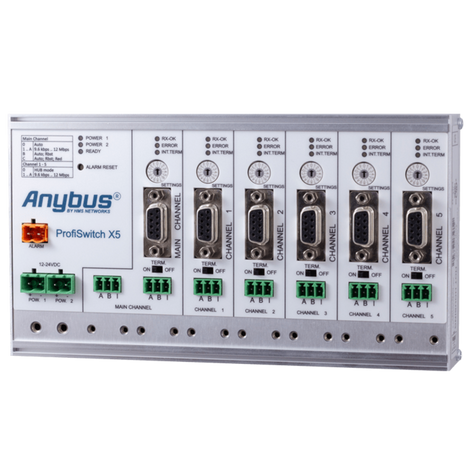

The ProfiSwitch X5 is a multiple baud rate, multi-channel PROFIBUS Repeater with 5 channels. This device is a powerful package that ensures reduced installation complexity, increased time utilization, and better deployment of project resources. Having 5 channels of communication on 1 unit requires less repeaters and connectors to purchase. Quick connection of channels, auto baud rate detection, and unit termination reduces installation time and costs. Better maintenance control is obtained by spur line isolation, DB9 and pin connectors for operational troubleshooting and maintenance measurements, and notification capabilities of failure.

ProfiSwitch X5 channel overview: 500kbps, 400m; 1.5Mbps, 200m; 93.75kbps, 1000m; 1.5Mbps, 200m - any baudrate with any busparameter

When network designs require optimal speeds, the X5 ProfiSwitch will operate with multiple baud rates on 1 PLC without any special programming. This capability solves some legacy system issues which occur from numerous project upgrades. Wireless systems can also be connected without sacrificing speed of the communication on the rest of the network.

Adding to legacy systems no longer require creating a separate network. Just install the ProfiSwitch X5 as a spur line extender. Monitoring is done with the utilization of a ProfiTrace PROFIBUS testing unit on a DB9 connector located on the X5.


  • Hot slave insertion/removal during operation
  • Short circuit protection on each channel
  • Compact and robust construction
  • Screw terminals and DB9 connectors can be mixed
  • Conveniently arranged networks
  • Maintenance value with spur line isolation
  • Extendable installations
  • Topology flexibility
  • Cost Savings


  • Extend Network length without repeaters
  • Adding to Legacy Systems with baud rate limitations
  • Couple PA & wireless within 1 network
  • Eliminate none traditional cabling limitations
  • Isolate bad segment
  • Reduce EMC interference
  • Reduce resistance effects, i.e., lightning arrester
Application overview of the ProfiSwitch X5 with connection speeds for each port type


  • Transparent proxy to different baud rates
  • 6 galvanic isolated channels
  • Monitoring port per channel
  • In hub mode compatible to ProfiHub
  • Star, tree and bus structured networks
  • Configurable grounding system
  • Redundant power supply
  • Alarm contact
  • IP 20 classification

Documents and Drivers


ProfiSwitch Product Brief

ProfiSwitch User Manual

Det Norske Veritas (DNV) Certification


Baud Rate

9.6 Kbps to 12 Mbps

Cable Length

1200 m spur line length (depends on transmission speed)

Cascading Depth

No limit


  • CE, FCC, UL, EN55024, EN55022 + AC, EN 61000-4-2
  • EN 61000-4-3 +A1 + A2, EN 61000-4-4, EN 61000-4-6, 47 CFR 15


  • 5 galvanic Isolated channels
  • Maximum 31 devices per channel


DB9 and screw connectors


Input 24 VDC: 74mA


207 x 113 x 35 mm


IP20 (IEC 60529)

Indicators LED

  • Power, Ready
  • Each Channel: Communication, Error, Termination


  • Profibus
  • RS485


35 mm DIN-rail with a minimum width of 203 mm




Nominal power use: 1.78 W

Product Weight

600 g


Optional (channel 4 and 5)

Temperature Range

  • Storage & Operating: ‐25° to +70° C (-13° to 158°)
  • Ambient operating: ‐25° to +70° C (-13° to 158°)


Relative air humidity: 95%


Integrated and switchable


  • Operating: 12 to 24 VDC
  • Absolute Max Rated: 9 to 31 VDC
