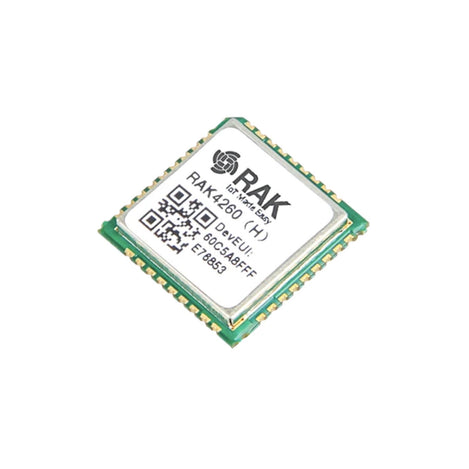

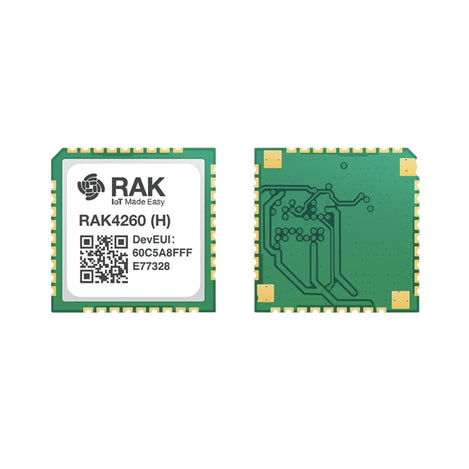

RAK4260 - LPWAN Module

$12.11

Leave a review

SKU: GC-RAK4260-US915

MPN: 316018

Manufacturer: RAKwireless Technology Co., Ltd.

Stock Status: In stock

Delivery: Ships same or next business day
Free shipping to the continental US on orders over $100

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The RAK4260 is a compact module with ATSAMR34J18B microchip and LoRaWAN technology. It includes a 32-bit ARM Cortex –MO+ MCU, 12-ADC, and a LoRa transceiver. The module allows for flexibility in applications with I2C/SPI/UART interfaces.

The RAK4260 is ideal of IoT solutions with low-power consumption and long distance transceiver in a small 15mm x 15mm package.

Features

  • Low-power consumption
  • High level accuracy and stability
  • Microchip ATSAMR34J18 SiP
  • LoRaWAN® 1.0.2
  • Multiple interfaces : I2C, SPI, ADC, UART, GPIOs

Documents and Drivers

Documentation

RAK4260 LPWAN Module

Specifications

Accuracy

  • 32MHz TXCO
  • Max Sensitivity (SF12 BW125kHz): -136dBm

CPU

Microchip ATSAMR34J18 SiP

Current

17mA (typical)

Dimensions

15mm x 15mm x 2.0mm

Interface(s)

I2C/ SPI/ ADC/ UART/ GPIO

Memory

256KB Flash, 40 KB RAM

MPN

RAK4260-US915

Power

Max Tx Power: 20dBm

Protocols

LoRaWAN® 1.0.2
