RAK4270 Breakout Board US915

$21.72

Leave a review

SKU: GC-RAK4270-Breakout-US915

MPN: 316003

Manufacturer: RAKwireless

Delivery: Ships within 7-14 business days
Shipping is Free on orders over $75

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

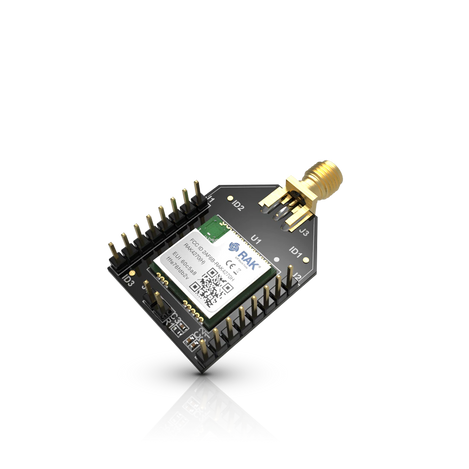

RAK4270 Breakout Board is a simple board specially designed to facilitate the external connection of RAK4270 pins. The main purpose is to access the pins of the stamp module over two (2) rows of 2.54 mm headers. Hence, it is convenient to debug the RAK4270 Breakout Board.

The RAK4270 LoRa Module includes an STM32L071 MCU and an SX1262 LoRa chip, which supports eight (8) spreading factors (SF5 ~ SF12) and signal bandwidth that can be adjusted between 7.8 kHz to 500 kHz.

It has Ultra-Low Power Consumption of 2.31 μA (down to 1.61 μA @ 2.0 V) in sleep mode, but during the Transmit mode, it can reach the maximum output power of 22 dBm. As a receiver, it can achieve a sensitivity of -148 dBm.

The module complies with the LoRaWAN 1.0.2 protocol, so it can be used for implementing LoRa networks or Lora point to point communications. The module is suitable for various applications that require long-range data acquisition and low power consumption, like smart meters, supply chain and logistics tracking, agricultural sensors, smart cities, etc.

This module is expected to be controlled by an external controller through its UART interface by sending a set of AT commands. These AT commands control not only the state of this module but also set the LoRaWan communication parameters and payloads.

Features

  • LoRa module for Smart City, Smart Agriculture, Smart Industry
  • I/O ports: UART/I2C/GPIO
  • Supported bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, and AS923-1/2/3/4
  • Low-Power Wireless Systems with 7.8 kHz to 500 kHz bandwidth
  • Ultra-Low Power Consumption of 2.31 μA (down to 1.61 μA @ 2.0 V) in sleep mode
  • Core: ARM 32-bit Cortex – M0+ with MPU
  • Up to 128 KB flash memory with ECC
  • 6 KB of data EEPROM with ECC

Documents and Drivers

Documentation

RAK4270 Breakout Board US915 Datasheet

Specifications

Current

Sleep Current: 1.61V - 2.31V

Frequency

US915

Memory

20 KB RAM

MPN

RAK4270-Breakout-US915

Temperature Range

-30°C to +85°C (-22°F to +185°F)

Voltage

Supply voltage: 2.0 ~ 3.6 V
