ATC-155 RS232 Extended Pair Line Booster - Up to 7 miles (12K meters)
RS232 Extended Pair

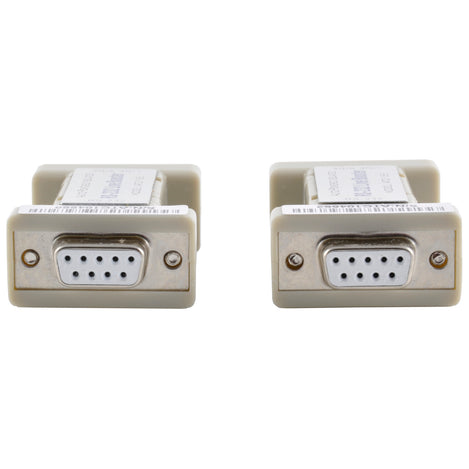

RS232 Extended Pair Serial End

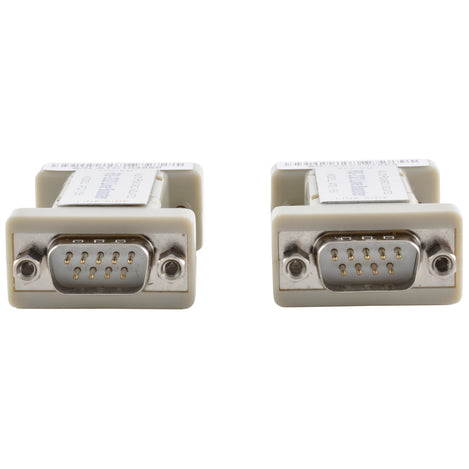

RS232 Extended Pair Serial Female End

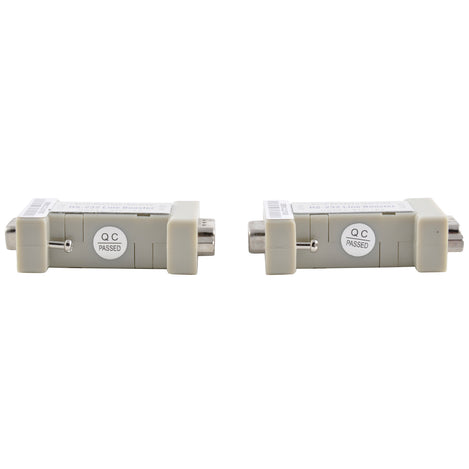

RS232 Extended Pair Side
ATC-155 RS232 Extended Pair Line Booster - Up to 7 miles (12K meters)
Product Images
ATC-155 RS232 Extended Pair Line Booster - Up to 7 miles (12K meters)
$19.90
SKU: GC-ATC-155
MPN: ATC-155
Manufacturer: ATC
Stock Status: In stock
We Have You Covered
Product Information
Product Description
Simple RS232 DB9 extender allows you to extend the standard 50 feet of RS232 up to 12,000 meters (about 7 miles).
The ATC-155 performs full-duplex transmission of asynchronous data over four wires (two twisted pairs). The data transmission between each line driver utilizes differential signaling that is immune to electrical interference and therefore makes it ideal for use in light manufacturing and industrial office areas. It can run up to speeds of 57.6 kbps
Features
- Extends communication distance of serial port RS232 to 12 kilometers (7 miles)
- Balances current transmission, powerful anti-jamming capacity
- Adopts photoelectric isolation to prevent devices damaged by ground loop and surge
- Isolation voltage up to 3500V
- Supports RS232 asynchronous communication standard
- No external power supply needed
- Full duplex or simplex mode
- Compact Size
Documents and Drivers
Documentation
ATC-155 User Manual
Specifications
Dimensions
68 x 34 x 16 mm
Interface(s)
Serial: DB9 full duplex
Isolation
3500V Optical Isolation
MPN
ATC-155
Power Supply
Port powered using TX,RX signals
Product Weight
40 g
Range
Up to 12 Kilometers
Serial Interfaces
374,373
Serial Types
372
Temperature Range
-25°C to +65°C (-13°F to +149°F)
Humidity
0% to 95%
