This product is discontinued and no longer available.
ATC-1000M - OEM Serial to Ethernet Embedded Module

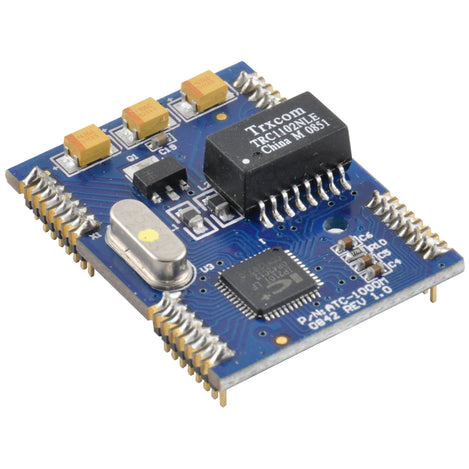

RS232 Module

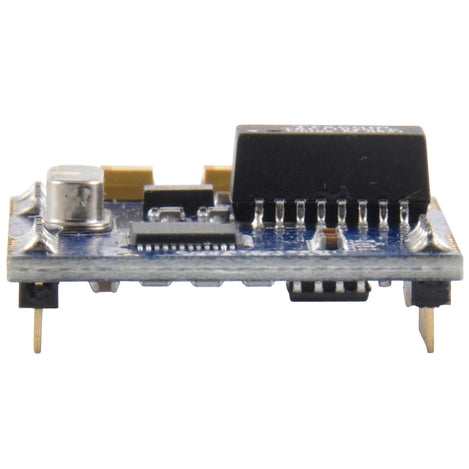

RS232 Module Front

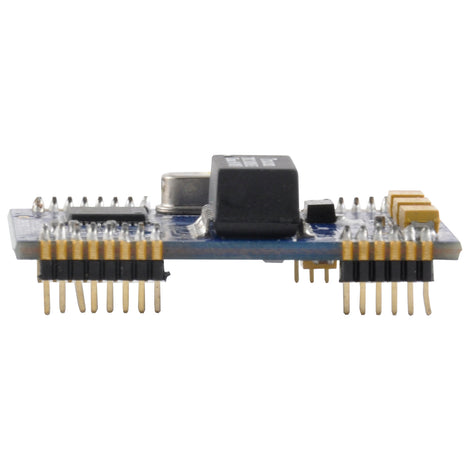

RS232 Module Side

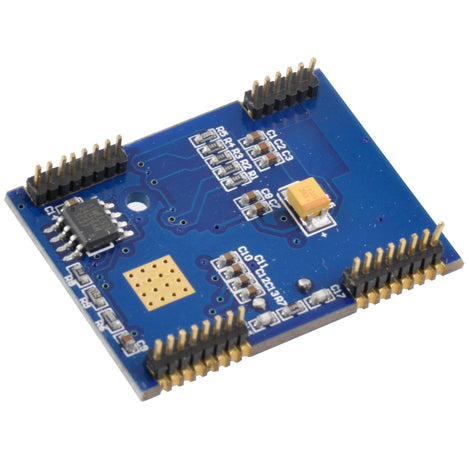

RS232 Module Bottom
ATC-1000M - OEM Serial to Ethernet Embedded Module
Product Images
ATC-1000M - OEM Serial to Ethernet Embedded Module
SKU: GC-ATC-1000M
MPN: ATC-1000M
Manufacturer: ATC
We Have You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The ATC-1000M adds Ethernet connectivity to RS232, RS422, and RS485 devices. This OEM serial module gives 10/100 Mbps Ethernet capabilities with serial data rates up to 230,400bps. It supports TCP/Server, TPC/Client and UDP Modes, and provides six TTL-Level programmable digital I/O. Device configuration can be performed via Web, Telnet or Serial Console. A Windows utility is included for device management.
Documents and Drivers
Documentation
ATC-1000M Datasheet
ATC-1000M User Manual
Downloads
ATC-1000M Tool Vcom for Windows
ATC-1000M CE Certificate
Specifications
Baud Rate
Serial: from 300 to 230,400 bps
Configuration Methods
- Web Console
- Telnet Console
- Serial Console
- Windows Utility
Data Bits
7 or 8
Dimensions
37 x 27 x 12 mm
Flow Control
None, RTS/CTS
Humidity
5% to 95% RH
Interface(s)
Network: 10/100 BaseT, auto-detect
IO Type
PIO0~PIO6 TTL Level Compatible
IP Addressing
DHCP, Static IP
MPN
ATC-1000M
Operation Modes
TCP/Server, TCP/Client, UDP Mode
Parity
odd, even, none
Pitch
1.27 mm
Power Consumption
350mA @ +3.3 VDC
Protocols
TCP/IP, UDP/IP, ARP, ICMP, HTTP, Telnet
Regulation
CE, FCC
Serial Types
RS232, RS485, RS422
Signals
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Stop Bits
1 or 2
Temperature Range
- Storage: -20°C to +85°C (-4°F to +185°F)
- Operating: 0°C to +70°C (32°F to +158°F)
Type
30-pin dual-inline drop-in module
