RS232 to RS422 - ATC-101

$18.69

5.0 stars 5.0 (2) See customer reviews

SKU: GC-ATC-101

MPN: ATC-101

Manufacturer: ATC

Stock Status: In stock

Delivery: Ships same or next business day
Shipping is Free on orders over $75

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

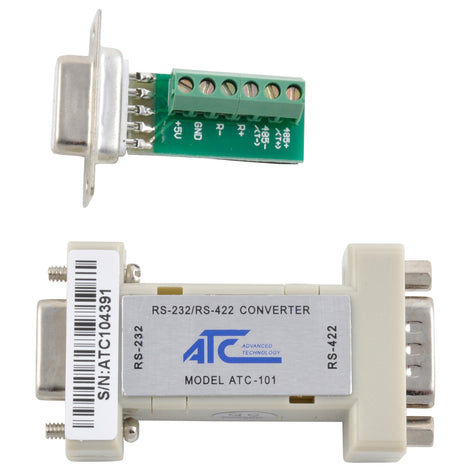

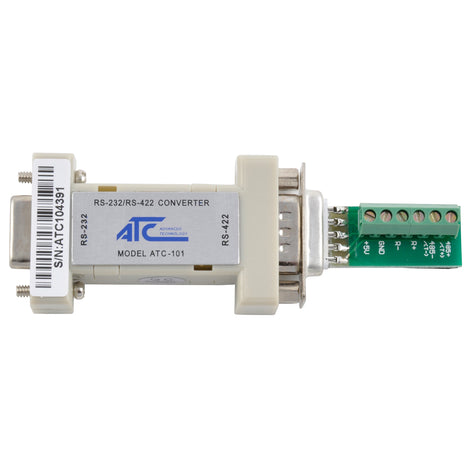

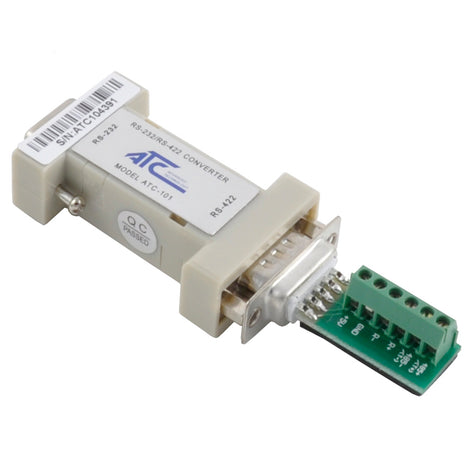

Simple RS232 to RS422 converter that is self powered using the TX, RX or RTS, CTS signals for power. The RS232 is a DB9 female connector, and the RS422 side is a DB9 male or 6 position terminal block.

Documents and Drivers

Documentation

ATC-101 User Manual View (PDF)

Specifications

BAUD RATE

up to 115 K

CONNECTOR(S)

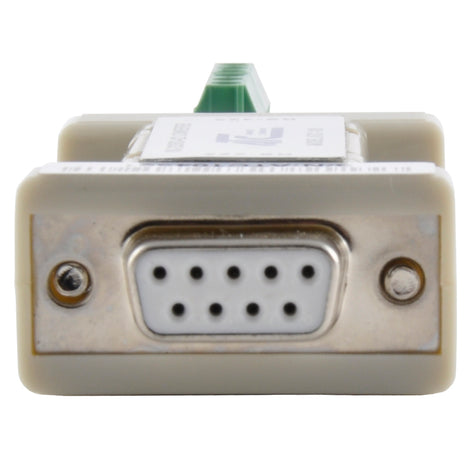

  • RS232: DB9 Female

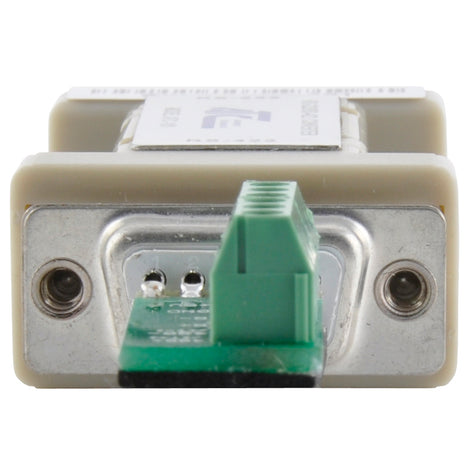

  • RS422: DB9 Male / 6 position terminal block

DIMENSIONS

88 x 33 x 17 mm

MPN

ATC-101

PRODUCT POWER SUPPLY

  • Self powered using TX,RX,RTS,CTS RS232 signals
  • Can be powered using +5VDC if RS232 is not strong enough

SERIAL INTERFACES

374,373,369

SERIAL TYPES

372,370

TEMPERATURE RANGE

  • Operating: -25°C to +85°C
  • Humidity: 5% to 95%

TRANSMISSION DISTANCE

0-1200 m @ 24 AWG
