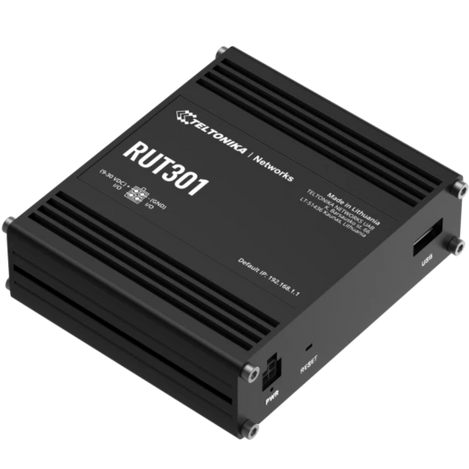

RUT301 - Industrial Ethernet Router

$80.00

Leave a review

SKU: GC-TELT-RUT301

MPN: RUT301000700

Manufacturer: Teltonika IOT Solutions Canada Ltd.

Delivery: Ships within 7-14 business days
Free shipping to the continental US on orders over $100

Product Information

Product Description

The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market by providing robust network connectivity with advanced security features. For easy compliance with industrial machinery, enterprise, or retail equipment, this Ethernet router has the following:

  • 5 Ethernet ports
  • 2 configurable digital I/Os
  • 1 USB 2.0 port

The RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.

Features

  • Interfaces - 5 x Ethernet ports (10/100 Mbps), Digital I/Os, and USB 2.0
  • RMS for remote management, access and VPN services
  • Security suite - pre-configured firewall and multiple VPN services
  • Durable industrial-grade design for withstanding harsh environments

Documents and Drivers

Documentation

RUT301 Flyer

RUT301 Datasheet

RUT301 Quick Start Guide

RUT301 User Manual

Specifications

HARDWARE

CPU

Mediatek, 580 Mhz, MIPS 24KEc

RAM

128MB, DDR2

FLASH storage

16MB serial NOR flash

Powering optio

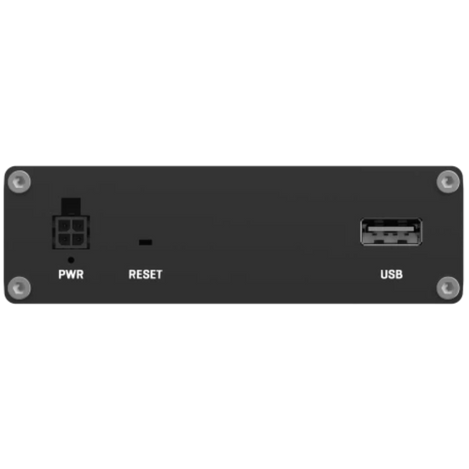

4-pin industrial DC power socket, 9 - 30 VDC

Ethernet

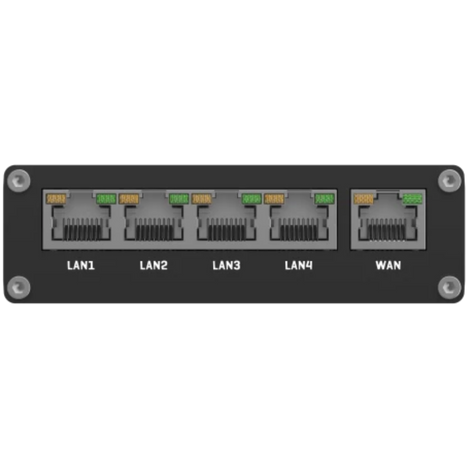

5 x RJ45 ports, 10/100Mbps

Inputs/Outputs

2 x Digital Input, 2 x Digital Output on 4-pin power connector

Other

1 x USB host

Status LEDs

1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED

Operating

-40°C ~ 75°C (-40°F ~ 167°F)

Enclosure

Aluminum housing

Dimensions (W x H x D)

100 x 30 x 85 mm (4.0 x 1.2 x 3.4 in)

Weight

233 g  (0.5 lbs)

SOFTWARE

Operating system

RutOS (OpenWrt based Linux OS)

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Firewall

Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI

VPN and tunneling

OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc

Monitoring and Management

WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS

Cloud solutions

RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity

Services

DDNS, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba)

Administration

Update FW from file, check FW on server, configuration profiles, configuration backup
