SD-WLD: 1 zone Water Leak Detector
SD-WLD: 1 zone Water Leak Detector
Product Images
SD-WLD: 1 zone Water Leak Detector: SD-WLD only
$224.20
SKU: GC-HWG-SD-WLD
MPN: 600696
Manufacturer: HW Group sro
Detector Option
-
$224.20
-
$299.80
We Have You Covered
Product Information
Product Description

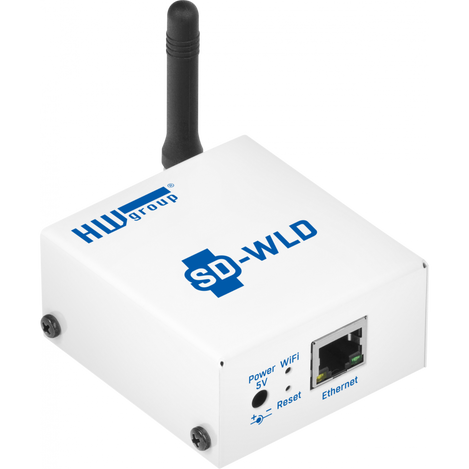

SD-WLD is a simple remote water leak monitoring unit designed for reliable Water Leak Detection (WLD) using a WLD Sensing cable. The industrial water leak sensor detects moisture along the entire length of the WLD sensing cable, ensuring early detection of potential leaks.
WLD Zone

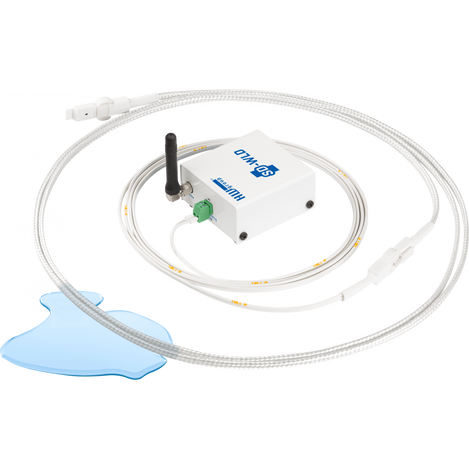

SD-WLD supports one WLD zone input and can connect one sensing cable of up to 185 m (this can be extended with a cost-effective prolong cable). The sensing cable detects as little as a few drops of conductive liquid along the entire cable length.
Configuration
SD-WLD features a built-in web server and WiFi connectivity, allowing seamless integration with remote monitoring solutions. A connection to to any SensDesk Technology portal and the SensDeskMobile app are required for all SMS / email alerts, PDF reports, and central device management.
The smart water leak alarm ensures early detection and instant alerts, helping prevent costly damage from unexpected leaks.
As part of HW Group's Monitoring Ecosystem (sensors + devices + SensDesk Technology portal), SD-WLD delivers long-term reliable alerts, graphs, PDF reports, open API, remote device management, and more.
Uses
The Water Leak Detection System from HW Group offers a remote water leak monitoring solution, that provides crucial protection from costly damage and downtime - especially useful for data centers, server rooms, and critical infrastructure
Order Summary
| SKU | Sensor Package | Package Content |
Manufacturer Part # (MPN) |
| GC-HWG-SD-WLD | SD-WLD Only |
|
600729 |

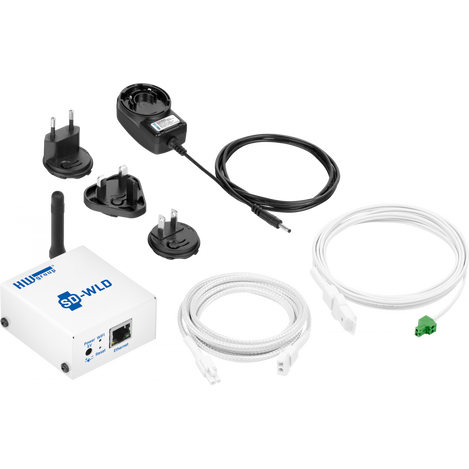

| GC-HWG-WLD2-POE-SET | SD-WLD Kit |
|
600729 |
Features
- Wired Ethernet as well as WiFi - 802.11 b/g/n (2.4GHz)
- Support for simultaneous Ethernet and WiFi operation (for easy setup)
- Embedded WEB server (WiFi setup)
- 5V or PoE power
- Simple installation, supports DHCP
- Security protected with a password
- Support for the SensDesk Technology portal
- Free portal (HWg-cloud) available with simple email alerting with kit option only
- One sensing zone detection input for WLD sensing cable (Type A)
Documents and Drivers
Specifications
DI - Dry Contact Inputs
Connector
Terminal Block
Type
Water (WLD sensing cable)
Sensor states
0 = OK, 1 = Flooded, 2 = Cable disconnected
Sensing cable length
Max. 60m in total (WLD sensing cable + prolong cable)
Cable extension
May be extended by AWG 24 cable
LED
1× green – flooded or cable disconnected
Power
Supply voltage
5VDC/120mA
Connector
Jack Ø3.5x1.35/10mm, RJ-45 PoE
Miscellaneous
Operating temperature
-10 to +80 °C (14°F ~ 176°F) for the device – sensors may support different operating ranges
Dimensions
67 x 31 x 69 mm (2.6 x 1.2 x 2.7 in)
Weight
151g (143g without antenna) / 0.37 lbs (0.32 lbs without antenna)
Electromagnetic radiation
CE/FCC Part 15, Class B
EMC
EN 55022, EN 55024, EN 61000
Ethernet
Interfaces
RJ45 (10/100BASE-T)
Supported protocols
IP: ARP, TCP/IP (HTTP, HWg-Push)
WiFI
Supported standards
802.11 b/g/n
Frequency
2,4 GHz
Output Power
- +19.55 dBm output power in 802.11 b mode
- +16 dBm for 802.115n
Security
WEP / WPA / WPA2 PSK / WPA2 TSK
Antenna
External, RPSMA
