sensorProbe2+ LCD (Basic Version)

$312.00

Leave a review

SKU: GC-AK-SP2-PLUS-B-LCD

MPN: SP2+B-LCD

Manufacturer: AKCP Co Ltd.

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

Product Information

Product Description

Efficiently monitor critical environments with the AKCP sensorProbe2+ LCD, ensuring real-time data visibility and system reliability.

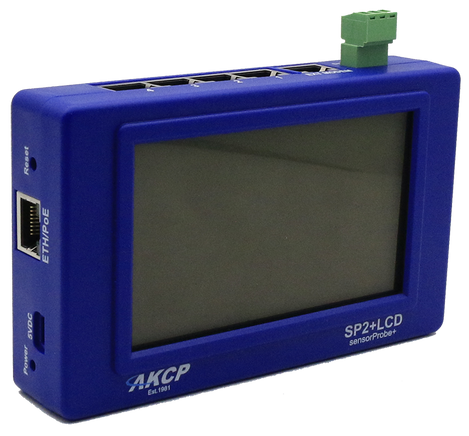

The AKCP sensorProbe2+ LCD – Basic Version offers reliable environmental monitoring with both visual and remote access options. Its integrated LCD screen provides real-time readouts for connected sensors, making it easy to verify conditions at a glance.

This version features four total AKCP sensor ports—two unlocked for any sensors and two locked for predefined types—providing expanded flexibility while maintaining device control. A built-in dry contact I/O further supports integration with auxiliary systems.

Designed for server rooms and single-rack installations, the unit delivers accurate monitoring of temperature, humidity, water presence, and more. Mounting is adaptable: install on the rack front or use a 45° bracket for top-of-rack viewing.

Plug-and-play setup with SNMP and web-based access ensures seamless integration with existing IT or industrial infrastructure. Power via 5VDC or PoE for deployment versatility across various environments.

Whether you’re upgrading legacy systems or deploying in new server configurations, this model delivers consistent performance and fast alert capabilities to protect your assets.


The SP2+LCD Basic comes with the Basic License. View the Comparison Guide to see the differences between the SP2+ Basic and Professional licenses.

Features

  • LCD Display: View real-time sensor data on-device
  • 4 Sensor Ports: Includes 2 unlocked and 2 locked AKCP sensor ports
  • Dry Contact I/O: Allows external equipment integration
  • Ideal for Server Racks: Perfect for rackmount use or top-rack bracket placement
  • Remote Access: SNMP and web interface support
  • Flexible Power: Supports both 5VDC adapter and PoE
  • Compact and Adaptable: Fits in tight server environments
  • Alert Capabilities: Real-time notifications via SNMP traps or email
  • Data Logging: Tracks conditions over time with graphing options


Documents and Drivers

Documentation

sensorProbe2+ LCD Datasheet

Specifications

Dimensions

135 x 81 x 36 mm (5.31 x 3.19 x 1.42in)

Humidity

 Min. 20% – Max. 80% (Non-Condensing)

Indicators LED

  • LCD display for sensor values, status and IP address
  • LED indication for Power
  • LED for network connectivity
  • LED for sensor online and threshold status

Input(s)

  • 4x RJ-45 Sensor Ports (SP2+) - 2 locked, 2 unlocked
  • 1x 10/100 Ethernet Port
  • 1x UART external modem port

Interface(s)

Network:

  • Standard 10/100 Mbps Full Duplex
  • Ethernet RJ-45 Port

MTBF

1,400,000 Hours based on field experience with sensorProbe units.

Mounting

  • 0U rack-mountable
  • Built in DIN rail mounting clip
  • Screw hole mounting

Output(s)

Configurable output signals (0VDC/5VDC) on any of the 4 RJ-45 sensor ports

Power

Requirements:

  • PoE IEEE 802.3af support
  • External 5.5V 3A Power Adapter
  • Input Voltage and Current ratings : 100V~240V - 0.22A

Protocols

  • Rsyslog
  • MQTT / MQTTS
  • SNMP V1/2
  • TACACS
  • HTTPS
  • Encrypted E-mail

Product Weight

0.4 Kg (.88 Lbs)

Temperature Range

-35°C to +80°C (-31°F to +176°F)
