Single Wire CAN Bus Converter (PCAN-AU5790)
Single Wire CAN Bus Converter (PCAN-AU5790)
Product Images

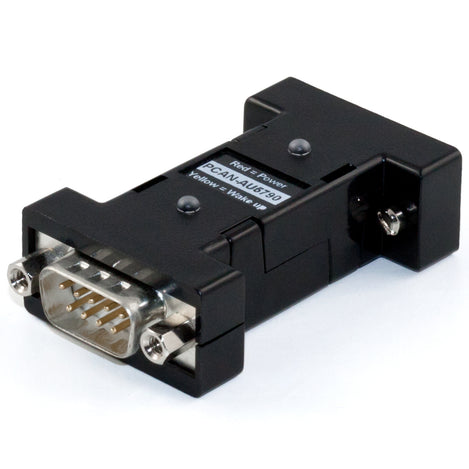

Single Wire CAN Bus Converter (PCAN-AU5790)
$144.00
4.0 stars 4.0 (1) See customer reviews
SKU: GC-CAN-AU5790
MPN: IPEH-002040
Manufacturer: Peak System Technik
Stock Status: In stock
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The AU5790 CAN High Speed to Single Wire bus converter (Peak PCAN-AU5790 IPEH-002040) provides a connection between a standard High-speed CAN bus (ISO 11898-2) and a Single-wire CAN bus (SAE J2411). A common application for this bus converter is to use in with our CAN-USB Adapter to communicate on a Single-wire CAN bus.
Features
- Philips AU5790 Transceiver (others available on request)
- Adapter features a plastic housing
- Transfer rates up to 125k Baud
- Operating modes can be switched for the Single-wire CAN side via a sliding switch.
- Operating mode LED
Documents and Drivers
Documentation
PCAN-AU5790 User Manual
Downloads
PEAK-System PCAN Download Support
Specifications
Data Rate
Three operating modes are available for the Single-wire CAN side via a sliding switch. Normal mode(33.3 kbit/s), High-speed mode (83.3 kbit/s) and Wake-up mode.
Indicators LED
Power supply (red), wake-up signals (yellow)
MPN
IPEH-002040
Power Supply
If the power supply has a lower current output than 150 mA, you may use an additional 12-Volt supply via the Single-wire CAN connector. Pin 3 is Ground, Pin 5 is CAN, Pin 6 is Ground and Pin 9 is Vbat. The other pins are not connected.
Temperature Range
Operating temperature: 0 to 70 °C (32 to 158 °F)
Transceiver
Philips AU5790
