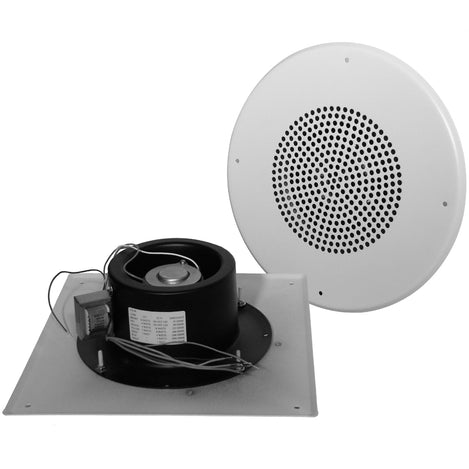

The SPKR-6HVP-T is a square (round and square pictured) loudspeaker assembly with double re-entrant horn, compression type loudspeaker, 25 and 70.7V universal transformer, 16 gauge steel baffle and #8 x 32 ‘pin-in-hex’ hardware. The finish is white baked epoxy hybrid.
Comes with a Backbox for easy installation.
Outdoor, indoor environment, vertical or horizontal surface mount.
|Add an xport||0|
|Audio connection||7" color-coded pigtails, pre-cut|
|Average sensitivity||110 dB SPL, 1W/ 1M|
|Calculated output||121 dB SPL, 16W/ 1M|
|Frequency response||350 - 10 kHz|
|Loudspeaker power rating||16W RMS, EIA 426A Standard|
|Nominal coverage angle||90° Included Angle, -6 dB / 2 kHz, Half space|
|Speaker sizetype||Compression, re-entrant horn|
