SPKR-7DT Indoor/Outdoor 4 inch Frame Loudspeaker - 8 Ohm

SPKR-7DT Indoor/Outdoor 4 inch Frame Loudspeaker - 8 Ohm
Product Images
SPKR-7DT Indoor/Outdoor 4 inch Frame Loudspeaker - 8 Ohm
SKU: GC-IPIC-SPKR-7DT
MPN: SYSTEM 7DT
Manufacturer: Quam-Nichols Co
We Have You Covered
Product Information
Product Description

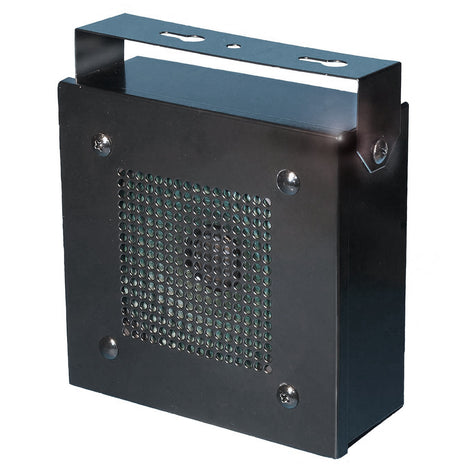

The SPKR-7DT is a complete loudspeaker assembly, with 4" frame loudspeaker - 8 Ohm operation and steel enclosure. The finish is black baked epoxy hybrid. It can be used in an indoor or protected outdoor environment such as a drive-thru menu board and vertical surface mount applications.
The SPKR-7DT is an ideal speaker for use with the IP7-FX.
Specifications
Audio Connection
15" color-coded pigtails, pre-cut
Average Sensitivity
91 dB SPL, 1W/ 1M
Calculated Output
98 dB SPL, 4W/ 1M
Frequency Response
130 Hz - 9 kHz EIA 462A Standard
Loudspeaker Power Rating
10W RMS, EIA 426A Standard
MPN
SYSTEM7DT
Nominal Coverage Angle
90° Included Angle, -6 dB / 2 kHz, Half space
Speaker Sizetype
4" frame
