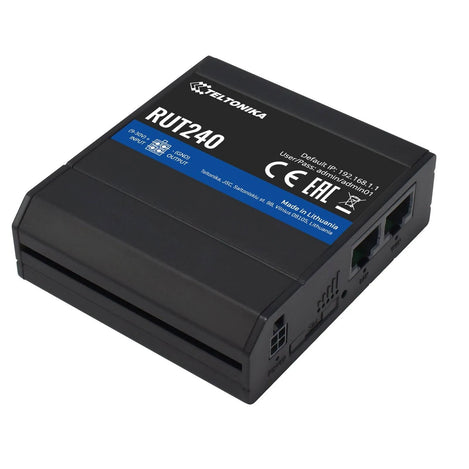

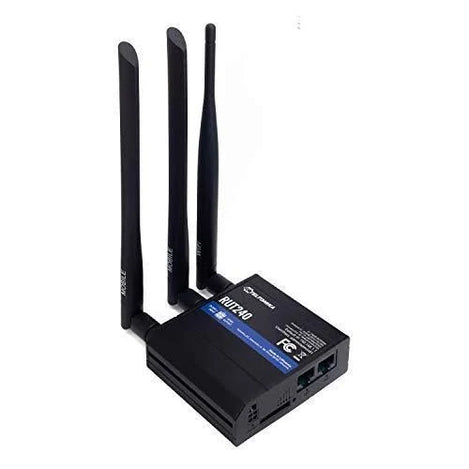

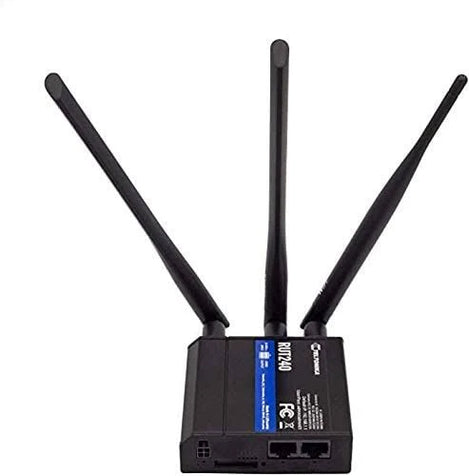

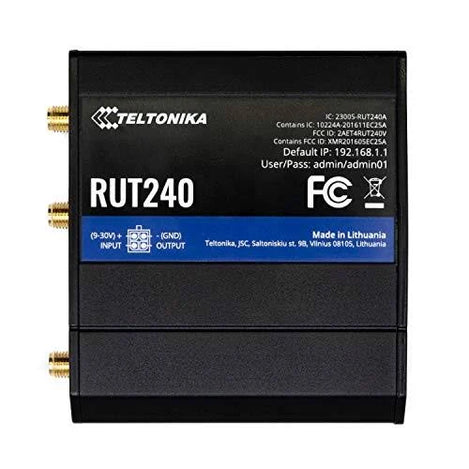

Teltonika RUT240 4G LTE Industrial Cellular Router
Teltonika RUT240 4G LTE Industrial Cellular Router
Product Images
Teltonika RUT240 4G LTE Industrial Cellular Router
SKU: GC-TELT-RUT240
MPN: RUT2400AU000
Manufacturer: Teltonika IOT Solutions Canada Ltd.
We Have You Covered
Product Information
Product Description
RUT240 is an all-time bestseller industrial 4G LTE Wi-Fi router for professional M2M & IoT applications. Supports Universal IoT SIM cards and IoT SIM cards from AT&T, Verizon, T-Mobile, and Deutsche Telekom for North, Central, and South America
It delivers high performance for mission-critical cellular communication in rigorous environments.
RUT240 is widely used for 4G backup, Remote Connection, Advanced VPN, and tunneling services in IoT networking solutions.
WAN failover ensures automatic switch to alternative backup connection in case of any connectivity issues.
The Wi-Fi is functional in both Access point and Station mode at the same time.
Features
- 4G/LTE (Cat 4), 3G, 2G
- Automatic switching to available Backup connection
- Wireless Access Point with Hotspot functionality

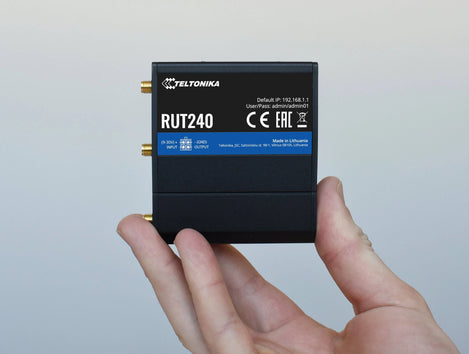

- Small size – easy integration
- Digital Input/Output for remote monitoring and control
- Compatible with Teltonika Remote Management System
Documents and Drivers
Documentation
RUT240 Cellular Router Datasheet
RUT240 Cellular Router Flyer
Specifications

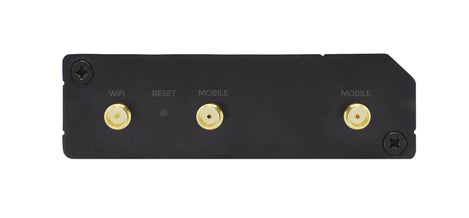

Antennas
- 2 x SMA for LTE
- 1 x RP-SMA for WiFi antenna connectors
Connector(s)
4 pin industrial DC power socket
CPU
Atheros Hornet, MIPS 24Kc, 400 MHz
Firmware
WEB UI, FOTA, RMS, Keep settings
Flash Memory
16 MB, SPI Flash
Housing
Aluminum housing, plastic panels
Humidity
10 % to 90 % non-condensing
Indicators LED
- 3 x Connection type status LEDs
- 5 x Connection strength LEDs
- 2 x LAN status LEDs
- 1 x Power LED

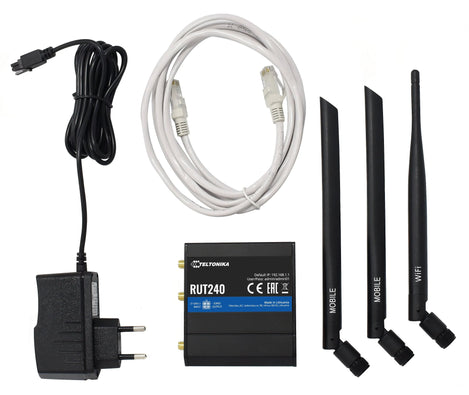

Included in Box
- Router RUT240
- 9 W PSU
- 2 x LTE antennas (swivel, SMA male)
- 1 x WiFi antenna (swivel, RP-SMA male)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- RMS Flyer
- Packaging box
Input/Output
- 1 x Digital input, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high
- 1 x Digital open collector output, max output 30 V, 300 mA
Input Voltage
9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max
Mounting
Bottom and sideways DIN rail mounting slots
MPN
RUT2400AU000
Operating System
RutOS (OpenWrt based Linux OS)
Pins
1 x 4 pin DC connector

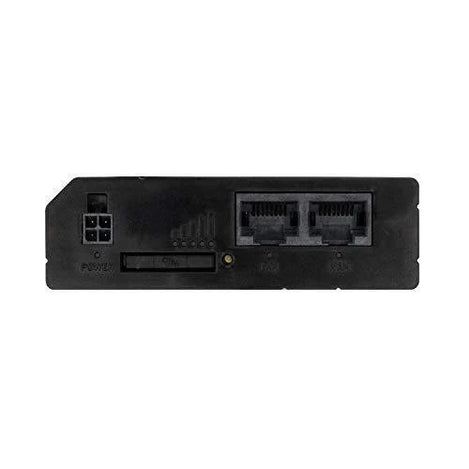

Ports
- 2 x RJ45 ports, 10/100 Mbps
- 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
- 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Power Consumption
< 6.5 W Max
Product Weight
125 g
Protocols
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake On Lan (WOL)
Security/Protection
- Authentication: Pre-shared key, digital certificates, X.509 certificates
- Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag based VLAN separation
- Mobile quota control: Set up custom data limits for the SIM card
- WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
- Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
Slots
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Temperature Range
-40°C to 75°C (-40°F to +167°F)
Voltage
Input Voltage Range: 9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max
