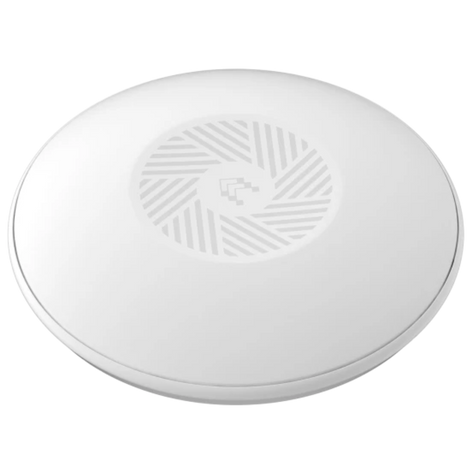

Teltonika TAP100 - Wi-Fi Access Point, POE-in: No PoE Injector

$33.00

Leave a review

SKU: GC-TELT-TAP100

MPN: TAP100000000

Manufacturer: Teltonika IOT Solutions Canada Ltd.

Stock Status: In stock

Delivery: Ships same or next business day
Free shipping to the continental US on orders over $100

PoE Injector

Product Information

Product Description

TAP100 is the first-ever Teltonika Networks Access Point, perfect for strengthening Wi-Fi coverage in small enterprise and commercial spaces. This PoE-in access point can be powered by active PoE devices via its RJ45 port and was designed for simplicity and ease of installation.

Free 24-month access to the RMS (remote management system) is included. RMS provides valuable management features like alerts, configuration, and FOTA.



Order Summary

 SKU PoE Injector Manufacturer Part # (MPN)
GC-TELT-TAP100 No Poe Injector TAP100000000
GC-TELT-TAP100-POE Add PoE Injector TAP100000300

Features

  • PoE-IN: can be powered by active PoE devices via RJ45 port.
  • Sleek design: UV-stabilized plastic housing that blends in with its environment
  • Easy installation: integrated mounting bracket for easy ceiling setup
  • RMS management: free access to RMs management for 24 months

Documents and Drivers

Documentation

TAP100 Access Point Flyer

TAP100 Access Point Datasheet

TAP100 Access Point Quick Start Guide

TAP100 Access Point User Manual

Specifications

HARDWARE

CPU

Mediatek, 580 MHz, MIPS 24KEc

Flash storage

16 MB, SPI Flash

RAM

RAM 64 MB, DDR2

Powering options

RJ45, PoE, 44.0 – 57.0 V

PoE standards

802.3af PoE Class 1

Antennas

2 x Internal for 2.4 GHz Wi-Fi

Antennas specifications

2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional

Ethernet

1 x RJ45 port, 10/100 Mbps

Wi-Fi

IEEE 802.11b/g/n (Wi-Fi 4)

Status LEDs

1 x Power LED (can be turned off from web-UI)

Operating temperature

-40°C ~ 75°C (-40°F ~ 167°F)

Enclosure

UV stabilized plastic, AP Mounting Bracket (for ceiling mount)

Dimensions

150 x 30 mm  (6.2 x 1.2 in)

Weight

190 g  (0.42 lbs)

SOFTWARE

Operating system

RutOS (OpenWrt based Linux OS)

Network features

DNS over HTTPS, Hotspot, Network protocols: TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP client, SMNP

Monitoring and Management

WEB UI, FOTA, SSH, JSON-RPC, RMS

Services

Data to Server, Monitoring & Management
