Teltonika TAP200 - Wi-Fi 5 Access Point, PoE-in: No PoE Injector

$52.00

Leave a review

SKU: GC-TELT-TAP200

MPN: TAP200000000

Manufacturer: Teltonika United States Inc.

Stock Status: In stock

Delivery: Ships same or next business day
Free shipping to the continental US on orders over $100

PoE Injector

Product Information

Product Description

The TAP200 access point is equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality. This Wi-Fi 5 wireless access point is designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential.

The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.

Powered by active PoE device via RJ45 port.



Order Summary

 SKU PoE Injector Manufacturer Part # (MPN)
GC-TELT-TAP200 No Poe Injector TAP200000000
GC-TELT-TAP200-POE Add PoE Injector TAP200000500

Features

  • Wi-Fi 5 - Wave-2 802.11 b/g/n/ac dual band Wi-Fi
  • RJ45 & PoE-in - Supports speeds of up to 1000 Mbps and PoE-in functionality

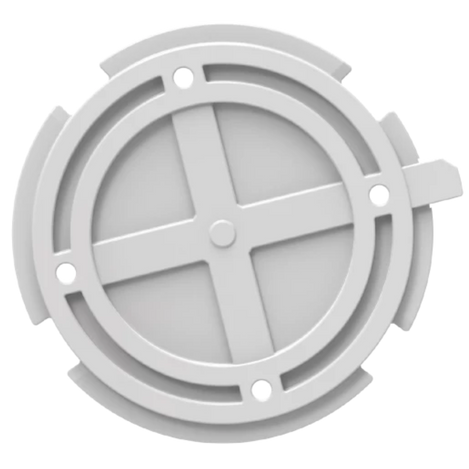

  • Resilient & easy to install - UV-stabilized housing for lasting color with a mounting bracket for quick setup.
  • Free RMS Management for 24 months

Documents and Drivers

Documentation

TAP200 Access Point Flyer

TAP200 Access Point Datasheet

TAP200 Access Point Quick Start Guide

TAP200 Access Point User Guide

Specifications

HARDWARE

CPU

MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc

RAM

256 MB, DDR3

Flash storage

16MB, SPI NOR Flash

Powering options

RJ45, PoE, 44.0 – 57.0 V

PoE standards

802.3af PoE Class 1

Antennas

2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi

Antennas specifications

  • 2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
  • 2 x 5150 - 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional

Ethernet

1 x RJ45 10/100/1000 Mbps

Wi-Fi

802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)

Status LEDs

1 x Power LED (can be turned off from web-UI)

Operating temperature

-40°C – 50°C (-40°F ~ 122°F)

Enclosure

UV stabilized plastic, AP Mounting Bracket (for ceiling mount)

Dimensions

150 x 30 mm  (6.2 x 1.2 in)

Weight

190 g  (0.42 lbs)

SOFTWARE

Operating system

RutOS (OpenWrt based Linux OS)

Network features

DNS over HTTPS, Hotspot, Network protocols: TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP client, SMNP

Monitoring and Management

WEB UI, FOTA, SSH, JSON-RPC, RMS

Services

Data to Server, Monitoring & Management
