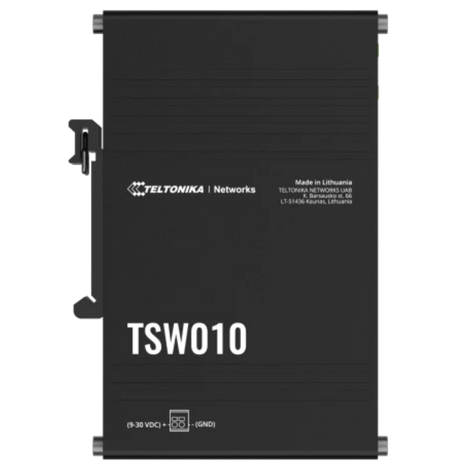

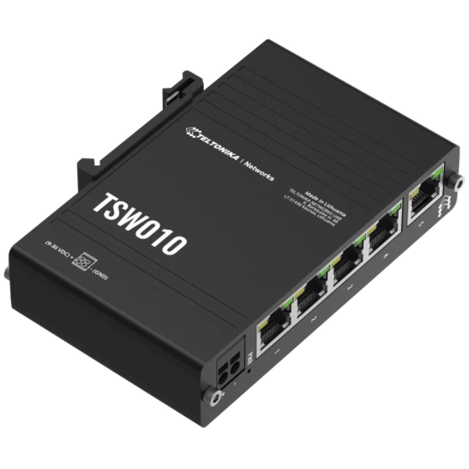

TSW010 - DIN Rail Ethernet Switch

$29.00

Leave a review

SKU: GC-TELT-TSW010

MPN: TSW010000000

Manufacturer: Teltonika United States Inc.

Stock Status: In stock

Delivery: Ships same or next business day
Free shipping to the continental US on orders over $100

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity which is sufficient for most industrial applications where high throughput is not required.

Wide range of supported power supply voltages (9-30 V) and rugged design make this switch suitable for professional solutions.

Compact size and integrated DIN rail bracket enable easy installation across different industrial environments.

Power Socket Pinout


TS010 Ethernet switch power pinout diagram

Features

  • Plug n Play - No additional configuration needed

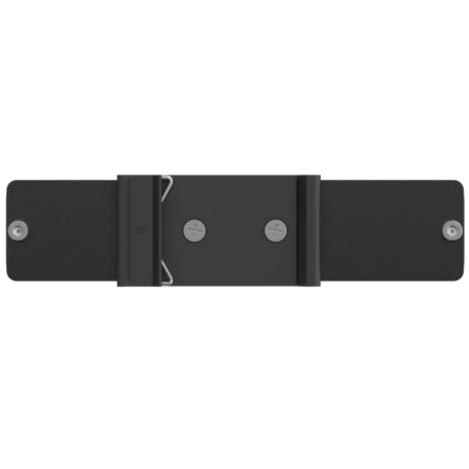

  • Mounting - Integrated DIN rail bracket and surface mounting options
  • Industrial Design - Anodized aluminum housing and panels
  • Ethernet - 5 x Ethernet ports with speeds of up to 100 Mbps

Documents and Drivers

Documentation

TSW010 Flyer

TSW010 Datasheet

TSW010 Quick Start Guide

TSW010 User Manual

Specifications

HARDWARE

Power supply

2-pin industrial DC power socket, 9 - 30 VDC

Power consumption

Idle: 0.3 W / Max: 0.9 W

Status LEDs

1 x Power LED, 10 x LAN status LEDs

Ethernet

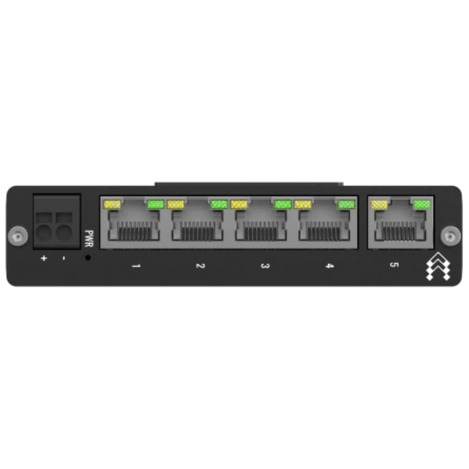

5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az, IEEE802.3x (Flow control) standards, supports auto MDI/MDIX crossover, Auto-Negotiation function

Enclosure

  • Ingress protection rating: IP30
  • Anodized aluminum housing and panels

Operating temperature

-40°C ~ 75°C (-40°F ~ 167°F)

Dimensions

113.1 x 27.4 x 80.5 mm  (4.5 x 1.1 x 3.2 in)

Weight

146.5 g  (0.32 lbs)

Installation

Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking)

1 Gbps

MAC address table size

2K entries

Jumbo frame support

2048 bytes

Switch Processing Scheme

Store-and-Forward
