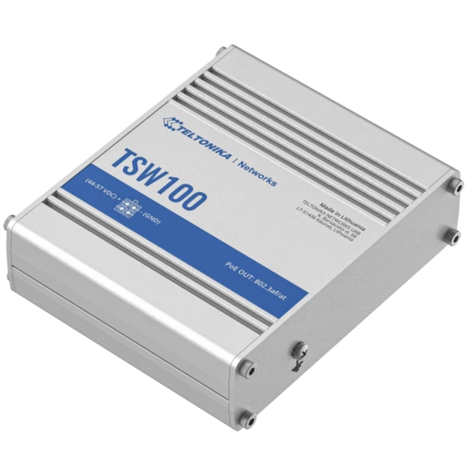

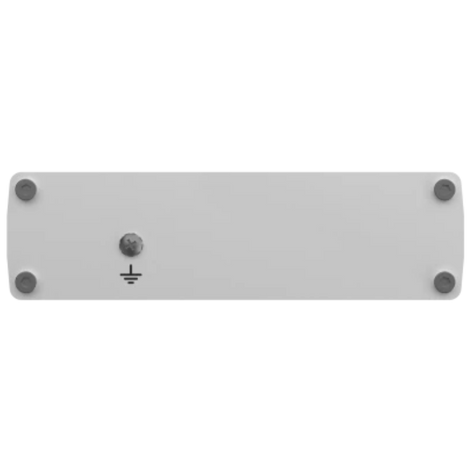

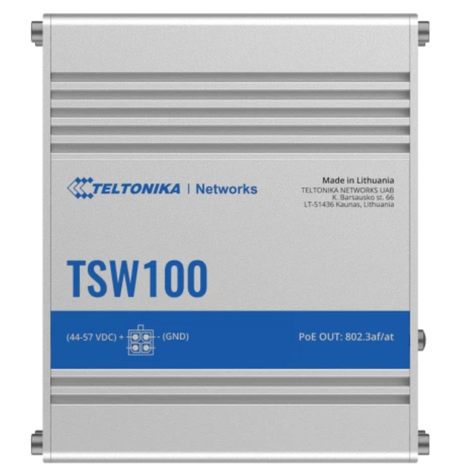

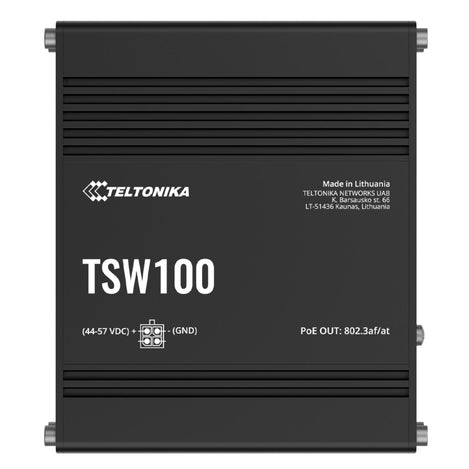

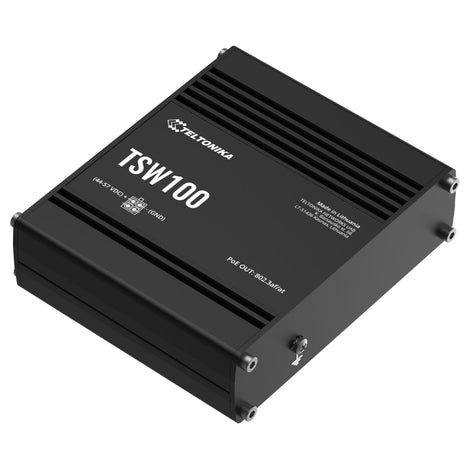

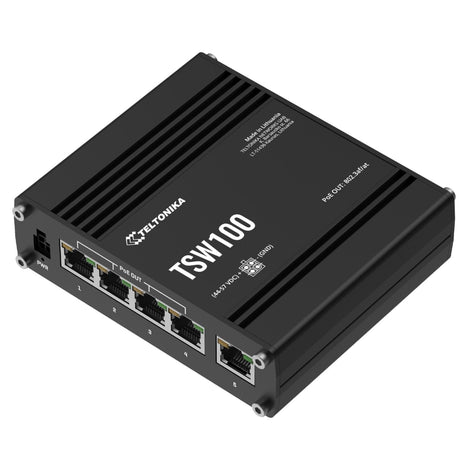

Product Images
TSW100 - Industrial PoE+ Ethernet Switch
$78.00
SKU: GC-TELT-TSW100
MPN: TSW100000010
Manufacturer: Teltonika IOT Solutions Canada Ltd.
We Have You Covered
Product Information
Product Description
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort.
Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
This switch is ideal for professional high bandwidth applications to provide both reliable data connection and power supply.
Power Socket Pinout
Features
- PoE+ - 4 x PoE+ ports with 802.3af and 802.3at support
- Power Budget - Total power budget at PSE up to 120 W
- Ethernet - 5 x Gigabit Ethernet with speeds up to 1000 Mbps
- Mounting - DIN rail and surface mounting options
Documents and Drivers
Documentation
TSW100 Flyer
TSW100 Datasheet
TSW100 Quick Start Guide
TSW100 User Manual
Specifications
HARDWARE
Powering option
4-pin power socket, 7-58 VDC
Power consumption
Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
PoE standard
802.3af/at (max 30 W per port, total power budget 120W)
Ethernet

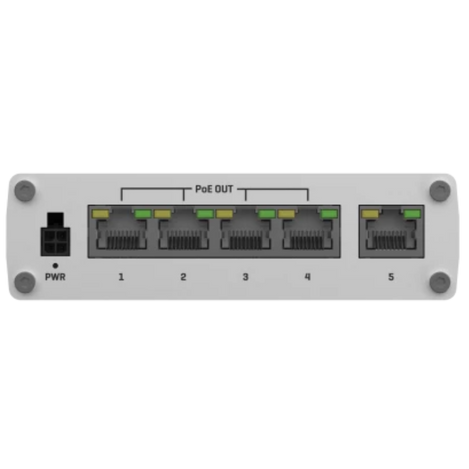

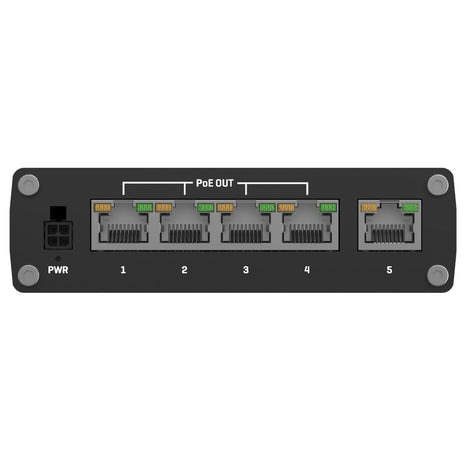

5 x 10/100/1000 Ethernet ports: 4 x PoE Out, 1 x ETH
Status LEDs
10 x Ethernet, 1 x Power
Enclosure
IP30, Aluminum housing with wall or DIN rail mounting option and grounding capability
Operating temperature
-40°C ~ 75°C (-40°F ~ 167°F)
Dimensions
115 x 32 x 95 mm (4.5 x 1.3 x 3.7 in)
Weight
350 g (0.8 lbs)
PERFORMANCE SPECIFICATIONS
Bandwidth
10 Gbps
Packet buffer
128 KB
MAC address table size
2K entries
Auto MDI/ MDI-X Cable Detection
Yes
