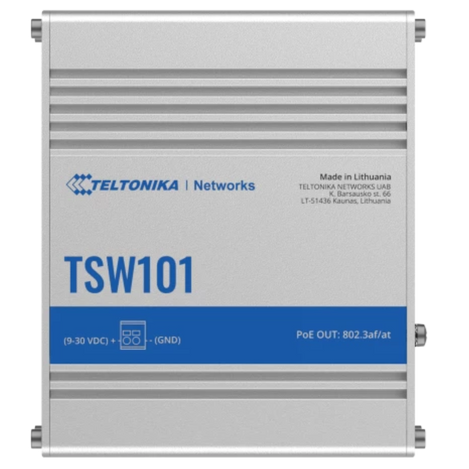

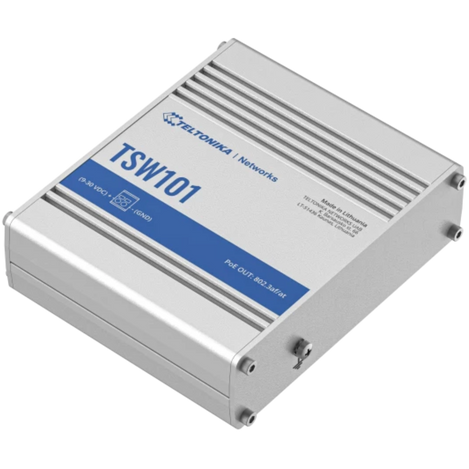

Product Images
TSW101 - Automotive POE+ Switch
$68.00
SKU: GC-TELT-TSW101
MPN: TSW101000000
Manufacturer: Teltonika IOT Solutions Canada Ltd.
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring 5 Gigabit Ethernet ports, including 4 with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, and requires no additional PSU.
Power Socket Pinout
Features
- Plug and Play - No configuration needed
- PoE+ - 4 x PoE+ ports with 802.3af and 802.3at support
- Gigabit Ethernet - 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
- Industrial Design - Rugged aluminum housing
Documents and Drivers
Documentation
TSW101 Flyer
TSW101 Datasheet
TSW101 Quick Start Guide
TSW101 User Manual
Specifications
HARDWARE
Powering option
2-pin power DC socket, 9-30 VDC
Power consumption
0.64 W / Max: 2.31 W / PoE Max: 112.58 W
PSU
12 V or 24 V car battery-powered. No additional PSU is required.
PoE standard
802.3af/at (max 30 W per port, total power budget 60W)

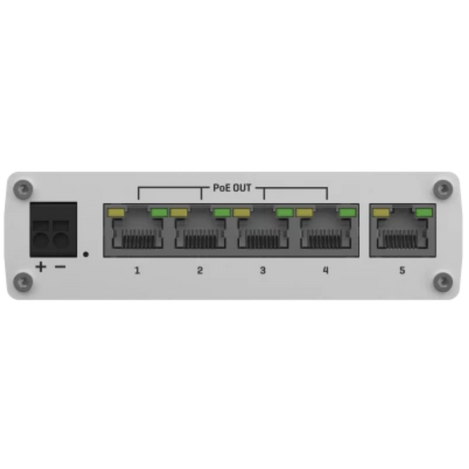

Ethernet
5 x 10/100/1000 Ethernet ports: 4 x PoE, 1 x Uplink
Status LEDs
10 x Ethernet, 1 x Power
Enclosure

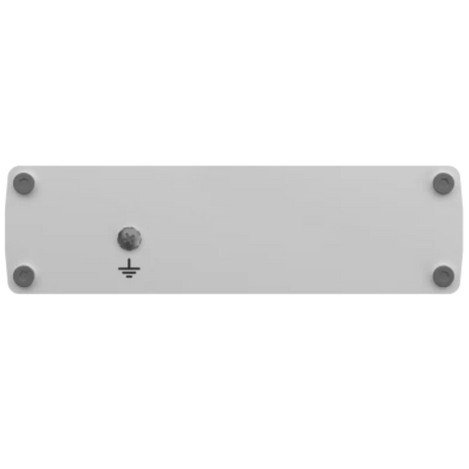

IP30, Aluminum housing with wall or DIN rail mounting option and grounding
Operating temperature
-40°C ~ 75°C (-40°F ~ 167°F)
Dimensions
115 x 32 x 95 mm (4.5 x 1.3 x 3.7 in)
Weight
354 g (0.8 lbs)
PERFORMANCE SPECIFICATIONS
Bandwidth
10 Gbps
Packet buffer
128 KB
Jumbo frame support
9216 bytes
MAC address table size
2K entries
Auto MDI/ MDI-X Cable Detection
Yes
