TSW110 - L2 Unmanaged Ethernet Switch




TSW110 - L2 Unmanaged Ethernet Switch
Product Images
TSW110 - L2 Unmanaged Ethernet Switch
$47.00
SKU: GC-TELT-TSW110
MPN: TSW110000010
Manufacturer: Teltonika IOT Solutions Canada Ltd.
We Have You Covered
Product Information
Product Description

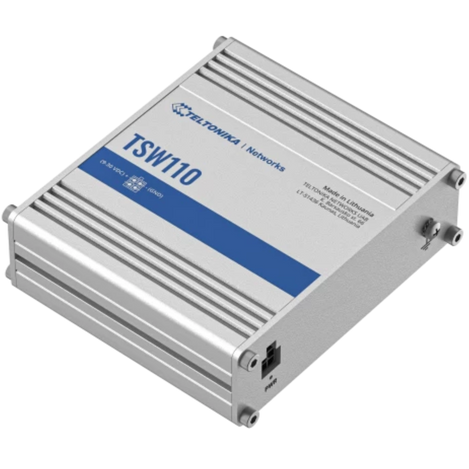

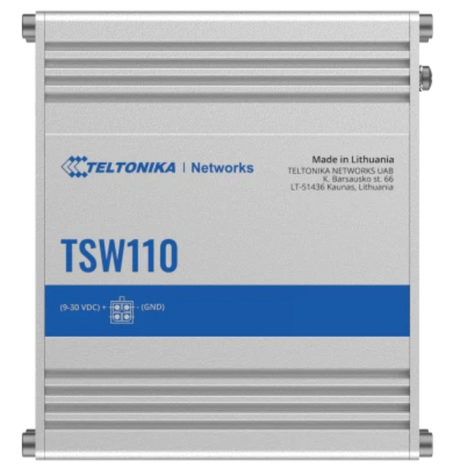

TSW110 is an unmanaged layer 2 Ethernet switch. This tiny and rugged professional device enables industrial high-bandwidth applications with a reliable data connection.

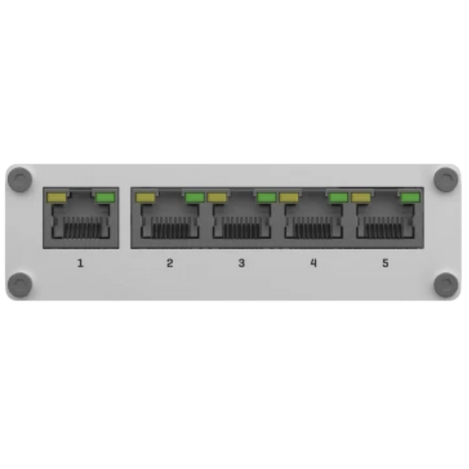

There are 5 Gigabit Ethernet ports to connect equipment to the network, and it supports wide power supply voltages (9-30 V). Can power up through the first ETH port.

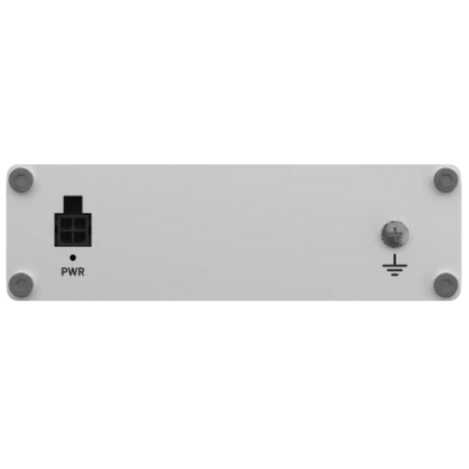

Power Socket Pinout
Features
- Gigabit Ethernet - 5 x Gigabit Ethernet with speeds up to 1000 Mbps
- Durability - Rugged aluminum housing, IP30
- Mounting - DIN rail and surface mounting options
- Temperature - -40°C ~ 75°C (-40°F ~ 167°F)
Documents and Drivers
Documentation
TSW110 Ethernet Switch Flyer
TSW110 Ethernet Switch Datasheet
TSW110 Ethernet Switch Quick Start Guide
TSW110 Ethernet Switch User Manual
Specifications
HARDWARE
Powering option
4-pin power socket, 9-30 VDC
Power consumption
Idle: < 0.4 W, Max: < 1.8 W
Ethernet
5 x 10/100/1000 Ethernet ports
Status LEDs
10 x Ethernet, 1 x Power
Enclosure
IP30, Aluminum housing with wall or DIN rail mounting option and grounding capability
Operating temperature
-40°C ~ 75°C (-40°F ~ 167°F)
Dimensions
100 x 30 x 85 mm (4.0 x 1.2 x 3.4 in)
Weight
227 g (0.5 lbs)
PERFORMANCE SPECIFICATIONS
Bandwidth
10 Gbps
Packet buffer
128 KB
MAC address table size
2K entries
Auto MDI/ MDI-X Cable Detection
YES
