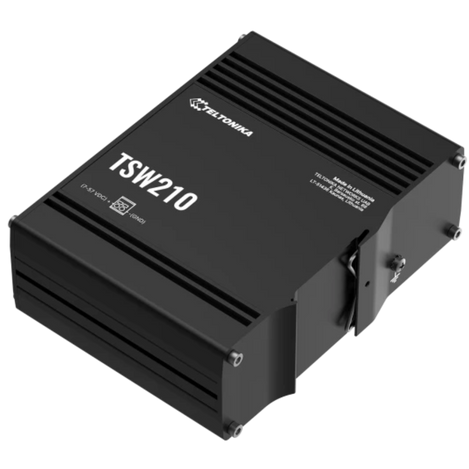

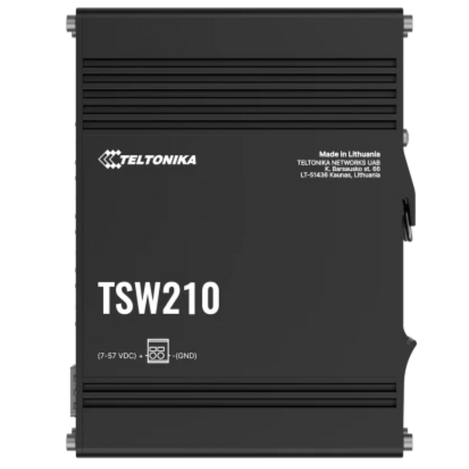

TSW210 -Industrial Ethernet Switch with Fiber Optic
$82.00
SKU: GC-TELT-TSW210
MPN: TSW210000000
Manufacturer: Teltonika IOT Solutions Canada Ltd.
We Have You Covered
Product Information
Product Description
TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP (Fiber Optic) ports. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP enables the connection of long-distant devices while maintaining high-speed data rates and ensuring reliability.
Power Socket Pinout Diagram
Features

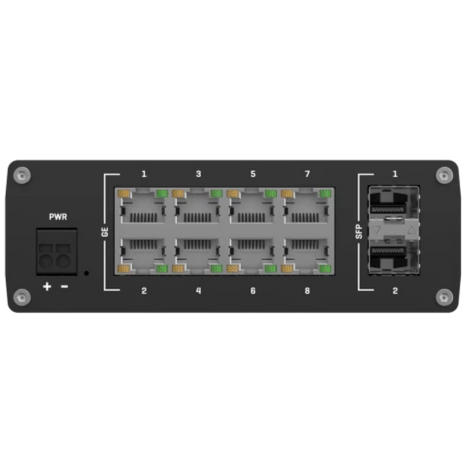

- Ethernet - 8 x Gigabit Ethernet ports with speeds of up to 10000 Mbps
- Plug and Play - No additional configuration needed

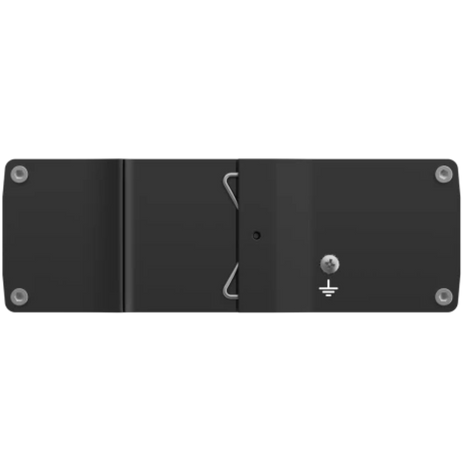

- Mounting - DIN rail and surface mounting options
- SFP - 2 x SFP ports for long range fiber optic communication
Documents and Drivers
Documentation
TSW210 Flyer
TSW210 Datasheet
TSW210 Quick Start Guide
TSW210 User Manual
Specifications
HARDWARE
Power connector
2-pin industrial DC power socket
Input voltage range
7-57 VDC
Power consumption
Idle: 1.03 W, Max: 3.71W
Ethernet
8 x 10/100/1000 Mbps Ethernet ports
SFP
2 x SFP ports for Optical interfaces
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Status LEDs
16 x Ethernet, 1 x Power, 2 x SFP activity
Enclosure
IP30, Aluminum housing with wall or DIN rail mounting options and grounding capability
Operating temperature
-40°C ~ 75°C (-40°F ~ 167°F)
Dimensions
132 x 44.2 x 95.1 mm (5.2 x 1.7 x 3.7 in)
Weight
500 g (1.1 lbs)
Installation
Desktop, wall or DIN rail mountable (additional kit needed)
PERFORMANCE SPECIFICATIONS
Bandwidth
20 Gbps
Packet buffer
128 KB
Jumbo frame support
9216 bytes
MAC address table size
2K entries
Auto MDI/MDI-X Cable Detection
Yes
