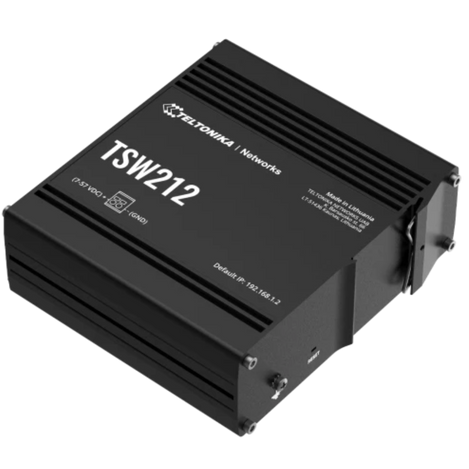

TSW212 Managed Switch, Ethernet & Fiber Optic Ports, PROFINET Certified

$121.00

Leave a review

SKU: GC-TELT-TSW212

MPN: TSW212000000

Manufacturer: Teltonika United States Inc.

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

TSW212 is an L2 Teltonika Networks managed switch with additional L3 features including DHCPv6 client support and static IPv6 routing for greater network management.

PROFINET certified, this switch supports multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP. There are 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fiber optic communication.


Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations; all with effortless installation thanks to an integrated DIN rail mount.

Power Pinout Diagram



Pinout Diagram shows power red wire is on the left and ground black wire is on the right

Features

  • Managed switch - L2 with additional L3 feature for advanced management capabilities
  • Industrial Protocols - Supports PROFINET for automated data processing alongside other protocols, EtherNet/IP and MRP
  • Ethernet & SFP - 8 x Gigabit Ethernet ports and 2 x SFP ports for fiber optic communication
  • TSWOS - Teltonika Networks OS for switches, intuitively designed for infinite configurations

Documents and Drivers

Documentation

TSW212 Flyer

TSW212 Datasheet

TSW212 Quick Start Guide

TSW212 User Manual

TSW212 PROFINET Certificate

Downloads

GSDML-V2.43

Specifications

HARDWARE

RAM

128MB, DDR3

Flash storage

16MB serial flash

Power consumption

2-pin industrial DC power socket, 7 - 57 VDC

Status LEDs

1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs

Ethernet

8 x RJ45 ports, 10/100/1000 Mbps

SFP

2 x SFP ports

Ingress protection rating

IP30

Operating temperature

-40°C ~ 75°C (-40°F ~ 167°F)

Weight

615 g  (1.4 lbs)

Dimensions (W x H x D)

132 x 44.2 x 122.2 mm  (5.2 x 1.7 x 4.8 in)

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking)

20 Gbp

Packet buffer

512 KB

MAC address table size

8K entries

Jumbo frame support

10000 bytes

SERVICES

Supported services

EtherNet/IP, PROFINET (class B), SNMP V2, V3, LLDP, Network Management

NETWORK

MRP

MRP client role, MRP manager role

L2 features

Loop protection, Forwarding table, VLAN, STP/RSTP

DHCP

DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards

Port Settings

Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring

L3 Features

Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QOS

QOS

Port priority, DSCP priority, 802.1p priority, TOS

Scheduling method

SP/WFQ/WRR

Bandwidth control

Rate limiting, storm control

DIAGNOSTICS

Tools

Cable diagnostic, ping, traceroute, nslookup

CERTIFICATE

PROFINET certified
