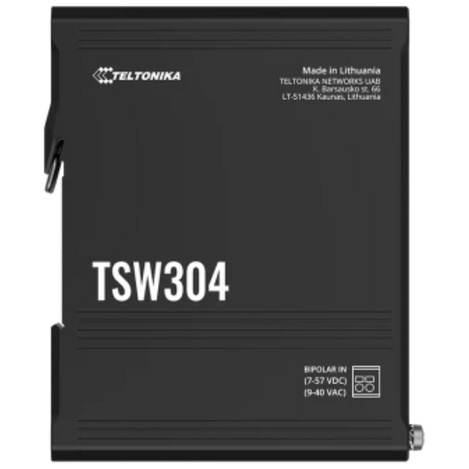

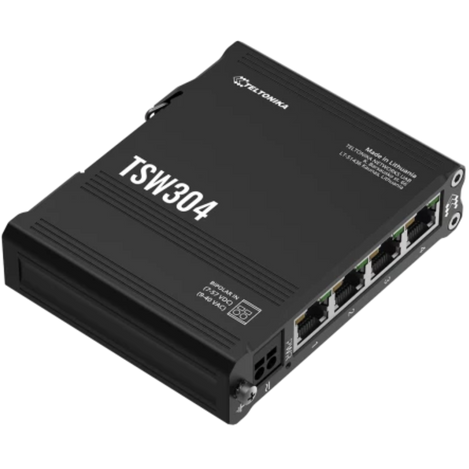

TSW304 DIN Rail Ethernet Switch

$71.00

Leave a review

SKU: GC-TELT-TSW304

MPN: TSW304000000

Manufacturer: Teltonika United States Inc.

Delivery: Ships within 7-14 business days
Free shipping to the continental US on orders over $100

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

TSW304 is the tiniest Teltonika Networks Ethernet switch and is designed for industrial applications. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet.

There are 4 x Gigabit Ethernet ports with speeds up to 1000 Mbps.

Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.

Features

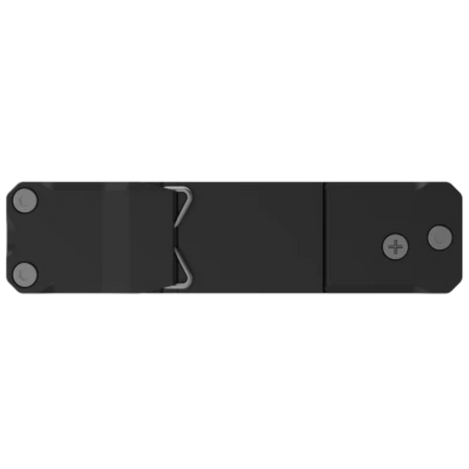

  • Integrated DIN rail bracket and surface mounting options
  • Compact size - 102 x 25 x 81.5 mm  (4.0 x 1.0 x 3.2 in)
  • 4 x Gigabit Ethernet with speeds up to 1000 Mbps
  • Wide range of supported power supply voltages  - 7 - 57 V

Documents and Drivers

Documentation

TSW304 Flyer

TSW304 Datasheet

TSW304 Quick Start Guide

TSW304 User Manual

Specifications

HARDWARE

Powering option

2-pin power socket, 7 - 57 VDC / 9 - 40 VAC

Power consumption

Idle: < 0.26 W, Max: < 1.44 W

Ethernet

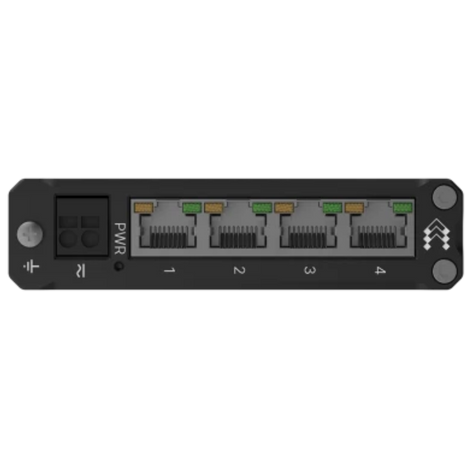

4 x 10/100/1000 Ethernet ports

Status LEDs

8 x Ethernet, 1 x Power

Enclosure

IP30, Aluminum housing with wall or DIN rail mounting option and grounding capability

Operating temperature

-40°C ~ 75°C (-40°F ~ 167°F)

Installation

DIN Rail mountable (no additional kit needed)

PERFORMANCE SPECIFICATIONS

Dimensions

102 x 25 x 81.5 mm  (4.0 x 1.0 x 3.2 in)

Weight

210 g  (0.46 lb)

Bandwidth

8 Gbps

Packet buffer

128 KB

Jumbo frame support

9216 bytes

MAC address table size

2K entries

Auto MDI/ MDI-X Cable Detection

Yes
