This product is discontinued and no longer available.
UDS1100 - Serial to 10 / 100M Ethernet Device Server

UDS1100 - Serial to 10 / 100M Ethernet Device Server
Product Images

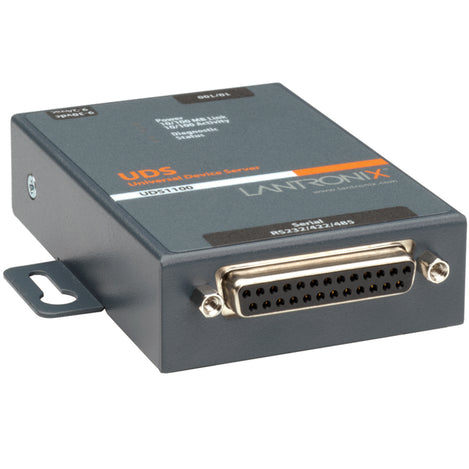

UDS1100 - Serial to 10 / 100M Ethernet Device Server
SKU: GC-UDS1100-01
MPN: UD1100001-01
Manufacturer: Lantronix
We Have You Covered
Product Information
Product Description

The UDS1100 is an intelligent single channel Serial-to-Ethernet cable adaptor that enables any device or machine with a serial port (RS232/RS422/RS485) to become network and Internet-enabled.
The integrated Web Server allows any attached serial device to be 'contacted' and monitored via a standard Internet browser. TCP/IP is embedded into the UDS1100, enabling it to operate within non-PC environments. The adaptor features a Modem Emulation Mode, allowing it to behave like a modem but communicate over TCP/IP.
The UDS1100 can be integrated into a system with minimal set-up; the Device Installer configuration utility is provided which allows quick and easy customization to suit any network or serial device.
Virtual Comm Port drivers are provided to allow a UDS1100-connected device to communicate with existing software over TCP/IP (for Windows operating systems). Built into the Com Port Redirector software, TruPort® technology enables Windows-based applications to access and control serial ports on the UDS1100 as if they were actually local PC serial ports. The application can monitor and set hardware pins on the UDS1100 serial ports as well as access serial buffers for total Com port control.
Features
- 10/100Mbps Auto Sensing RJ45 Ethernet Port
- 1.25MB Web Server
- DB25 Connector for Serial
- Power Supply Included
Documents and Drivers
Documentation
UDS1100 Datasheet
UDS1100 User Guide
Java App Note
Downloads
Current DeviceInstaller
Current Com Port Redirector
Specifications
Baud Rate
Serial: Up to 230Kbps
Certifications
UL, CSA, TUV, FCC, CE
Characters T
7 or 8 data bits
Flow Control
XON/XOFF, RTS/CTS
GTIN
783384230699
Indicators LED
Ethernet activity, Status & Power
Interface(s)
Network: 10/100Mbps Ethernet
MPN
UD1100001-01
Serial Interfaces
378
Serial Types
372,370,371
Stop Bits
1 or 2
