Unigate CL CANopen Gateway

$690.00

Leave a review

SKU: GC-CL-CANOPEN

MPN: V3554*)

Manufacturer: Deutschmann Automation

Delivery: Ships within 3-4 weeks
Qualifies for Free shipping to the US
* A customer specific article number is created when the order is placed.

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

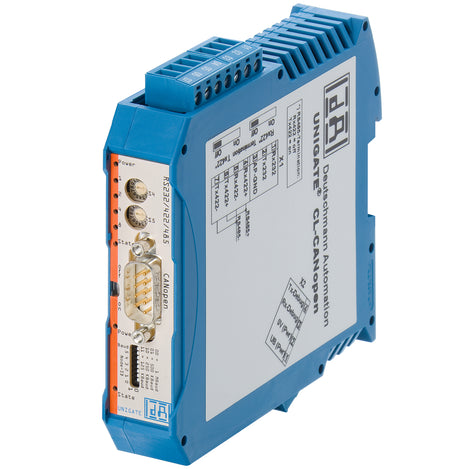

CANopen-enable any RS232/485/422 serial or Modbus device with the UNIGATE CL Gateway. Make any serial device a CANopen Slave using the UNIGATE CL Gateway. Its low-cost and flexibility are ideal for high volume applications. One side of the gateway is a fieldbus, CANopen slave, while the other side is a high performance serial port that directly interfaces with your serial device. The serial side of the UNIGATE can either be used in one of many standard configurations (including Modbus RTU master/slave and standard RS232/422/485), or can be customized with its built-in scripting language. Volume and OEM pricing available.

CUSTOM PROTOCOLS:
The UNIGATE CL Gateway allows for the quick development of custom applications on the serial side using its powerful scripting language. When developing a custom application, or for simple configuration to a standard protocol, we recommend using a Starter Kit. Starter kits contain all the connection cables and power supplies for configuring and/or scripting. There is even a CANopen Configuration tool for testing your configuration or script. Scripts are written using the Protocol Developer Tool. If you need a custom protocol and scripting is not for you, Grid Connect offers scripting services at reasonable rates (call for details).

Features

  • Complete CANopen Slave V4.0
  • Max. 244 byte input and 244 byte output data
  • Script language for optimal adaptation to your field device
  • Easy configuration from MS Windows® using the WinGate tool.
  • Develop customized scripts with the free Protocol Developer software tool
  • Scripts are portable between all other UNIGATE CL or IC Gateways
  • Up to 32 connections are possible, when using the RS485

Documents and Drivers

Documentation

Unigate CL CANopen Gateway Datasheet

Unigate CL CANopen Gateway Manual

Specifications

Baud Rate

  • Bus: Up to 1 Mbps
  • CANopen: Up to 1 Mbps
  • Serial: Up to 625 kbps

Bus Buffer

244 Bytes I/O

Bus Termination

Switch-able

Certifications

CANopen, CE

Characters T

7 or 8 data bits

Connector(s)

  • Serial: RS232 - 3 Pole Terminal Block (Tx, Rx, Gnd)
  • Serial: RS422/RS485 - 4 Pole Terminal Block (RxA, RxB, TxA, TxB)
  • CANopen: 9 pin D-Sub Socket (9-pin Female DB9)
  • Configuration/Programming Port Interface: Terminal Block (Tx, Rx)

Current

Typical 120mA, max. 150mA at 24VDC

Data Buffer

1024 Bytes Input and 1024 Bytes Output

Data Rate

110 to 625 kbps Baud

Dimensions

23 x 115 x 100 mm

Indicators LED

  • Serial: Power, Code, State
  • CANopen: Power, Bus, State

Interface(s)

  • Isolated CANopen interface, optional galvanic isolation of the serial RS side
  • Serial RS232, RS422 and RS485 interfaces on board

Isolation

Galvanic Isolation

Mounting

DIN Rail

MPN

V3554

Parity

odd, even, none

Product Weight

130 g

Protocols

  • Serial: RS232, RS422 or RS485, Modbus, plus Custom Protocols through Scripting
  • CANopen: CANopen Version 3.0 / 4.0
  • Configuration/Programming Port Interface: RS232 (9600 Baud, 8, n, 1)

Security/Protection

Reverse Voltage, Short Circuit, Overload, Under voltage

Slave Address

Rotary Switches

Software

MS Windows®-based WinGate configuration software, and Protocol Developer script development software

Stop Bits

1 or 2
