Unigate CL EtherCAT Gateway
Unigate CL EtherCAT Gateway
Product Images
Unigate CL EtherCAT Gateway
$760.00
SKU: GC-CL-ETHERCAT
MPN: V3573*)
Manufacturer: Deutschmann Automation
We Have You Covered
Product Information
Product Description

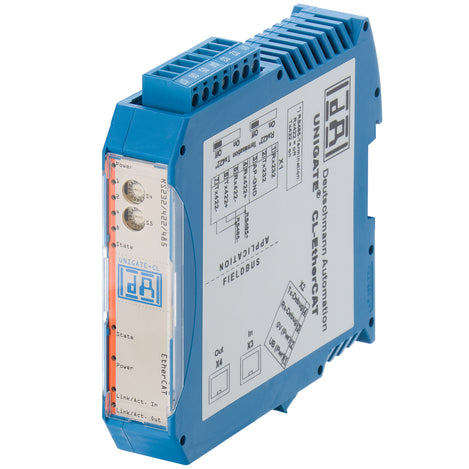

The UNIGATE CL Gateway will EtherCAT-enable any RS232/485/422 serial or Modbus device by making it an EtherCAT Slave.
One side of the gateway is a fieldbus, EtherCAT slave, while the other side is a high performance serial port that directly interfaces with your serial device. The serial side of the UNIGATE can either be used in one of many standard configurations (including Modbus RTU master/slave and standard RS232/422/485), or can be customized with its built-in scripting language.
The low-cost and flexibility of UNIGATE CL devices are ideal for high volume applications. Volume and OEM pricing available.
CUSTOM PROTOCOLS:
The UNIGATE CL Gateway allows for the quick development of custom applications on the serial side using its powerful scripting language. When developing a custom application, or for simple configuration to a standard protocol, we recommend using a Starter Kit. Starter kits contain all the connection cables and power supplies for configuring and/or scripting. There is even a EtherCAT Master tool for testing your configuration or script. Scripts are written using the Protocol Developer Tool. If you need a custom protocol and scripting is not for you, Grid Connect offers scripting services at reasonable rates (call for details).
Features
- Complete EtherCAT Slave
- Max. 1300 byte input and 1300 byte output data
- Script language for optimal adaptation to your field device
- Easy configuration from MS Windows® using the WinGate tool.
- Develop customized scripts with the free Protocol Developer software tool
- Scripts are portable between all other UNIGATE CL or IC Gateways
Documents and Drivers
Documentation
Unigate CL EtherCAT Gateway Instruction Manual
Unigate CL Protocol Converters Brochure
Specifications
Baud Rate
- Bus: Auto-sensing, up to 12 Mbps
- EtherCAT: Up to 100 Mbps
- Serial: Up to 625 kbps
Bus Buffer
1300 Bytes I/O
Bus Termination
Switch-able
Certifications
CE
Characters T
7 or 8 data bits
Connector(s)
- Serial RS232: 3 Pole Terminal Block (Tx, Rx, Gnd)
- Serial RS422/RS485: - 4 Pole Terminal Block (RxA, RxB, TxA, TxB)
- EtherCAT: RJ45
- Configuration/Programming Port Interface: Terminal Block (Tx, Rx)
Current
Typical 120mA, max. 150mA at 24VDC
Data Buffer
1024 Bytes Input and 1024 Bytes Output
Data Rate
110 to 625 kbps Baud
Dimensions
23 x 115 x 100 mm
Enclosure
IP24
Indicators LED
- Serial: Power, Code, State
- EtherCAT: Power, Bus, State
Interface(s)
- Isolated EtherCAT interface, optional galvanic isolation of the serial RS side
- Serial RS232, RS422 and RS485 interfaces on board
Isolation
Galvanic Isolation
Mounting
DIN Rail
MPN
V3573
Parity
Odd, even, none
Product Weight
130 g
Protocols
- Serial: RS232, RS422 or RS485, Modbus, plus Custom Protocols through Scripting
- EtherCAT
- Configuration/Programming Port Interface: RS232 (9600 Baud, 8, n, 1)
Security/Protection
Reverse Voltage, Short Circuit, Overload, Under voltage
Slave Address
Rotary Switches or via EtherCAT
Software
MS Windows®-based WinGate configuration software, and Protocol Developer script development software
Stop Bits
1 or 2
Storage Specifications
Temperature: -40°C to +70° C (-40°F to +158°F)
Temperature Range
Operating: 0°C to +55°C (32°F to +131°F)
Voltage
Input: 10.8 to 30VDC
