UNIGATE® Falcon - Modbus to PROFINET gateway

$854.00

SKU: GC-FN-PROFINET-ECO
MPN: V6003
Deutschmann Automation

Leave a review

Qualifies for free shipping to the continental US

Delivery: Ships within 2-3 weeks

Product Description

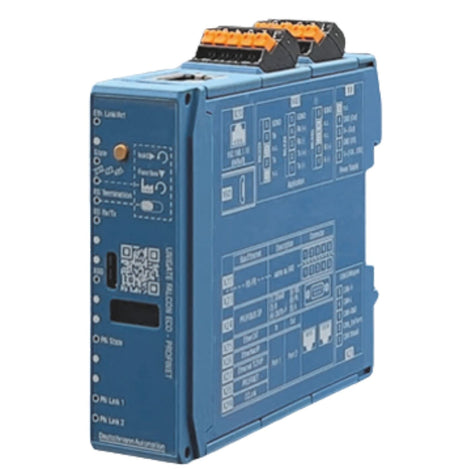

UNIGATE FALCON connects serial automation equipment to PROFINET networks. RS232, RS485, and RS422 are on-board as standard. Mapping between the serial side and the fieldbus side is done by a configurable web interface or freely scriptable for proprietary protocols.

Standard protocols, Modbus ASCII, Modbus RTU (master or slave), 3964(R), and others, are set up through the web interface; no firmware changes to the terminal device are required.

This 2 port, very slim and compact device fits a standard sub-distribution enclosure. A front-panel push button provides a service menu for hardware reset or factory reset with no external tools.


Interfaces

  • PROFINET - Conformance Class B (Real-Time; usable in an IRT network)
  • Serial - RS232, RS422 and RS485
  • Ethernet - TCP/IP configuration via web interface
  • Debug µ-USB - Debugging script
  • Service Menu - Restart, Restore defaults, RS termination


Implemented Protocols

  • Modbus RTU Master
  • Modbus RTU Slave
  • Modbus ASCII Master
  • Modbus ASCII Slave
  • ASCII

Features

BUS & FIELDBUS

  • RS232, RS485 and RS422 interfaces on board
  • Multiple terminal devices possible when using the RS485 interface
  • Same design on the serial side across all bus versions
  • Fieldbus / Ethernet side meets standard market models

MECHANICAL & ELECTRICAL

  • No adaptation of terminal-device firmware required
  • Modern, slim DIN rail housing
  • Uniform dimensions across the entire product family
  • Wide voltage range: 10 to 33 VDC
  • Built-in isolation between all interfaces

STANDARD PROTOCOLS (CONFIGURATION)

  • Configuration via web interface
  • Modbus RTU (Master / Slave)
  • Modbus ASCII (Master / Slave)
  • 3964(R) protocol
  • ASCII protocol
  • SSI protocol for transducers (gray code or binary code)

Documents and Drivers

Documentation

Unigate Falcon Brochure

Unigate Falcon Datasheet

Specifications

GENERAL

Dimensions (W x D x H)

25 x 95 x 86.5 mm (connector plug included) ( 0.98 x 3.74 x 3.41 in)

Weight

approx. 105 g (0.23 lb)

Protection class

IP20

Housing material

Polyamide

Mounting

DIN rail (EN 50022)

Power supply

10 to 33 Volt DC; protection against incorrect polarity, short circuit and overload integrated

Push button

Service menu (Restart / Factory reset / RS termination)

TEMPERATURE

Operating

-25°C ~ 70°C (-13°F ~ 158°F) Non-condensing

Storage / transport

-40°C ~ 100°C (-40°F ~ 212°F)

INTERFACES

Serial interface

RS232 / RS422 / RS485, up to 6 MBaud

PROFINET interface

PROFINET device interface, Conformance Class B, real-time communication (RT); can also be operated in an IRT network

Ethernet interface

Web interface (configuration)

µ-USB

Debug interface

PROFINET

PROFINET data volume

Max. 1024 bytes input data and 1024 bytes output data

PROFINET data exchange

Cyclical and acyclical

PROFINET speed

100 Mbit/s - 100BASE-Tx

PROFINET configuration

Via GSDML file

PROFINET redundancy

MRP; S2 system redundancy

PROFINET connection

Isolated 2x RJ45 (integrated 2-port switch)

ETHERNET

Ethernet connection

Isolated 1x RJ45

Ethernet services

FTP server, web server

IMPLEMENTED PROTOCOLS

Modbus RTU Master/Slave, Modbus ASCII Master/Slave, ASCII
