Unigate IC CANOpen Slave Module

$270.00

Leave a review

SKU: GC-IC-CANOPENV4

MPN: V3491**)

Manufacturer: Deutschmann Automation

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US
** A specified article number will be assigned with an order.

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

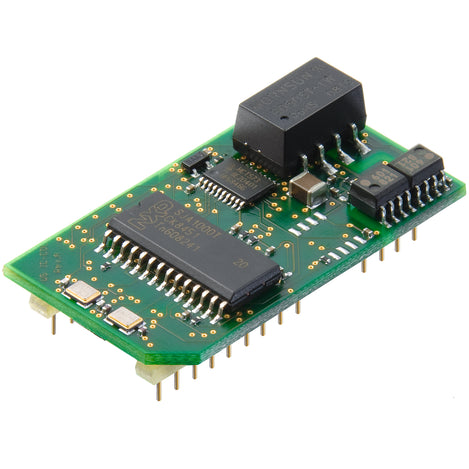

UNIGATE IC is a complete Single Chip CANOpen solution in a 32 pin DIL (dual in-line) package. With a space of 45 x 25 mm the Unigate IC contains all required components: microcontroller, Flash, RAM, CAN controller and bus interface components, e. g. optocoupler and bus driver. The UNIGATE IC is to be connected to the microprocessor of your design or it can be operated Stand-Alone. The Unigate IC CANOpen is certified and proven through testing with applications and many commercially available CANOpen masters. The integrated microprocessor handles the complete CANOpen data traffic and removes the burden from the attached processor. The protocol between the Unigate IC and the attached processor is handled using a Script. This Script is generated with the free PC-tool Protocol Developer and it is optimally adjusted to the final product and the requirements of the CANOpen Master. The hardware and software interfaces of the Unigate IC modules are standardized, thus they are interchangeable without changing any hardware or software. Volume and OEM pricing available.

CUSTOM PROTOCOLS:
The Unigate IC CANOpen allows for the quick development of custom applications using its powerful scripting language. When developing a custom application, or for simple configuration to a standard protocol, we recommend using a Starter Kit. Starter kits contain a development board with the Unigate IC and all the connection cables and power supplies for configuring and/or scripting. There is even a CANOpen Configuration tool for testing your configuration or script. Scripts are written using the Protocol Developer Tool. If you need a custom protocol and scripting is not for you, Grid Connect offers scripting services at reasonable rates (call for details).

Features

  • Complete CANOpen Slave V4.0
  • Max. 255 byte input and 255 byte output data
  • Stand-Alone operation via shift register
  • Up to 32 connections are possible, when using the RS485
  • Script language for optimal adaptation to your field device
  • Easy configuration from MS Windows® using the WinGate tool
  • Develop customized scripts with the free Protocol Developer software tool
  • Scripts are portable between all other UNIGATE CL or IC Gateways

Documents and Drivers

Documentation

Unigate IC Module Datasheet

Unigate IC CANOpen Manual

Specifications

Baud Rate

  • CANOpen: Up to 1 Mbps
  • Serial: Up to 625 kbps

Certifications

  • CANOpen (pre-certified)
  • CE

Connector(s)

Connection via UART interface to the existing microprocessor

Current

Typical 150mA

Dimensions

45 x 25 x 20 mm

Interface(s)

  • Isolated CANOpen interface
  • Synchronous shift register interface
  • 2nd Serial interface for Script download, configuration, Debug-function

Mounting

DIL32 Unigate IC Standard

MPN

V3491

Software

MS Windows®-based WinGate configuration software, and Protocol Developer script development software

Temperature Range

Operating: -40°C to +85°C (-40°F to +185°F)
