Unigate IC Fast Ethernet Modbus TCP Module

$270.00

Leave a review

SKU: GC-IC-FASTETHERNET

MPN: V3419

Manufacturer: Deutschmann Automation

Stock Status: In Stock

Delivery: Ships in 2 to 3 weeks
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

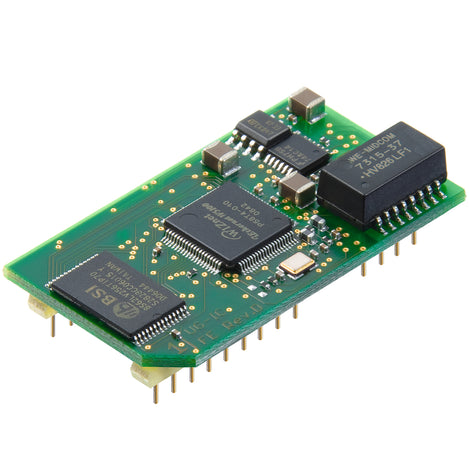

UNIGATE IC is a complete Single Chip Ethernet solution in a 32 pin DIL (dual in-line) package. With a space of 45 x 25 mm the Unigate IC contains all required components: microcontroller, Flash, RAM, Ethernet controller and bus interface components, e. g. optocoupler and bus driver. The UNIGATE IC is to be connected to the microprocessor of your design or it can be operated Stand-Alone. The Unigate IC Ethernet is certified and proven through testing on commercially available Ethernet networks. The integrated microprocessor handles the complete Ethernet data traffic and removes the burden from the attached processor. The protocol between the Unigate IC and the attached processor is handled using a Script. This Script is generated with the free PC-tool Protocol Developer and it is optimally adjusted to the final product and the requirements. The hardware and software interfaces of the Unigate IC modules are standardized, thus they are interchangeable without changing any hardware or software. Volume and OEM pricing available.

CUSTOM PROTOCOLS:
The Unigate IC Ethernet allows for the quick development of custom applications using its powerful scripting language. When developing a custom application, or for simple configuration to a standard protocol, we recommend using a Starter Kit. Starter kits contain a development board with the Unigate IC and all the connection cables and power supplies for configuring and/or scripting. There is even a Ethernet diagnostic tool for testing your configuration or script. Scripts are written using the Protocol Developer Tool. If you need a custom protocol and scripting is not for you, Grid Connect offers scripting services at reasonable rates (call for details).

Features

  • Complete Ethernet TCP/IP and UDP device
  • Max. 1024 byte input and 1024 byte output data
  • Stand-Alone operation via shift register
  • Script language for optimal adaptation to your field device
  • Easy configuration from MS Windows® using the WinGate tool
  • Develop customized scripts with the free Protocol Developer software tool
  • Scripts are portable between all other UNIGATE CL or IC Gateways

Documents and Drivers

Specifications

BAUD RATE

  • Ethernet: Up to 100 Mbps
  • Serial: Up to 625 kbps

CERTIFICATIONS

CE

CONNECTORS

Connection via UART interface to the existing microprocessor

CURRENT

Typical 125 mA

DIMENSIONS

45 x 25 x 20 mm

INCLUDED SOFTWARE

MS Windows®-based WinGate configuration software, and Protocol Developer script development software

INTERFACES

  • Isolated Ethernet interface
  • Synchronous shift register interface
  • 2nd Serial interface for Script download, configuration, Debug-function

MOUNTING

DIL32 Unigate IC Standard

MPN

V3419

PROTOCOLS

Ethernet Protocols: Modbus TCP, TCP, UDP, IP, web server, FTP, ...

TEMPERATURE RANGE

Operating: -40°C to +85°C

VOLTAGE

Input: +5VDC or +3.3VDC
