Unigate IC Siemens MPI Slave Module

$270.00

Leave a review

SKU: GC-IC-MPI

MPN: V3570

Manufacturer: Deutschmann Automation

Delivery: Ships within 7-14 business days
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

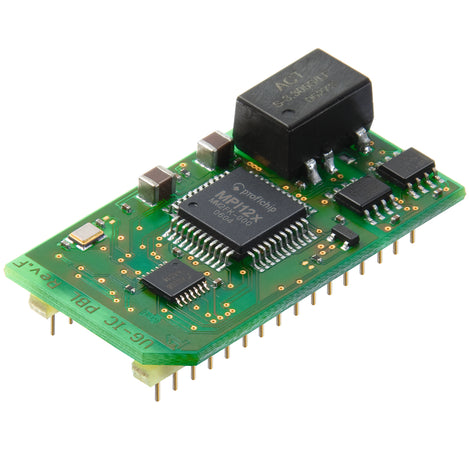

UNIGATE IC is a complete Single Chip Siemens MPI solution in a 32 pin DIL (dual in-line) package. With a space of 45 x 25 mm the Unigate IC contains all required components: microcontroller, Flash, RAM, Profibus/MPI controller and bus interface components, e. g. optocoupler and bus driver. The UNIGATE IC is to be connected to the microprocessor of your design or it can be operated Stand-Alone. The Unigate IC Siemens MPI is certified and proven through testing with applications and many commercially available Siemens MPI masters. The integrated microprocessor handles the complete Siemens MPI data traffic and removes the burden from the attached processor. The protocol between the Unigate IC and the attached processor is handled using a Script. This Script is generated with the free PC-tool Protocol Developer and it is optimally adjusted to the final product and the requirements of the Siemens MPI Master. The hardware and software interfaces of the Unigate IC modules are standardized, thus they are interchangeable without changing any hardware or software. Volume and OEM pricing available.

CUSTOM PROTOCOLS:
The Unigate IC Siemens MPI allows for the quick development of custom applications using its powerful scripting language. Scripts are written using the Protocol Developer Tool. If you need a custom protocol and scripting is not for you, Grid Connect offers scripting services at reasonable rates (call for details).

Features

  • Complete Siemens MPI
  • Max. 240 byte input and 240 byte output data
  • Stand-Alone operation via shift register
  • Script language for optimal adaptation to your field device
  • Easy configuration from MS Windows® using the WinGate tool
  • Develop customized scripts with the free Protocol Developer software tool
  • Scripts are portable between all other UNIGATE CL or IC Gateways

Documents and Drivers

Specifications

BAUD RATE

  • Siemens MPI: Up to 12 Mbps
  • Serial: Up to 625 kbps

CERTIFICATIONS

CE

CONNECTOR(S)

Connection via UART interface to the existing microprocessor

CURRENT

Typical 250mA

DIMENSIONS

45 x 25 x 20 mm

INCLUDED SOFTWARE

MS Windows®-based WinGate configuration software, and Protocol Developer script development software

INTERFACE(S)

  • Isolated Siemens MPI interface
  • Synchronous shift register interface
  • 2nd Serial interface for Script download, configuration, Debug-function

MOUNTING

DIL32 Unigate IC Standard

MPN

V3570

TEMPERATURE RANGE

Operating: -40°C to +85°C

VOLTAGE

Input: +3.3VDC
