Ixxat USB-to-CAN FD compact, isolation, SUB-D9

$530.00

Leave a review

SKU: GC-IXT-CAN-USB-FD

MPN: 1.01.0351.12001

Manufacturer: Ixxat

Delivery: Ships within 3-4 weeks
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

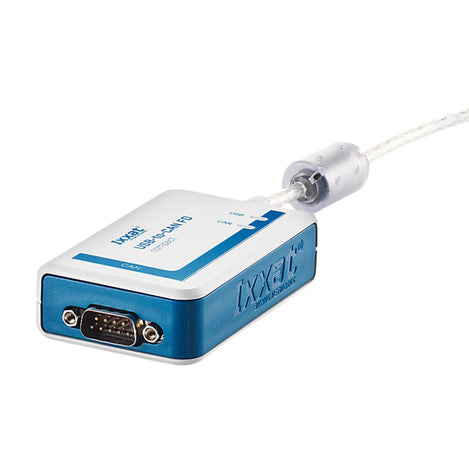

The Ixxat USB-to-CAN FD compact is a galvanically isolated PC interface adapter that connects a computer to a CAN or CAN FD bus network via a D-Sub 9 connector. Built around an 80 MHz IFI CAN_FD IP controller, it supports a single switchable CAN/CAN FD channel with data rates up to 8 Mbit/s. This capability makes it well suited for testing, development, maintenance, and control tasks in industrial and automotive environments.

The adapter connects to the host PC over native USB 2.0 hi-speed (480 Mbit/s, compatible with USB 3.x), and is bus-powered, drawing up to 300 mA at 5 V DC. Galvanic isolation (800 V DC / 500 V AC for 1 min.) protects connected equipment from voltage transients.

VCI Driver Package

Ixxat's VCI driver package (Windows/Linux) provides a common driver interface across the Ixxat product family. It includes the canAnalyser3 Mini bus monitoring tool for first-step network analysis.

VCI Server Model
VCI Application to Network


Pin Allocation


Package contents

  • USB to CAN FD interface device
  • User manual
  • CAN driver VCI
  • canAnalyser Mini - a simple CAN monitor

Features

  • Dual CAN/CAN FD support – single switchable channel handles both CAN 2.0 and CAN FD traffic
  • High-speed CAN FD performance – data rates up to 8 Mbit/s for fast, reliable bus communication
  • Native USB 2.0 hi-speed – 480 Mbit/s throughput, compatible with USB 3.x hosts
  • Galvanic isolation – 800 V DC / 500 V AC protection against overvoltage and ground loops
  • High-precision time-stamping – accurate on-board timestamps for data tracking and diagnostics
  • Low-latency, high-throughput data handling – efficient processing for demanding applications
  • Common driver interface – Ixxat VCI driver package simplifies switching between PC interface types
  • Cross-platform programming support – APIs for Windows (VCI), Linux (ECI), and real-time OS on request
  • Bus-powered – no external power supply needed; draws power directly from USB
  • Included analysis software – Ixxat canAnalyser3 Mini bundled with the VCI V4 download

Documents and Drivers

Documentation

Ixxat USB-to-CAN FD compact Brochure

Ixxat USB-to-CAN FD compact Datasheet

Ixxat USB-to-CAN FD User Manual

Specifications

Category

Specification

CAN Mode

CAN high-speed (ISO 11898-2:2016)

CAN Controller

IFI CAN_FD IP / 80 MHz

CAN Baud Rate

10 kbit/s to 1 Mbit/s

CAN FD Mode

  • ISO CAN FD (ISO 11898-1:2015)
  • non-ISO CAN FD

CAN FD Transceiver

MCP2562FDT

CAN FD Baud Rate

  • Arbitration up to 1000 kbit/s
  • data rate up to 8000 kbit/s (verified by testing
  • user-defined bit rates supported

USB Interface

  • USB 2.0 hi-speed (480 Mbit/s)
  • compatible with USB 3.x

Connectors

  • 1 x D-Sub 9 (CAN)
  • 1 x USB Type-A

Isolation

  • 800 V DC for 1 sec
  • 500 V AC for 1 min.

Power Supply

5 V DC via USB port

Current Consumption

  • 32 mA nominal
  • 300 mA max

Dimensions (W x H x D)

50 x 80 x 22 mm / 1.97 x 3.15 x 0.87 in

Weight

Approx. 100 g / 3.5 oz

Operating Temperature

-20 °C to +70 °C / -4 °F to +158 °F

Storage Temperature

-40 °C to +85 °C / -40 °F to +185 °F

Protection Class

IP40

Housing Material

  • PC/ABS
  • UL 94 V0

Certifications

CE, FCC, UKCA
