This product is discontinued and no longer available.

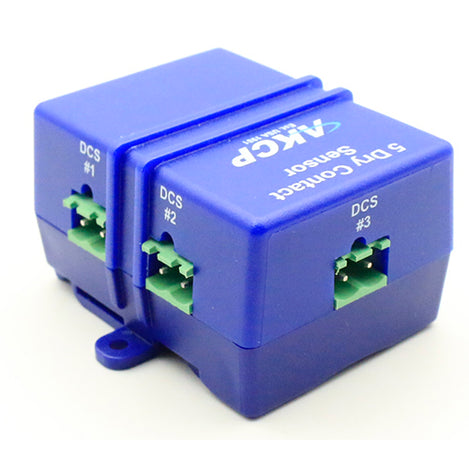

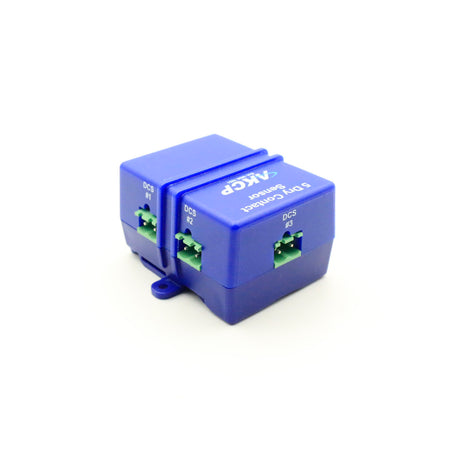

Wireless 5 Dry Contact Sensor




Wireless 5 Dry Contact Sensor
Product Images
We Have You Covered
Product Information
Product Description

Wireless monitoring of alarm panels, or any device with a dry contact output. Communicate dry contact status over the Wireless Tunnel™ network to an AKCP Gateway. When a dry contact status changes it is instantly broadcast to the gateway which can alarm, send notifications or actuate a relay.
Features
- Powered by 4x AA batteries or via micro-USB port
- SNMP interface for alarm/normal status
- SNMP traps can be sent when the sensor is in a critical state
- SNMP polling is possible via SNMPget.
- Web browser interface is available
- When an alarm condition is activated the description and location of the fault can be sent via an email or SNMP trap
- 5VDC or 12VDC powered
- IP66 rated waterproof enclosure
- LED indicators for power, status and RSSI
- Optional DIN rail or pipe mounting accessories
Documents and Drivers
Documentation
Wireless 5 Dry Contact Input Datasheet
Specifications
Communications Cable
RJ-45 jack to sensor using UTP Cat 5 wire
Dimensions
- 56 x 55 x 33.3 mm
- 1000Ft (305m) cable length with approved low capacitance shielded cable or UTP
Input/Output
Up to 5 dry contact inputs per RJ-45
- making up to 10 Dry Contact Inputs in sensorProbe2
- making up to 20 Dry Contact Inputs in sensorProbe2+
Measurement Range
Alarm or Normal
Measurement Rate
- Multiple readings every second
- Normal input state is settable under software
Mounting
- DIN rail
- Screw mounting
MPN
WTS-DC5
Number of Sensors
5
Power Source
Powered by the controller unit. No additional power needed
Sensor(s)
Open / Closed contact switch (input only)
Voltage
- Control Voltage Range: 5 volts pulled-up dry contacts*
- *Dry Contacts are not isolated, don't connect any voltage source
