This product is discontinued and no longer available.
Wireless Tunnel Sensor - Analog to Digital Converter
Wireless Tunnel Sensor - Analog to Digital Converter
Product Images

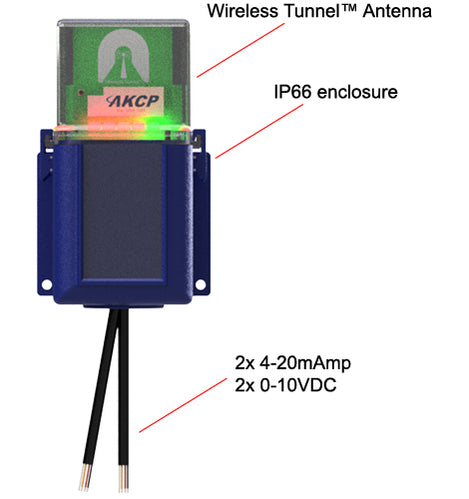

Wireless Tunnel Sensor - Analog to Digital Converter
SKU: GC-AK-WTS-A2D
MPN: WTS-A2D-US
Manufacturer: AKCP Co Ltd.
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
Turn any sensor with a 4-20mAmp or 0-10VDC output into a Wireless Tunnel™ sensor that is compatible with the AKCP monitoring system.
A wide range of third party and scientific grade sensors use this voltage or current scale output, which opens up the AKCP monitoring system to a wide range of applications.
* All analog inputs are not isolated, they all share the same ground.
* Care should be taken on voltage potentials when connecting the WT-AD inputs to sources.
Features
- 4x AA Batteries (batteries not included)
- 5VDC or 12VDC powered
- LED indicators for power, status and RSSI
- Optional DIN rail or pipe mounting
Documents and Drivers
Documentation
Wireless Analog to Digital Converter Sensor Datasheet
Specifications
Certifications
FCC Part15C, CE EN300220-2
Current
2x Analog input 4-20mA current
Dimensions
76 x 77 x 120mm
Humidity
Min. 20% – Max. 80% (Non-Condensing)
Indicators LED
- Mode
- Status
- RSSI
Interface(s)
Micro-USB port for powering, adding and upgrading to the Gateway base unit
Measurement Accuracy
Maximum ±0.1V
Measurement Range
- 0-10V
- 0-20mA current
Measurement Resolution
0.1V increment
Mounting
Wall hanging, DIN rail, Pipe Clamp
MPN
WTS-A2D-US
Number of Sensors
7 (3 + 4)
Power Consumption
Average 12 mWatt, 10uA in Idle, Up to 10 years of battery life
Power Source
4xAA batteries or via micro-USB port
Radio
LoRa (R) Radio Regional plans: US915: 903~915Mhz, Max TX Power +17dBm
Temperature Range
-35ºC to 80ºC (-31º to 176ºF)
Voltage
2x Analog input voltage
