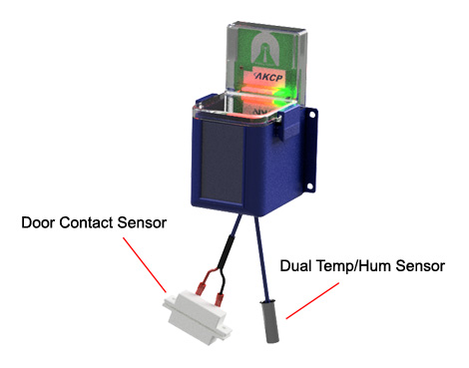

Wireless Dual Temperature & Humidity Sensor with Door Contact: Base Unit

$310.00

Leave a review

SKU: GC-AK-WTS-THD

MPN: WTS-THD-US

Manufacturer: AKCP

Delivery: Ships within 7-14 business days
Qualifies for Free shipping

Cable Length

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

Monitor temperature and humidity in cabinets, refrigerators and rooms. With the integrated door contact sensor you are also able to keep track of your security condition, or ignore temperature fluctuations when the door is opened. IP66 rated enclosure provides weatherproofing for use in outdoor environments. Easy installation and pairing with AKCP Wireless Tunnel™ Gateway.

Order Summary



SKU

Cable Length

Manufacturer Part # (MPN)

GC-AK-WTS-THD Base Unit
WTS-THD-US
GC-AK-WTS-THD-5 With 5ft Cable WTS-THD-5-US

Features

Features of the Wireless Dual Temperature & Humidity Sensor with door contact


  • 4x AA Batteries, with 10 year battery life*
  • 5VDC or 12VDC powered
  • IP66 Waterproof enclosure
  • Custom cable lengths to position sensor and antenna in optimal position.
  • *10 year battery life based on data broadcast once every 15 minutes at an ambient temperature of 25°C

Specifications

ACCURACY

25°C ±2%RH

CERTIFICATIONS

FCC Part15C, CE EN300220-2

DIMENSIONS

76 x 77 x 120mm

HUMIDITY

Min. 20% – Max. 80% (Non-Condensing)

INPUT/OUTPUT

0 to 100% Relative humidity

INTERFACE(S)

Micro-USB port for powering, adding and upgrading to the Gateway base unit

MEASUREMENT ACCURACY

Typical :

  • ±0.3 from -40ºC to +75ºC
  • ±0.4 from -40ºF to +167ºF

  • Maximum :
  • ±0.4 at -40ºC and ±0.4 at +75ºC
  • ±0.7 at -40ºF and ±0.7 at +167ºF
  • MEASUREMENT RANGE

    -40°C to +75°C
    -40°F to +167°F
    0 to 100% Relative humidity

    MEASUREMENT RESOLUTION

    0.1°C increments
    0.2°F increments
    1%RH increments, 0.01%RH sensor reading

    MOUNTING

    Wall hanging, DIN rail, Pipe Clamp

    MPN

    WTS-THD

    NUMBER OF SENSORS

    7 (3 + 4)

    POWER CONSUMPTION

    Average 12m Watt, 10uA in Idle, up to 10 years battery life

    POWER SOURCE

    4xAA batteries or via micro-USB port

    RADIO

    LoRa (R) Radio Regional plans: US915: 903~915Mhz, Max TX Power +17dBm

    SENSOR(S)

    Switch type dry contact: open or close
    Dry contact counter

    TEMPERATURE RANGE

    Min. -35° C – Max.80° C (-31°F to +176°F)
