Wireless Pipe Pressure Sensor
Wireless Pipe Pressure Sensor
Product Images
Wireless Pipe Pressure Sensor
SKU: GC-AK-WTS-PPS
MPN: WTS-PPS-US
Manufacturer: AKCP Co Ltd.
We Have You Covered
Product Information
Product Description
Digital pressure gauge for monitoring all kinds of liquids and gasses. Battery Powered, Wireless Tunnel™ Technology. Remote monitoring via the internet, alerts and alarms when pressures are out of pre defined parameters. Upgrade existing analog gauges. Retain your existing gauges with our installation kit. Easy setup and pairing with AKCP Wireless Tunnel™ gateway.
Features
- 4x AA Batteries, with 10 year battery life*
- 5VDC or 12VDC powered
- IP66 Waterproof enclosure
- Multiple mounting options

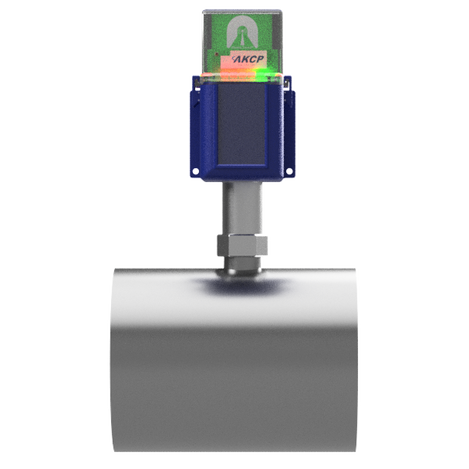

- Pressure Sensor Only: KCP Wireless Tunnel™ pressure sensors monitor and alert when pressure is outside of pre defined parameters. The sensor can be mounted in a variety of ways to suit your own requirements.

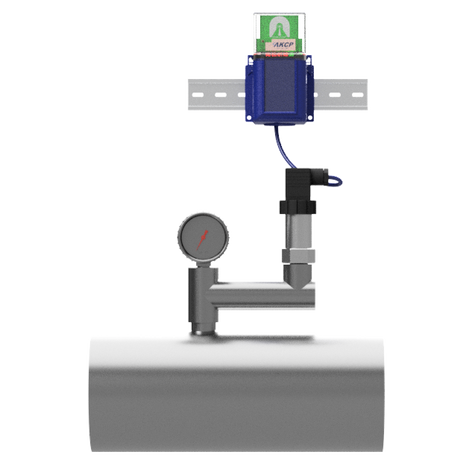

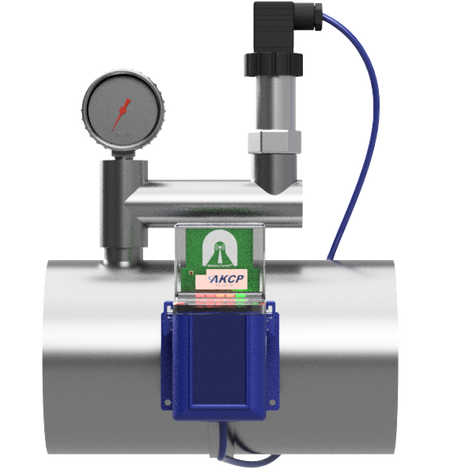

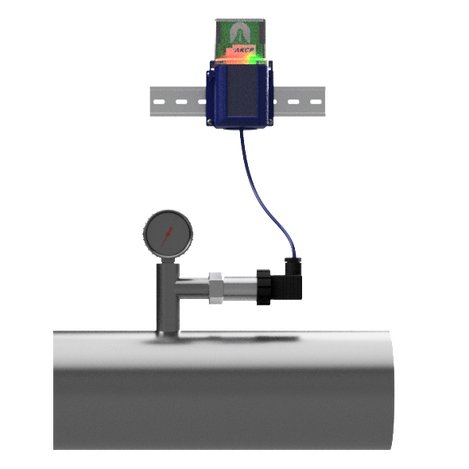

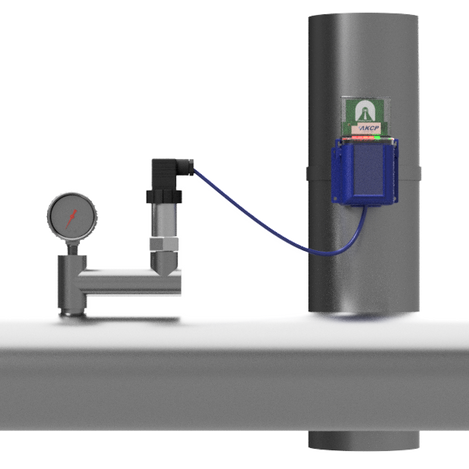

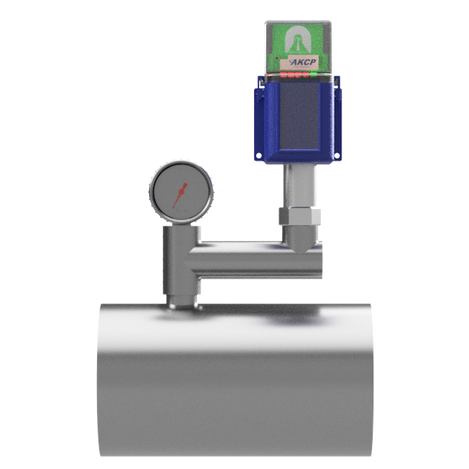

- Pressure Sensor With Gauge: Use AKCP pressure sensors for remote monitoring alongisde your existing analog gauges. Mounting of the sensor matches your installation requirements.
- *10 year battery life based on data broadcast once every 15 minutes at an ambient temperature of 25°C.
Documents and Drivers
Documentation
Wireless Pipe Pressure Sensor Datasheet
Specifications
Certifications
FCC Part15C, CE EN300220-2
Dimensions
76 x 77 x 120mm
Humidity
Min. 20% – Max. 80% (Non-Condensing)
Indicators LED
- Mode
- Status
- RSSI
Interface(s)
Micro-USB port for powering, adding and upgrading to the Gateway base unit
Measurement Accuracy
Maximum ±0.5% FS
Measurement Range
0-1MPa (0-10 Bar, 0-145 PSI)
Measurement Resolution
1KPa (0.01 Bar, 0.15 PSI)
Mounting

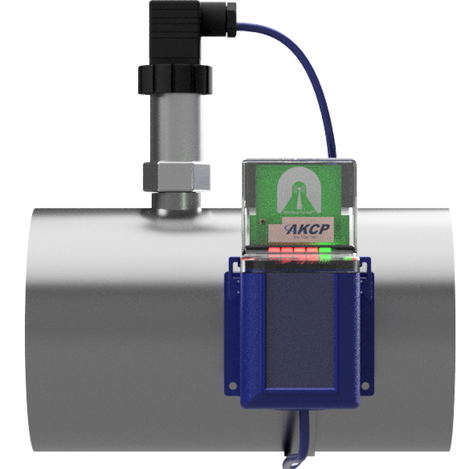

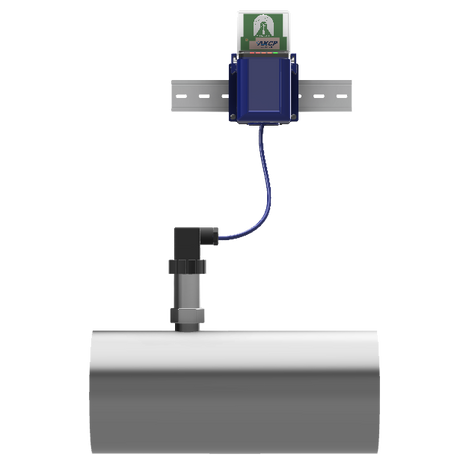

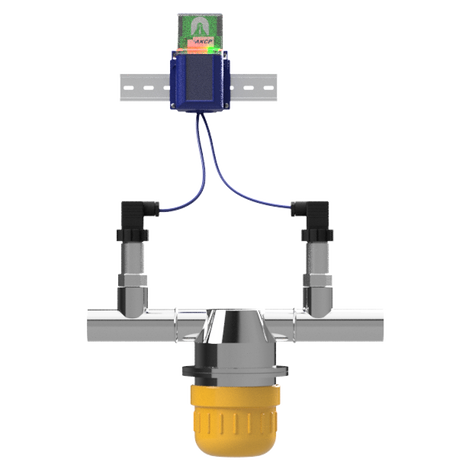

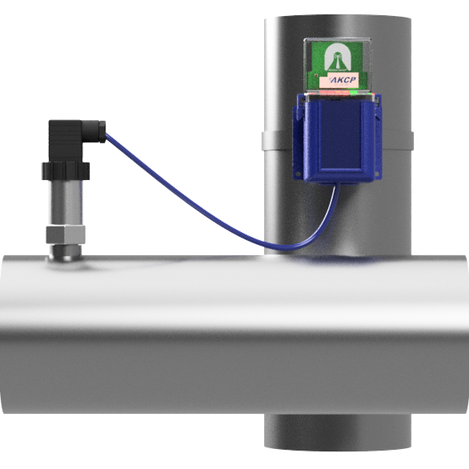

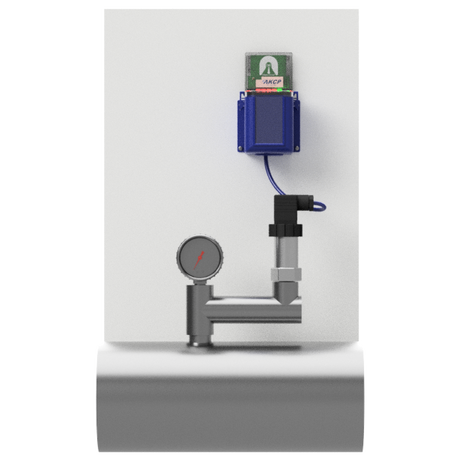

Wall hanging, DIN rail, Pipe Clamp
MPN
WTS-PPS
Number of Sensors
4 (3 + 1)
Power Consumption
Average 12 mWatt, 10uA in Idle, Up to 10 years of battery life
Power Source
4xAA batteries or via micro-USB port
Radio
LoRa (R) Radio Regional plans: US915: 903~915Mhz, Max TX Power +17dBm
Sensor(s)
Piezo resistive pressure sensor
Temperature Range
-35°C to 80°C (-31°F to +176°F)
