Wireless Tank Depth Pressure Sensor
Wireless Tank Depth Pressure Sensor
Product Images
Wireless Tank Depth Pressure Sensor
SKU: GC-AK-WTS-TDPS-2
MPN: WTS-TDPS-2-US
Manufacturer: AKCP Co Ltd.
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
Monitor tanks of depths up to 20 meters. Often tanks are located in outdoor or difficult to cable areas. The WTS-TDPS is battery powered, or can be powered from a 5V DC or 12VDC source. Track fuel usage, graph the tank level, receive alerts when tank levels are critical. No more constraints on maximum cable lengths from the base unit. Easy installation and pairing with AKCP Wireless Tunnel™ Gateways.
Features

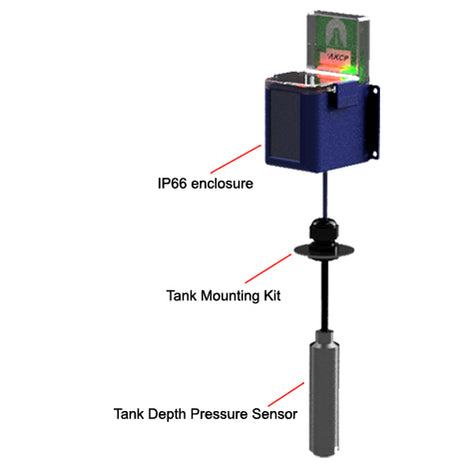

- 4xAA Battery powered, with 10 year life*
- Tank mounting kit with cable gland
- IP66 rated enclosure
- Monitor all kinds of liquids and fuels.
- *10 years at 25°C broadcasting every 30 minutes
Specifications
Accuracy
- Distance: 0–2000 cm (65 ft) with 1% accuracy for water
- Full Scale: ±1%FS (Max)
Certifications
FCC Part15C, CE EN300220-2
Chemical Resistance
Petrol, Diesel, Water
Dimensions
- 76 x 77 x 120mm
- Sensor is calibrated for specific tank size. Please select for either max 5, 10, 15 or 20 meter tank when ordering. Accurate measurement for non-linear size tank for static liquid level, via linearization
- Leader cable from the sensor probe to the WTS box is 5/10/15/20 meters respectively based on depth type ordered.
Humidity
Min. 20% – Max. 80% (Non-Condensing)
Indicators LED
- Mode
- Status
- RSSI
Interface(s)
Micro-USB port for powering, adding and upgrading to the Gateway base unit
Measurement Method
Hydrolic Pressure in mH2O (Fluid column pressure)
Mounting
- Wall hanging, DIN rail, Pipe Clamp
- Probe Mounting: Suspended inside the tank by leader cable- Comes fully assembled, only needs installation
MPN
WTS-TDPS-2
Number of Sensors
5 (3 + 2)
Power Source
4xAA batteries or via micro-USB port
Radio
LoRa (R) Radio Regional plans: US915: 903~915Mhz, Max TX Power +17dBm
Sensor(s)
- Liquid Height
- Tank volume
Temperature Range
-35°C to +80°C (-31°F to +176°F
