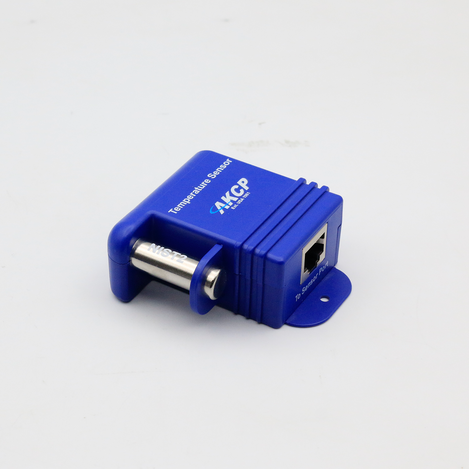

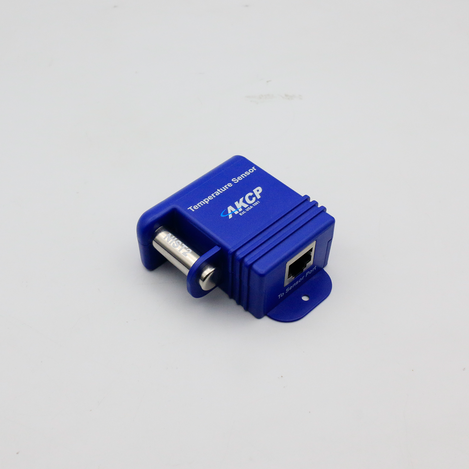

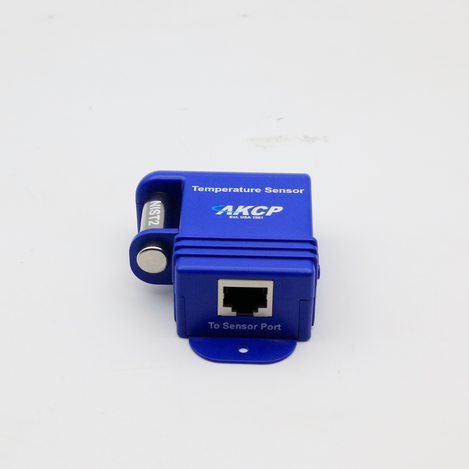

Wireless Temp Sensor w/ Calibration check: No Cable

$230.00

Leave a review

SKU: GC-AK-WTS-NIST2

MPN: WTS-NIST2-US

Manufacturer: AKCP

Stock Status: Out of Stock

Delivery: Ships within 3-4 weeks
Qualifies for Free shipping

Cable Length

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

Wireless Tunnel™ NIST2 sensors feature 2x NIST traceable, calibrated temperature sensors in a single stainless steel tube. Working as a pair they check each others values once a second for accuracy. If we deteect the sensors are out of acceptable tolerances an alert is sent warning that the sensor requires re-calibration. NIST4 sensors come with 3x NIST traceable, calibrated temperature sensors in a single stainless steel tube. They work in pairs, with the averages of each pair averaged to give an overall reading. Improved accuracy and calibration checks with failover. Should any pair be out of calibration that value is ignored and an alert generated to warn that a pair is out of calibration.

Order Summary



SKU

Cable Length

Manufacturer Part # (MPN)

GC-AK-WTS-NIST2 No Cable WTS-NIST2-US
GC-AK-WTS-NIST2-5 5ft WTS-NIST2-5-US

Features

Features of the Wireless Temp Sensor w/ Calibration check


  • 4x AA Battery powered, with 10 year life*
  • USB 5VDC external power.
  • 12VDC external power.
  • Custom sensor cable length up to 15ft to position sensor in optimal location.
  • NIST2 dual sensor calibration integrity check.
  • *10 years at 25°C broadcasting every 15 minutes. Batteries not included.

Specifications

CERTIFICATIONS

FCC Part15C, CE EN300220-2, NIST Calibration Certificate

DIMENSIONS

76 x 77 x 120mm

HUMIDITY

Min. 20% – Max. 80% (Non-Condensing)

INDICATORS LED

LED indication for

  • Mode
  • Status
  • RSSI
  • INTERFACES

    Micro-USB port for powering, adding and upgrading to the Gateway base unit

    MEASUREMENT ACCURACY

    Typical :

  • ±0.2 from 0ºC to +75ºC
  • ±0.4 from 32ºF to +167ºF

  • Maximum :
  • ±0.4 at -40ºC and ±0.4 at +75ºC
  • ±0.7 at -40ºF and ±0.7 at +167ºF

  • Dual sensor calibration check – alert when out of calibration
    WTS-NIST3 sensors include second pair for failover

    MEASUREMENT RANGE

    -40°C to +75°C (-40°F to +167°F)

    MEASUREMENT RESOLUTION

    0.1°C increments
    0.2°F increments

    MOUNTING

    Wall hanging, DIN rail, Pipe Clamp

    MPN

    WTS-NIST2

    NUMBER OF SENSORS

    6 (3 + 3)

    POWER CONSUMPTION

    Average 12m Watt, 10uA in Idle, up to 10 years battery life.

    POWER SOURCE

    4xAA batteries or via micro-USB port

    RADIO

    LoRa (R) Radio Regional plans: US915: 903~915Mhz Max TX Power +17dBm

    TEMPERATURE RANGE

    Min. -35° C – Max.80° C (-31°F to +176°F)
