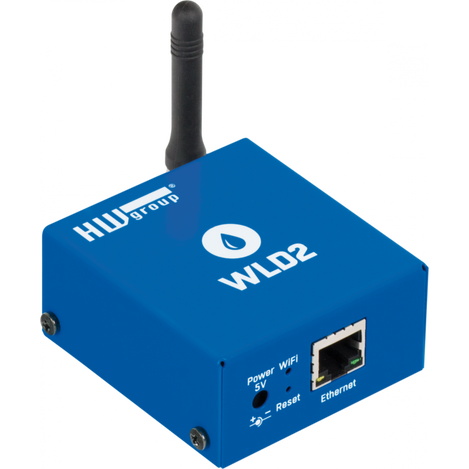

WLD2 PoE: 4 Zone Water Leak Detector with Alerts
WLD2 PoE: 4 Zone Water Leak Detector with Alerts
Product Images
WLD2 PoE: 4 Zone Water Leak Detector with Alerts: WLD2 Only
$281.80
SKU: GC-HWG-WLD2-POE
MPN: 600717
Manufacturer: HW Group sro
We Have You Covered
Product Information
Product Description
WLD2 is a WiFi / Ethernet water leak detector with support for HTTPS, SNMP, e-mails, and PoE. Capabilities includes alarms, zone creation, WiFi connectivity, and portals.
This detector requires a WLD sensing cable which is included in the WLD2 kit option and a SensDesk Technology portal (HWg-cloud.com portal included free with both options.).
.
Alarms
Even the smallest volumes of liquids touching the WLD sensing cable (anywhere along its entire length) can trigger an alarm. Whether its condensation from A/C pipes or water leaks, you will receive alarms before costly damages occur. In addition to water alerts, the device also detects disconnected or damaged sensing cables for increased reliability.
Zone Creations
WLD2 PoE supports 4 zone creation. There are 4 WLD zone inputs for external WLD detecting cables that can be connected to the WLD2 to help locate the leak more accurately. Each zone can be up to 185 meters (607 feet) long. A different phone number can be called for each zone.
WLD2 Installation and Creation of Zones Diagram
Wifi Connectivity
The WLD2 PoE water leak detector can be installed in remote places via WiFi connectivity. In case of flooding, it can send an alert via e-mail, SNMP trap, or the SensDesk cloud. With an external SMS gateway by HW group, it can send a text message or dial a phone number. In critical applications, it can also communicate via wired Ethernet and can be powered with PoE.
Portals
A portal is required and the WLD2 PoE unit includes a free HWg-cloud.com portal. WLD2 can also be connected to a SensDesk portal, as well as to standard monitoring systems thanks to SNMP and SNMP Trap support.
Independent for each sensing cable, water occurrence can be signaled by switching a remote output (e.g. to start a siren) over the network (Box-2-Box mode with a Poseidon2 or Damocles2 unit (both sold separately). SensDesk Technology completes the HWg monitoring Ecosystem (sensors + devices + SensDesk Technology portal) and gets you long-term reliable alerts, graphs, PDF reports, open API, remote device management, etc.
Applications and Usages
• Water detection under raised floors.
• Leaky pipe detection (cable wrapped along the pipe).
• Protection against floods from skylights – sensing cable routed along the walls.
• Detection of water leaks in drip trays.
• Detection of water leaks under air-conditioning outlets.
The right Water Detection and early alert are essential in a lot of businesses, such as data centers, etc. HW group's Water Leak Detection System is a complex solution developed to protect your facility against costly water damage that might threaten you.
Order Summary
| SKU | Sensor Package | Package Contents | Manufacturer Part # (MPN) |
| GC-HWG-WLD2-POE | WLD2 Only |
|
600717 |
|
|
|||

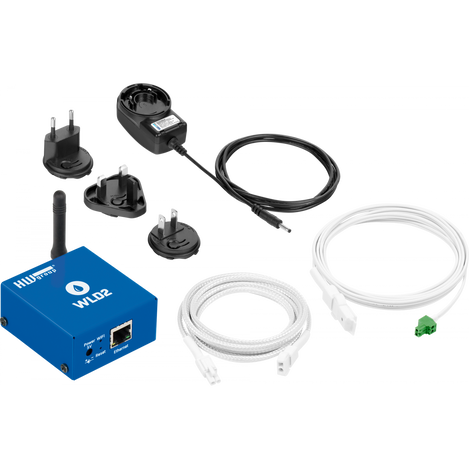

| GC-HWG-WLD2-POE-SET | WLD2 Kit |
|
600787 |
Features
- Intuitive WWW interface for fast and easy installation.
- Support for automatic network configuration via DHCP.
- Ability to communicate over WiFi (external antenna for extended range, support for 2.4GHz, 2.11 b/g/n) and Ethernet at the same time.
- Up to 4 detection zones (each max. 185m), the source of the leak can be identified more easily.
- WLD2 signals the following states: OK / Flooded / Sensing cable fault.
- Flooding alerts can be send as a standard e-mail, or as a text message (SMS) through a SMS gateway.
- Detected leaks or WLD sensing cable disconnections can be signaled by activating a relay output at a Poseidon2 or Damocles2 unit (both units sold separately) over the Ethernet.

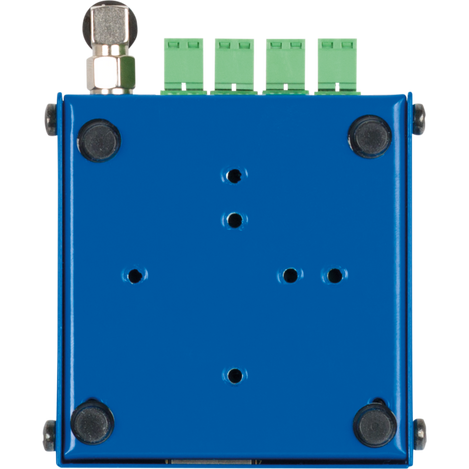

- WLD2 can be easily mounted on a wall or in a 19" cabinet.
- Powered over Ethernet (PoE) or from an external adapter.
Documents and Drivers
Documentation
WLD2 POE Flyer
WLD2 POE User Manual
WLD2 POE First Steps
Comparison of HWg Standalone Monitoring Water Leak Detector Products
Certificates
CE Declaration
Specifications
Ethernet
Interface
RJ45 (10/100BASE-T)
Supported protocols
IP: ARP, TCP/IP (HTTP, HTTPS, SNTP, SMTP, HWg-Push, netGSM, TLS), UDP/IP (SNMP)
SNMP
Version 1 fully supported, some parts version 2
WiFi
Supported standards
802.11 b/g/n
Frequency
2.4GHz
Output
- +19.5 dBm output power in 802.11b mode
- +16 dBm for 802.11n
Security
WEP / WPA / WPA2 PSK / WPA2 TSK / WPS
Antenna
Internal
External sensors (WLD sensing cables)
Number/Connectors

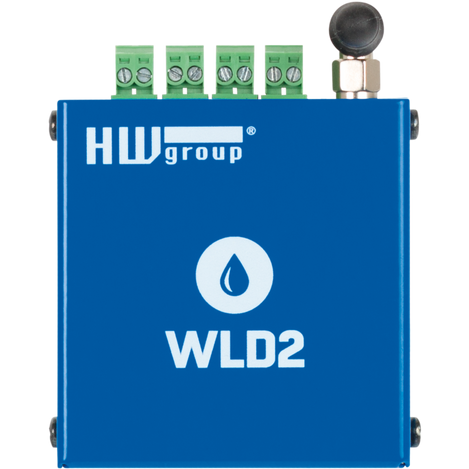

4 zones: WLD1, WLD2, WLD3, WLD4 / terminal blocks
Type
WLD sensing cable A
Connector
Terminal block
Sensor states
0 = OK, 1 = Flooded, 2 = Cable disconnected
Sensing cable length
Each zone max 185m (with non-sensing prolong cable included)
Cable extension
Sensing cable can be extended with prolong cable, 185 m in total per zone (AWG 24)

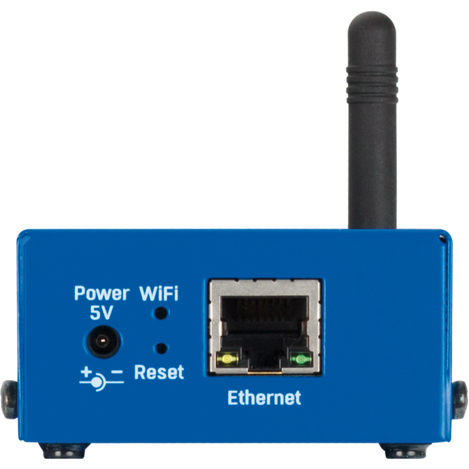

Power supply
Power voltage
5V / 250 mA
Connector
Jack Ø 3.5 × 1.35 / 10 [mm]
PoE (Power over Ethernet)
RJ45 - IEEE 802.3af Class 0
LED
LINK
Green – Ethernet connection state
Activity
Yellow – Ethernet activity
Alarm
- Port 1 – Alarm SENS – Shines if alarm active on sensor
- Port 2 – Alarm DI – Shines if alarm active on sensor
IN
Yellow – activation of the contact
WiFi
Blue – connection state in operation (shining), search indicator (flashing slowly) and connection (flashing quickly)
Other Parameters
Reset
Restore default settings: hold for 5 seconds after connecting power supply
Temperature
-10°C ~ 60°C (14°F ~ 140°F) (range of device operating temperatures – may not correspond to sensor range)
Dimensions
65 x 80 x 30 mm (2.6 x 3.2 x 1.2 in)
Weight
500 g (1.1 lbs)
Elmag. radiation
CE / FCC Part 15, Class B
Elmag. compatibility
EN 55022, EN 55024, EN 61000
WiFi Radio
