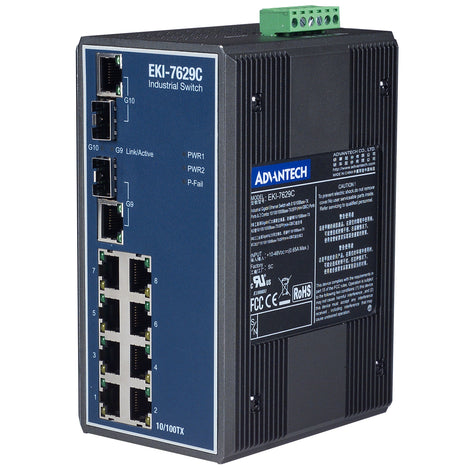

8 Ethernet + 2 Fiber / Copper Port Industrial Switch
8 Ethernet + 2 Fiber / Copper Port Industrial Switch Front
8 Ethernet + 2 Fiber / Copper Port Industrial Switch Side
8 Ethernet + 2 Fiber / Copper Port Industrial Switch
Product Images
8 Ethernet + 2 Fiber / Copper Port Industrial Switch
SKU: GC-EKI-7629C-AE
MPN: EKI-7629C-AE
Manufacturer: Advantech
We Have You Covered
Product Information
Product Description
The EKI-7629C 8 Port Unmanaged Industrial Switch supports supports 8 10/100 Fast Ethernet Ports with 2 Gigabit Fiber Optic/Copper Combo Ports. It comes in an compact metal housing which rates IP30 helping to protect the switch from dusty industrial environments. The standard Ethernet ports can be used for up-linking wide-band paths in distances less than 100 m. Additionally replaceable SFP modules can be used for the application of wide band uploading and long distance transmissions.
This industrial switch features a redundant power input design, allowing for +12 ~ 48 V DC. The switch features an Overload Current Resettable Fuse which secures the system from overload currents. Additionally it also features Power Polarity Reverse Protect which tolerates reverse power wiring.
Each port on the EKI-7629C has 2 LED's which display the collision status and Link status transmission speed. A Relay Output is also available for an event alarm. In case of a power failure, the built-in LED will notify administrators by activating an alarm. The Hardware status can be verified by engineers by simply checking the LED, making troubleshooting quick and easy.
Features
- 2 Gigabit Copper/SFP combo ports
- 8 Fast Ethernet Ports
- Auto Negotiation and Auto MDI/MDI-X
- SFP Socket for Flexable Fiber Expansion
- DIN-Rail and Wall Mountable
- IP30 Rated Compact Metal Housing
- Redunant 12 ~ 48VDC Power Input and P-Fail Relay
Documents and Drivers
Documentation
EKI-7629C-AE Datasheet
Specifications
Certifications
- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950
- Shock: IEC60068-2-27
- Freefall: IEC60068-2-32
- EMC: USA: FCC Part 15 CISPR 22, EU: EN55011, EN6100-6-4, EN55022 Class A, EN55024, IEC6100-4-2/3/4/5/6/8, EN61000-6-2
- Vibration: IEC60068-2-6
Connector(s)
- Fiber: 2 x RJ-45/SFP (Mini-GBIC) Combo Ports
- Ethernet: 8 x RJ-45
- Power & Relay: 6-pin removable screw terminal block
Dimensions
79 x 152 x 105 mm
Enclosure
IP30, Metal Shell with Solid Mounting Kits
Fault Output
1 Relay Output
Humidity
5% to 95% (non-condensing)
Indicators LED
- System: P1, P2, P-Fail
- Gigabit Copper: Link/Activity, Speed (1000 Mbps)
- Gigabit SFP: Link/Activity
Interface(s)
LAN: 100 Base-TX, 10/1000 Base-T, Optional 100 Base-FX, 1000 Base-SX/LX/LHX/XD/ZX/EZX
Mounting
DIN Rail, Wall
MPN
EKI-7629C-AE
MTBF
295,000 hrs
Power Consumption
Max. 6.5 W
Security/Protection
- Overload: 1.6A @ 12 VDC (Resetable Fuse)
- Reverse Polarity: Present
Standards
IEEE 802.3, 802.3x, 802.3u, 802.3ab, 802.3z
Temperature Range
- Storage: -40°C to +75°C (-40°F to +185°F)
- Operating: -10°C to +60°C (14°F to 140°F)
Transmission Distance
- Ethernet: Up to 100 m (4-wire CAT5e, CAT6 Cable)
- Gigabit Fiber: Up to 110 km (Depending on SFP)
Transmission Speed
- Ethernet: Up to 10/100 Mbps Auto-Negotiation
- Gigabit Copper: 10/100/1000 Mbps Auto-Negotiation
- SFP: Up to 1000 Mbps
