This product is discontinued and no longer available.

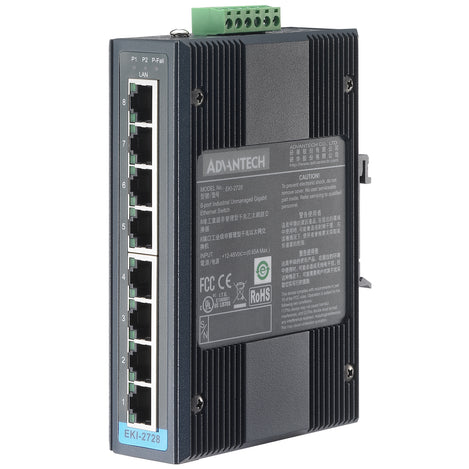

8 Port Industrial Gigabit Switch

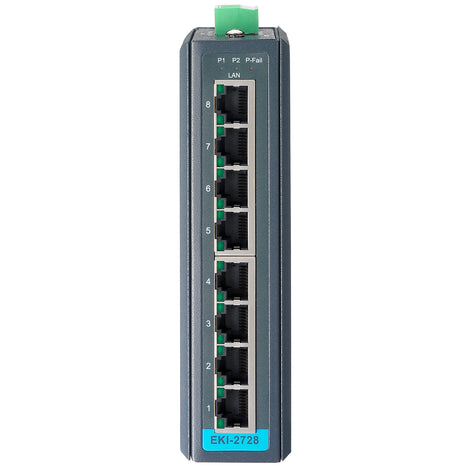

8 Port Industrial Gigabit Switch Front

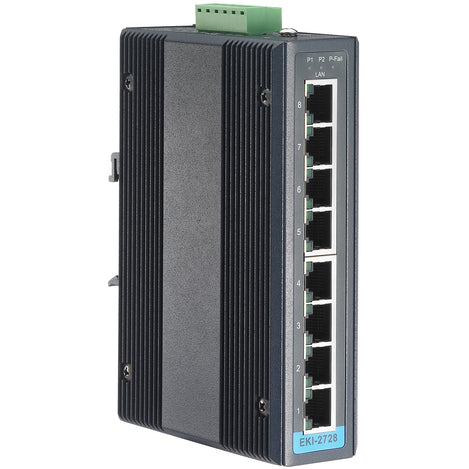

8 Port Industrial Gigabit Switch Side
8 Port Industrial Gigabit Switch
Product Images
8 Port Industrial Gigabit Switch
SKU: GC-EKI-2728-BE
MPN: EKI-2728-BE
Manufacturer: Advantech
We Have You Covered
Product Information
Product Description
The EKI-2728 8 Port Unmanaged Industrial Gigabit Switch supports Gigabit Ethernet for a fast and reliable industrial solution. It comes in an compact metal housing which rates IP30 helping to protect the switch from dusty industrial environments.
This industrial switch features a redundant power input design, allowing for +12 ~ 48 VDC. The switch features an Overload Current Resettable Fuse which secures the system from overload currents. Additionally it also features Power Polarity Reverse Protect which tolerates reverse power wiring.
Each port on the EKI-2728 has 2 LED's which display the collision status and Link status transmission speed. A Relay Output is also available for an event alarm. Incase of a power failure, the built-in LED will notify administrators by activating an alarm. The Hardware status can be verified by engineers by simply checking the LED, making troubleshooting quick and easy.
Features
- 10/100/1000 Mbps Auto Negotiation
- 8 Ports which support Gigabit Ethernet and Auto MDI/MDI-X
- DIN-Rail and Wall Mountable
- IP30 Rated Compact Metal Housing
- Support for Jumbo Frame Trasmission (Up to 9 kb)
- Redunant 12 ~ 48VDC Power Input and P-Fail Relay
- Broadcast Storm Protection
Documents and Drivers
Documentation
EKI-2528-BE Datasheet
Specifications
Certiications
- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950
- Shock: IEC60068-2-27
- Freefall: IEC60068-2-32
- EMC: USA: FCC Part 15 CISPR 22 EU: EN55011, EN6100-6-4, EN55022 Class A, EN55024, IEC6100-4-2/3/4/5/6/8, EN61000-6-2
- Vibration: IEC60068-2-6
Connector(s)
- Ethernet: 5 x RJ-45
- Power & Relay: 6-pin removable screw terminal block
Dimensions
37 x 140 x 95 mm
Enclosure
IP30, Metal Shell with Solid Mounting Kits
Fault Output
1 Relay Output
Indicators LED
10/100/1000T(X): Link/Activity, Duplex/Collision, P1, P2, P-Fail
Interface(s)
LAN: 10/1000 Base-TX, 10/100 Base-T
Mounting
DIN Rail, Wall
MPN
EKI-2728-BE
MBTF
627,958 hrs
Power
12 ~ 48 VDC Redundant Dual Inputs
Power Consumption
Max. 4.6 W
Security/Protection
- Overload: 1.6A @ 12 VDC (Resetable Fuse)
- Reverse Polarity: Present
Standards
IEEE 802.3, 802.3x, 802.3u, 802.3ab
Storage Specifications
- Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity: 0 ~ 95% (non-condensing)
Temperature Range
- Operating: -10°C to +60°C (14°F to 140°F)
- Humidity: 5% to 95% (non-condensing)
Transmission Distance
Up to 100 m (4-wire CAT5e, CAT6 Cable)
Transmission Speed
Up to 1000 Mbps
