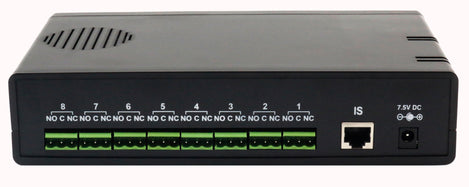

8 Port Sensor Controlled DC Power Relay

$555.00

Leave a review

SKU: GC-AK-8PRB

MPN: 8PRB

Manufacturer: AKCP Co Ltd.

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

This 8 Port sensor relay is a specially designed multiport relay for advanced process control. It is easily controlled by any of AKCP’s extensive selection of sensors and provides automatic responses to sensor status changes. Setup is easy with its built in autosense feature and user friendly web interface.

The 8 Port Sensor Relay can be controlled via the integrated web interface on the securityProbe. In addition, the relay can also be controlled via external computers using the included snmp command line utilities either interactively or programmatically.

The automatic response to sensor changes gives users more flexibility in responding to  environmental alerts. Automatic response eliminates the need for user intervention during alarm conditions, preventing substantial damages for example, by switching on/off crucial equipment.

  • Power Switching
  • On/Off Control for cooling equipment
  • Activating Alarms
  • Process Control
  • Energy Management Systems

Features


  • Relay designed to control switching application over IP through AKCP securityProbe
  • PCB, Connector and Contacts rated up to maximum 5A 30 VDC, 1A 220 VAC
  • Operates from a single +5 V DC Power Supply from the securityProbe
  • Provide 3 positions Terminal Block which includes Normally Open, Normally Close and Common
  • LEDs indicating the status of the Relay and Power Supply
  • Up to 64 (8 relays per RJ45) Relays per securityProbe
  • Full auto-sense including disconnect alarm

Documents and Drivers

Documentation

8 Port Sensor Controlled DC Power Relay Datasheet

Specifications

Communications Label

RJ-45 jack to sensor using UTP CAT5e/6 cable

Connector

  • Connector and Contacts rated up to maximum 5A @ 30 VDC, 5A @ 220 VAC
  • 3 pin Phoenix Connectors : NO, NC, COM

Dimensions

10.83 x 5.43 x 1.80in (275 x 138 x 46mm)

Endurance

Max. Switching Rate:

  •  + 18,000ops./ min. (no load).
  •  + 1,800ops./ min. (rated load).

Expected Mechanical Life: 20 million ops (no load).

Expected Electrical Life: 100,000 ops (rated load).

Indicators LED

LEDs indicating the status of each Relay and Power Supply

Power

7.5VDC 3A (needed if there are more than 1 relay being used) Not included

Power Consumption

Typical 2475.00 mWatt, 495.00 mA

Relay Ratings

  • Contact Material AgCdO
  • Max. Operating Voltage 250 VAC
  • Max. Operating Current 10 Amps
  • Relay Contact Max. Switching Capacity
  •  + 16A@250VAC with Resistive Load,
  •  + 8A@250VAC with Inductive Load (P.F=0.4)

Temperature Range

-40°C to +70°C (-40°F to +158°F)
