$370.00
This product is discontinued and no longer available.
Suggested replacement: 8 Port Sensor Expansion Unit

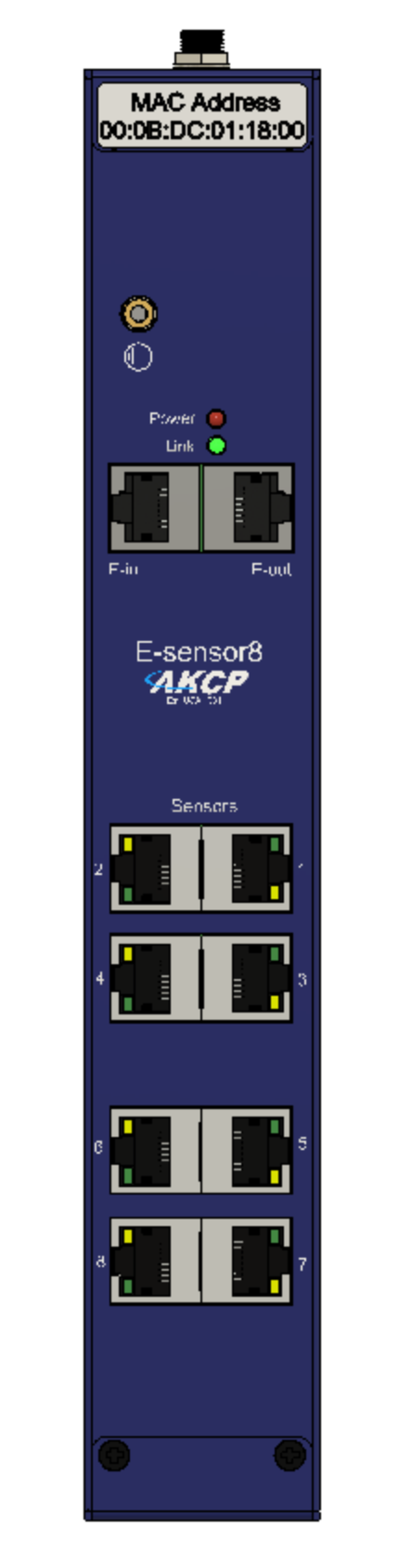

E-sensor8 - 8 Port Sensor Expansion Unit
8 Port Sensor Expansion for SecurityProbe 5E Angle

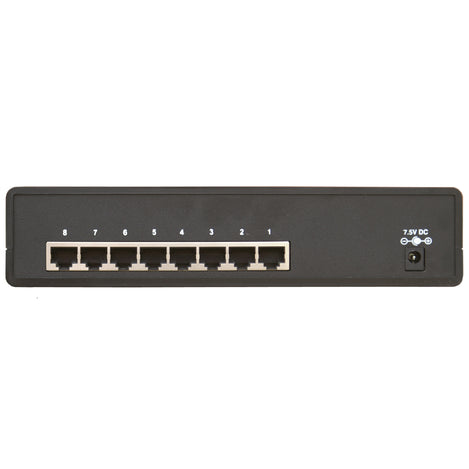

8 Port Sensor Expansion for SecurityProbe 5E Rear

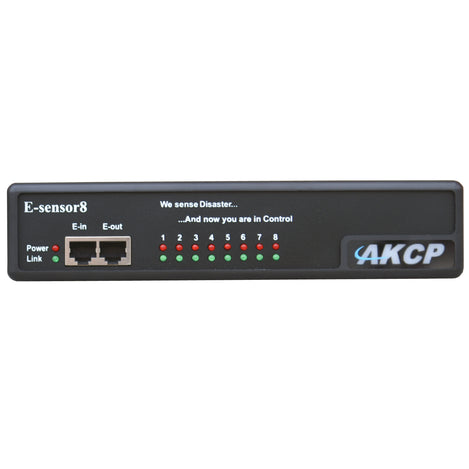

8 Port Sensor Expansion for SecurityProbe 5E Front
E-sensor8 - 8 Port Sensor Expansion Unit
Product Images
E-sensor8 - 8 Port Sensor Expansion Unit
SKU: GC-AK-ESENSOR8
MPN: E-IS8
Manufacturer: AKCP Co Ltd.
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The E-Sensor8 is a sensor port expansion unit that connects to securityProbe controllers or a sensorProbeX+. It is the most cost effective way to add more sensor ports to controllers.
Additional E-Sensor8 units can be daisy chained together and with other E-modules (E-opto16) to provide a maximum of 600 possible sensors on one controller. Up to 1000 ft (300 m) standard CAT5 cable can be used between each device.
Documents and Drivers
Documentation
E-sensor8 Datasheet
AKCP Sensor Selection Summary
Specifications
Data Rate
Expansion Port: 115.2K bps Data Transfer Rate

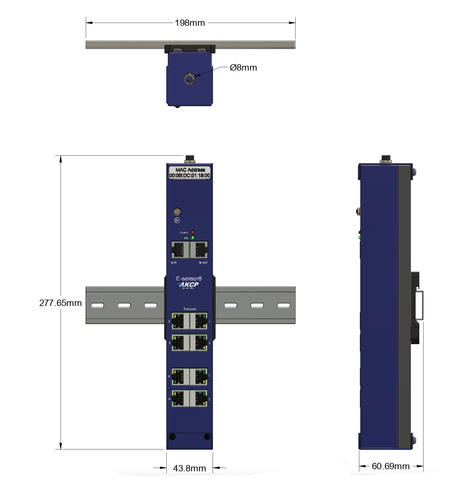

Dimensions
8.5 x 5.43 x 1.80
Indicators LED
- Power
- Expansion Port Connectivity
- Sensor online and threshold status
Input/Output
Inputs:
- 8x RJ-45 ports for connecting AKCP sensors
- 1x RJ-45 expansion module input (E-in)
Outputs:
- Configurable output signals (0VDC/5VDC) on any of the 8 RJ-45 sensor ports
- 1 RJ-45 expansion module output (E-out)
Mounting

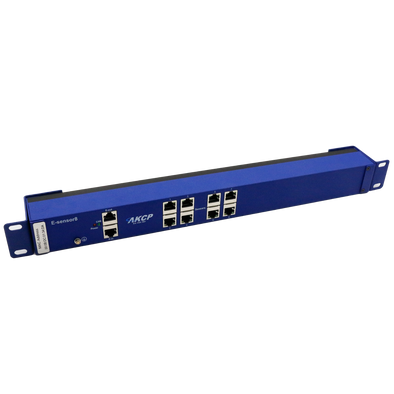

- 1U Rack Mount Standard
- Rack mount brackets included
- Compatible with AKCP’s DIN and rack mount tray
MPN
E-IS8
MBTF
400,000 Hours
Ports
2 RJ-45 Expansion Ports
Power Supply
External 7.0 - 9 VDC 3A Power Adapter
Product Weight
1.8 lbs (0.8 Kg)
Temperature Range
-35°C to 55°C (-31°F to 131°F)
Humidity
Min. 20% – Max. 80% (Non-Condensing)
Voltage
- Input Voltage and Current ratings: 100V~240V - 1A
- Typical: 5.025 Watt, 0.67A
