ATOP EH7506 - 6-Port Managed Fast-Ethernet Switch, SFP, PoE, Profinet Certified: No PoE Ports

$789.00

Leave a review

SKU: GC-ATOP-EH7506-2SFP

MPN: 1P1EH750600002G

Manufacturer: Atop Technologies Inc.

Delivery: Ships within 6-7 weeks
Qualifies for Free shipping to the US

POE Ports

Product Information

Product Description

Authorized North America Distributor Stamp

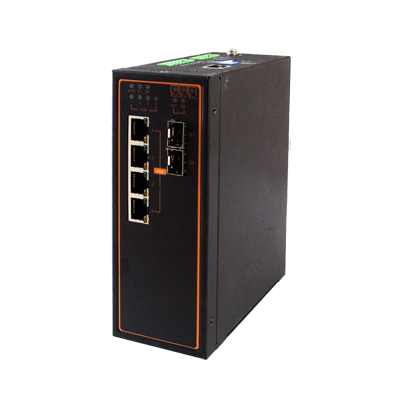

The EH7506 Switch is a highly reliable and fault-tolerant Industrial Managed Fast-Ethernet Switch with a PoE option. It has 6 ports, 4 10/100 BASE-T(X) RJ-45 ports and 2 100/1000 BASE-F(X) SFP ports, with high performance switching capacity.

The network redundant self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution.

The multifunctional web dashboard offers intelligent features such as

  • Quality of service (QoS),
  • Virtual LAN (VLAN),
  • IGMP,
  • Port mirroring, and
  • Security.

To prevent network intrusions, it is necessary to have a good accessing control mechanism that can identify, authenticate and authorize users. Complying with the IEC62443 standard, the EH7506 supports

  • user account,
  • password policy, and
  • authentication interface managements functions.

Designed for Industrial rugged applications, it equips a 5-pin terminal block to provide dual redundant power inputs with Reverse Polarity Protection, and two sets of relay which allows field engineers to build up a stand-alone fault alarm system. Its IP30 housing protection, wide operating temperature of -20 to 70°C and DIN-Rail mounting capacities enable this switch to work within most industrial field applications.

Being Profinet CC-B v2.33 certified, this switch is automation and IoT ready. Profinet allows wired and wireless combinations for an array of connectivity options, providing a more effective backbone for your automation operations.


Order Summary



SKU

Ethernet

PoE Ports

SFP Ports

Manufacturer Part # (MPN)

GC-ATOP-EH7506-2SFP 4 0
2
1P1EH750600002G
GC-ATOP-EH7506-4POE-2SFP 4 2 1P1EH750600001G

Features

  • 4 10/100 BASE-T(X) ports and 2 10/100/1000 BASE-T(X) Combo ports
  • 4 802.3af or 802.3at compliant PoE ports
  • ERPS Ring (recovery time < 20ms @ 40 switches), STP/RSTP for network redundancy
  • Remote management over Web browser, Telnet console, serial console, and Windows Utility
  • CE/FCC/UL and NEMA TS-2 for Traffic control applications certified
  • Profinet CC-B v2.33 certified and GSDML file provided
  • Security features based on IEC62443-4-2

Documents and Drivers

Documentation

ATOP EH7506 - 6-Port Managed Fast-Ethernet Switch Datasheet

ATOP EH7506 - 6-Port Managed Fast-Ethernet Switch User Manual

ATOP EH7506 - 6-Port Managed Fast-Ethernet Switch Hardware Installation Guide

ATOP Industrial Ethernet Switches Product Selection Guide

Specifications

Connector(s)

Removable 5-pin Terminal Block for power input

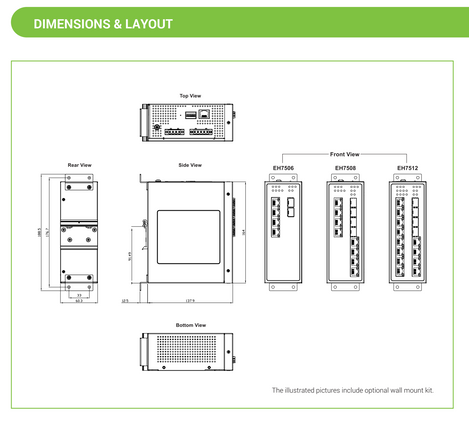

Dimensions

60.3mm x 137.9mm x 164mm

High Power Relay Outlet

2 relay outputs with current carrying capacity of 2A @30VDC

Housing

IP30 protection, metal housing

Humidity

5%~95%, 55°C (Non-condensing)

Indicators LED

PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE

Input Current

  • Max. 1.5A @ 18VAC
  • Max. 2.0A @ 9VDC (without PD)
  • Max. 3.2A @ 45VDC (Support up to 8 ports at 15.4W per PoE port)
  • Max. 5.5A @ 51VDC (Support up to 8 ports at 30W per PoE port)

Input Voltage

  • 9-48 VDC or 18~30VAC for Non-PoE models
  • 45-57 VDC for 802.3af mode
  • 51-57 VDC for 802.3at mode

Mounting

DIN-Rail

MPN

1P1EH750600002G, 1P1EH750600001G

Ports

  • RJ45 Ports: 10/100/1000BASE-T(X) or 10/100 BASE-T(X) auto negotiation speed
  • Fiber Ports: 100BASE-FX / 1000BASE-X SFP slot

Product Weight

approx 1.2 kg (Max.)

Switch Option

DIP Switches: Ring Control

Temperature Range

  • Operating: -20°C~70°C (-4°F~158°F)
  • Storage: -40°C~85°C (-40°F~185°F)
