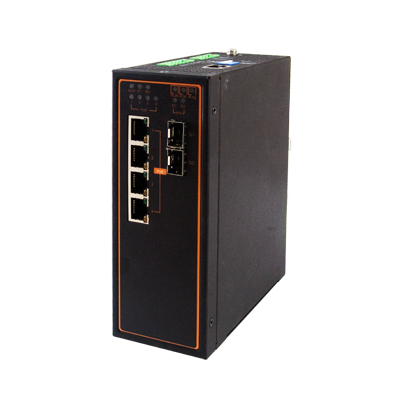

ATOP EH7506 - 6-Port Managed Fast-Ethernet Switch, SFP, PoE, Profinet Certified
ATOP EH7506 - 6-Port Managed Fast-Ethernet Switch, SFP, PoE, Profinet Certified
Product Images
ATOP EH7506 - 6-Port Managed Fast-Ethernet Switch, SFP, PoE, Profinet Certified: No PoE Ports
$789.00
SKU: GC-ATOP-EH7506-2SFP
MPN: 1P1EH750600002G
Manufacturer: Atop Technologies Inc.
POE Ports
-
$789.00
-
$849.00
We Have You Covered
Product Information
Product Description
The EH7506 Switch is a highly reliable and fault-tolerant Industrial Managed Fast-Ethernet Switch with a PoE option. It has 6 ports, 4 10/100 BASE-T(X) RJ-45 ports and 2 100/1000 BASE-F(X) SFP ports, with high performance switching capacity.
The network redundant self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution.
The multifunctional web dashboard offers intelligent features such as
- Quality of service (QoS),
- Virtual LAN (VLAN),
- IGMP,
- Port mirroring, and
- Security.
To prevent network intrusions, it is necessary to have a good accessing control mechanism that can identify, authenticate and authorize users. Complying with the IEC62443 standard, the EH7506 supports
- user account,
- password policy, and
- authentication interface managements functions.
Designed for Industrial rugged applications, it equips a 5-pin terminal block to provide dual redundant power inputs with Reverse Polarity Protection, and two sets of relay which allows field engineers to build up a stand-alone fault alarm system. Its IP30 housing protection, wide operating temperature of -20 to 70°C and DIN-Rail mounting capacities enable this switch to work within most industrial field applications.
Being Profinet CC-B v2.33 certified, this switch is automation and IoT ready. Profinet allows wired and wireless combinations for an array of connectivity options, providing a more effective backbone for your automation operations.
Order Summary
SKU |
Ethernet |
PoE Ports |
SFP Ports |
Manufacturer Part # (MPN) |
---|---|---|---|---|
GC-ATOP-EH7506-2SFP | 4 | 0 |
2 |
1P1EH750600002G |
GC-ATOP-EH7506-4POE-2SFP | 4 | 4 | 2 | 1P1EH750600001G |
Features
- 4 10/100 BASE-T(X) ports and 2 10/100/1000 BASE-T(X) Combo ports
- 4 802.3af or 802.3at compliant PoE ports
- ERPS Ring (recovery time < 20ms @ 40 switches), STP/RSTP for network redundancy
- Remote management over Web browser, Telnet console, serial console, and Windows Utility
- CE/FCC/UL and NEMA TS-2 for Traffic control applications certified
- Profinet CC-B v2.33 certified and GSDML file provided
- Security features based on IEC62443-4-2
Documents and Drivers
Documentation
ATOP EH7506 - 6-Port Managed Fast-Ethernet Switch Datasheet
ATOP EH7506 - 6-Port Managed Fast-Ethernet Switch User Manual
ATOP EH7506 - 6-Port Managed Fast-Ethernet Switch Hardware Installation Guide
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications
Connector(s)
Removable 5-pin Terminal Block for power input
Dimensions
60.3mm x 137.9mm x 164mm
High Power Relay Outlet
2 relay outputs with current carrying capacity of 2A @30VDC
Housing
IP30 protection, metal housing
Humidity
5%~95%, 55°C (Non-condensing)
Indicators LED
PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE
Input Current
- Max. 1.5A @ 18VAC
- Max. 2.0A @ 9VDC (without PD)
- Max. 3.2A @ 45VDC (Support up to 8 ports at 15.4W per PoE port)
- Max. 5.5A @ 51VDC (Support up to 8 ports at 30W per PoE port)
Input Voltage
- 9-48 VDC or 18~30VAC for Non-PoE models
- 45-57 VDC for 802.3af mode
- 51-57 VDC for 802.3at mode
Mounting
DIN-Rail
MPN
1P1EH750600002G, 1P1EH750600001G
Ports
- RJ45 Ports: 10/100/1000BASE-T(X) or 10/100 BASE-T(X) auto negotiation speed
- Fiber Ports: 100BASE-FX / 1000BASE-X SFP slot
Product Weight
approx 1.2 kg (Max.)
Switch Option
DIP Switches: Ring Control
Temperature Range
- Operating: -20°C~70°C (-4°F~158°F)
- Storage: -40°C~85°C (-40°F~185°F)
