CAN DC Power Input Cable for CANedge

$48.95

Leave a review

SKU: GC-CSS-DB9-DC-SPLITTER

MPN: #72 DB9-DC Splitter

Manufacturer: CSS Electronics ApS

Stock Status: In stock

Delivery: Ships same or next business day
Free shipping to the continental US on orders over $100

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

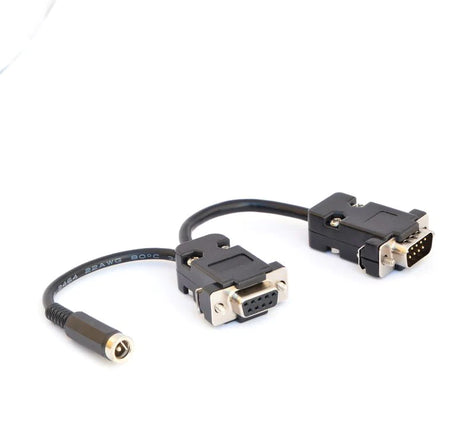

Log CAN bus data with an external power supply.  With this DB9-to-DB9/DC power splitter, you'll be able to power the CANedge/CLX000 CAN logger via a

  • power outlet,
  • battery pack,
  • vehicle battery, or
  • cigarette receptacle.

The DC female connector is a standard 5.5 mm (ID, inner diameter) x 2.1 mm (CPD, center pin diameter) so fits most standard power supply options.

The adaptor is great for test setups, machine logging or vehicles where no power is provided by the DB9 connector or the CAN bus power supply isn't wanted.




Features


  • EASILY POWER: DC connector offers plug & play power source options
  • CONVENIENT: Power your logger by your desk for e.g. ECU development
  • MOBILE: Use your logger across multiple assets on-the-go via battery packs
  • COMPACT: The DB9-DB/DC adapter is compact, light-weight and robust
  • STANDARD DB9: Works with most CAN adapters (CiA 303-1 compatible pinouts)

Specifications

Connector(s)

9-pin D-sub (DB9) male to female

Compatibility

High Speed CAN Bus (ISO 11898-2) incl. CAN FD, SAE J1939, OBD2, NMEA, CANopen

Dimensions

  • Adapter Cable Length: 15 cm (5.9 in) (both cables)
  • Adapter DC Connector: 5.5 mm (.22in) (ID) x 2.1 mm (.08 in)(CPD)
  • 22 AWG (0.50 mm2)

Pins

In accordance with CiA 303-1

Temperature Range

-20°C to +80°C (-4°F to +176°F)

Weight

30 Grams
