CAN PCI Adapter with 1 or 2 Channels (PCAN-PCI): 1 Channel / No Isolation

$274.00

Leave a review

SKU: GC-CAN-PCI-1

MPN: IPEH-002064

Manufacturer: PEAK-System

Stock Status: In Stock

Delivery: Ships same or next business day
2-Channel ISO estimated ship date Sep 8
Qualifies for Free shipping

Best price guaranteed!* Learn more.


Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

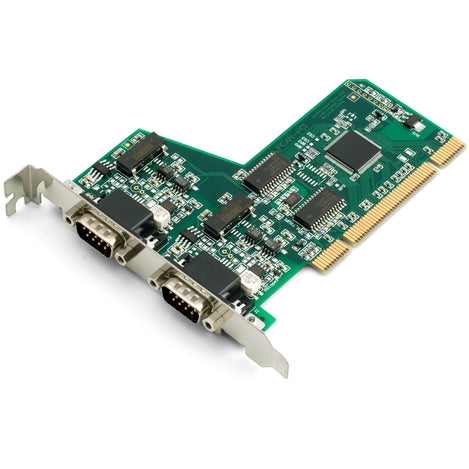

The CAN PCI cards enable PCs with PCI slots to interface with a CAN network(s).

The PCI card is available as a single or dual channel version with or without 500V optical isolation. The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.

Order Summary



SKU

Select Channels

Isolation/No isolation

Manufacturer Part # (MPN)

GC-CAN-PCI-1 1 Channel No Isolation IPEH-002064
GC-CAN-PCI-1-ISO 1 Channel 500V Isolated IPEH-002066
GC-CAN-PCI-2 2 Channels No Isolation IPEH-002065
GC-CAN-PCI-2-ISO 2 Channels 500V Isolated IPEH-002067



Features

  • CAN PCI card
  • Connection cable inc. D-Sub plug
  • PCAN-View CAN monitor for Windows®
  • PCAN-Basic programming interface consisting of interface DLLs, examples, and header files for all conventional programming languages
  • Device drivers for Windows®
  • Linux drivers available free of charge
  • Manual in PDF format

Documents and Drivers

Documentation

PCAN-PCI User Manual View (PDF)

Downloads

PCAN-PCI Windows Drivers, PCAN-VIEW, PCAN-BASIC, PCAN-LIGHT programming APIs Download (ZIP)
Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway
Download (ZIP)
Device Driver Setup - Outdated Windows Versions PEAK-System (Website)

PEAK-System PCAN DOWNLOAD SUPPORT

Packages Software APIs Documentation

Specifications

BAUD RATE

CAN: max. 1 Mbit/s

CERTIFICATIONS

CE, RoHS

CONNECTOR(S)

10-pin Upright Connector

CONTROLLER(S)

CAN: NXP / Philips SJA1000T

DIMENSIONS

93 x 120 mm

EMC DIRECTIVE

  • EN 55024:2003-10
  • EN 55022:2007-04
  • EC directive 89/336/EEC

INTERFACE(S)

  • PC: PCI bus (Rev 2.2) PC98 32 bit PCI-bus, for 3.3V and 5V systems
  • CAN: ISO 11898-2, complies with CiA-recommendation DS 102

IO AND IRQ

automatically assigned via "plug n play"

ISOLATION

500 VDC (optional)

MPN

IPEH-002064, IPEH-002065, IPEH-002066, IPEH-002067

PINOUT

C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)

POWER CONSUMPTION

  • 1 channel max. 150 mA
  • 2 channel max 280 mA
  • 1 channel isolated max 260 mA
  • 2 channel isolated max 490 mA

PRODUCT WEIGHT

54, 63, 55, 65 g

SOFTWARE

  • Driver: Supports Windows 11 & 10
  • Tools: PCAN-View for Windows®

SPECIFICATIONS

CAN: 2.0A (Standard format) and 2.0B (extended format)

STORAGE SPECIFICATIONS

Temperature: -40°C to +125°C

TEMPERATURE RANGE

  • Operating: -40°C to +85°C
  • Humidity: 15% to 90% (non-condensing)

TRANSCEIVER

CAN: NXP / Philips PCA82C251
