CANedge1 with GNSS/IMU
CANedge1 with GNSS/IMU
Product Images
CANedge1 with GNSS/IMU: 8 GB SD Card
$519.95
SKU: GC-CSS-CANEDGE1-8GB-GNSS/IMU
MPN: D016
Manufacturer: CSS Electronics ApS
Stock Status: In stock
Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US
SD Card
-
$519.95
-
$589.95
We Have You Covered
Skip To Footer
Product Information
Product Description

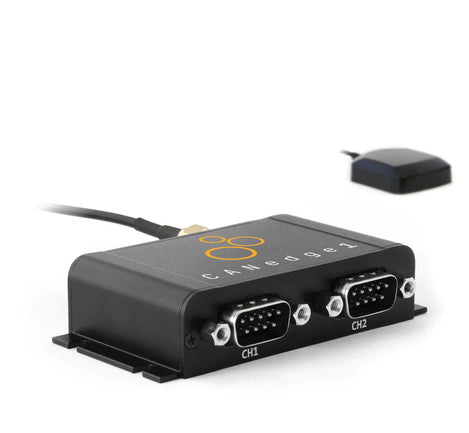

The 2x CAN/LIN logger records timestamped CAN data (CAN/CAN FD) to the extractable 8 GB industrial SD card.
It's easy-to-use: Simply connect the device to your CAN bus to start logging raw CAN data. Next, extract the data and process it using 100% free open source software/API tools - includes. file format conversion, DBC decoding and plot visualization.
The device includes GNSS/IMU, adding data such as position, speed, altitude, acceleration and more.
Ideal for recording CAN/LIN data over weeks, months or years - e.g. for diagnostics, OEM development or legal/warranty purposes.
Order Summary
SKU |
SD Card
|
Manufacturer Part # (MPN) |
|---|---|---|
| GC-CSS-CANEDGE1-8GB-GNSS/IMU | 8 GB SD Card |
#182 CANedge1 8GB + GNSS/IMU |
| GC-CSS-CANEDGE1-32GB-GNSS/IMU | 32 GB SD Card | #184 CANedge1 32GB + GNSS/IMU |
Features
- PLUG & PLAY: Log data out-the-box. Standalone - no PC required. Power via CAN connector
- PRO SPECS: Extractable 8-32 GB SD. 2xCAN/LIN. CAN FD. Zero data loss. 50 µs RTC. Error frames. MF4
- COMPACT: Only 8 x 5 x 2 CM. 100G. Aluminium enclosure. 4 LEDs. Configurable 5V power out (CH2)
- CONFIGURABLE: Advanced filters. Transmit lists. Triggers. Cyclic logging. Silent mode. Encryption
- GNSS + 3D IMU: Built-in GNSS/IMU. 3X accuracy via sensor fusion. Position, speed, acceleration & more
- INTEROPERABLE: Free & open source software/API. MF4 to ASC/CSV. DBC support. Python. Dashboards
Documents and Drivers
Documentation
CANedge1 with GNSS/IMU Product Manual
CANedge1 with GNSS/IMU Datasheet
CSS Datalogger Comparison - CL1000, CL2000 & CANedge Series
Specifications
Accuracy
- Position: 2.0 m CEP (Circular Error Probable)
- Heading: 0.3 deg | Pitch: 0.4 deg | Roll: 0.6 deg (68% at 30 m/s)
- Velocity: 0.08 m/s
Certifications
CE, FCC, IC, KC and RoHS
Channels
- 2 x CAN channels (incl. CAN FD support)
- 2 x LIN channels
Connector(s)
2 x Standard D-sub 9 (DB9) connectors
Dimensions
Compact aluminum enclosure: 75 x 47 x 20 mm (2.95 x 1.85 x .79 in)
Indicators LED
Logger status via 4 external LEDs: Power, CH1, CH2, Memory
Input
Supply: +7V to +32V DC via the Channel 1 DB9 (e.g. via CAN connector power pin)
Module
Professional-grade u-blox NEO-M9V sensor module (92-channel) with built-in gyroscope and accelerometer
Power Consumption
Extremely low (~1 W) - no risk of battery drainage
Protocols
Log raw data from CAN based protocols (J1939/FMS, CANopen, NMEA 2000, OBD2, CAN FD, UDS, ...)
Real Time Clock
CAN frames are date & timestamped with 50 microsecond resolution (battery backup)
Standards
- ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 4 Mbit/s payload rate)
- Compliant with LIN 2.0 up to 20 Kbit/s (support for Classic & Enhanced checksum format)
Temperature Range
-25°C to +70°C (-13°F to +158°F)
Weight
100 Grams
